SPECIFICATIONS
FASTENER TIGHTENING SPECIFICATIONS

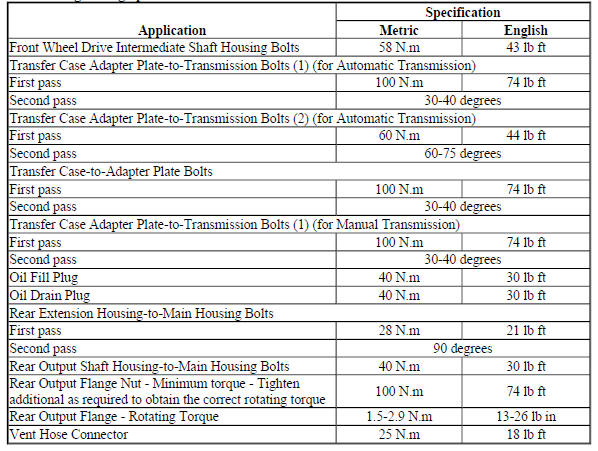

Fastener Tightening Specifications
.jpg)
APPROXIMATE FLUID CAPACITIES
Approximate Fluid Capacities
.jpg)
ADHESIVES, FLUIDS, LUBRICANTS, AND SEALERS

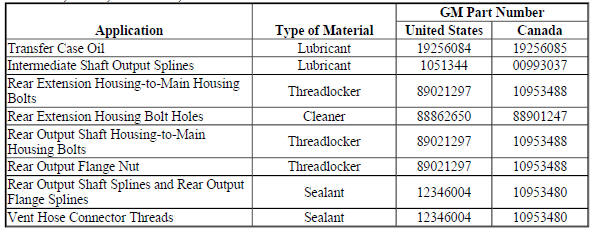

Adhesives, Fluids, Lubricants, and Sealers
.jpg)
COMPONENT LOCATOR

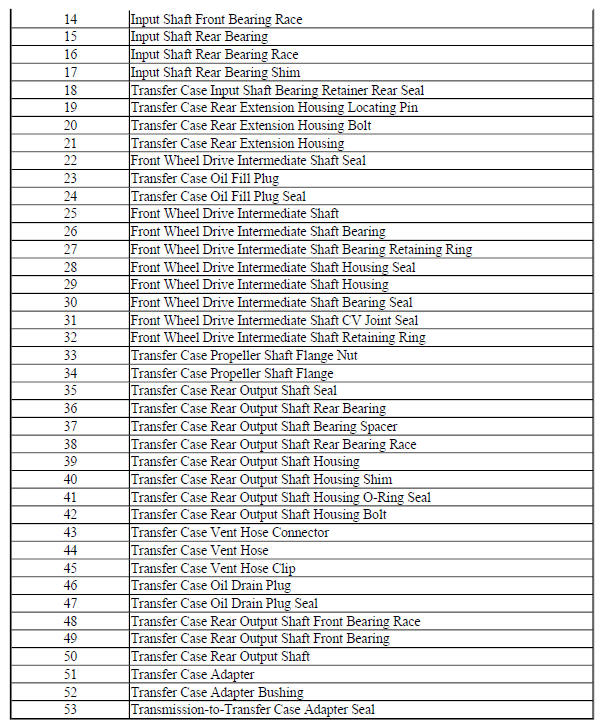

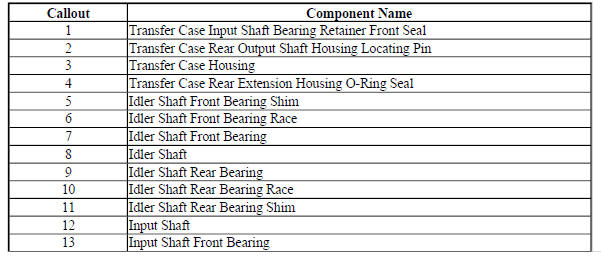

TRANSFER CASE DISASSEMBLED VIEW
.gif)

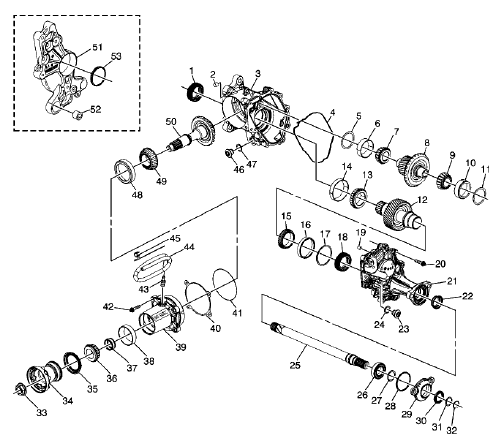

Fig. 1: Transfer Case Components
.jpg)
.jpg)
- Diagnostic information and procedures
- Repair instructions - on vehicle
- Repair instructions - off vehicle
- Description and operation
