Chevrolet Trax: Steering Wheel Adjustment
.gif)

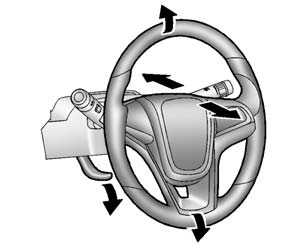

To adjust the steering wheel:
- Pull the lever down.
- Move the steering wheel up, down, forward, and backward.
- Pull the lever up to lock the steering wheel in place.
Do not adjust the steering wheel while driving.

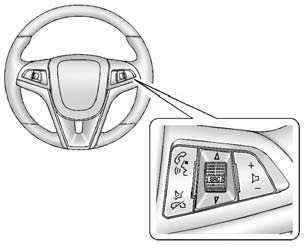

Steering Wheel Controls
.gif)
Some audio steering wheel controls could differ depending on the vehicle's options. Some audio controls can be adjusted at the steering wheel.
.gif)
(Press to Talk): For vehicles
with Bluetooth or OnStar, press to
interact with those systems. See
Bluetooth (Voice Recognition) or Bluetooth
(Infotainment Controls) or Bluetooth (Overview)
or OnStar (if
equipped).
(Mute/End Call): Press to
decline an incoming call, to end
speech recognition, or to end a
current call. Press to silence the
vehicle speakers while using the
infotainment system. Press again to
turn the sound on.
For vehicles with OnStar or Bluetooth systems, press to reject an incoming call, or end a current call.
.gif)
SRC
.gif)
(Source): Press to select
an audio source.
Toggle up or down to select the next or previous favorite radio station, CD/MP3 track, USB file, iPod/ iPhone song or Bluetooth music.
Toggle and hold up or down to fast forward or reverse the radio stations, CD/MP3 tracks, USB files, iPod/iPhone songs or Bluetooth music.
+.gif)
− (Volume): Press + or − to
increase or decrease the volume.
Horn
Press .gif)
on the steering wheel pad
to sound the horn.
