Chevrolet Trax: Compass

Chevrolet Trax (2013-2022) Owner's Manual / Instruments and Controls / Controls / Compass

The vehicle may have a compass display in the Driver Information Center (DIC).

Setting the Compass Zone

Under certain circumstances, such as during a long trip or moving to a new area, the compass zone will need to be reset. If the compass is not set to the correct zone, it may give false readings. The compass zone should be set to the area in which the vehicle is currently traveling.

Use the DIC buttons to set the compass zone:

  1. While the vehicle is in P (Park), press the MENU button to display the DIC menu.
  2. Press and hold SET/CLR while the Set Area display is active.

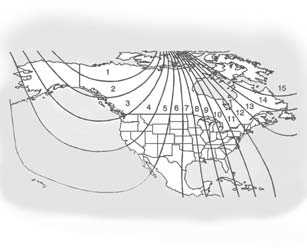

Setting the Compass Zone

  1. Find the vehicle's current location and zone number on the map. Zones 1 through 15 are available.
  2. Use to change to the correct zone number.
  3. Press SET/CLR to confirm the setting.
