Chevrolet Trax: Rear side door window garnish molding replacement (encore)

Chevrolet Trax (2013-2022) Workshop Manual / Accessories & Equipment / Interior Trim and Paneling / Interior Trim and Paneling - Repair instructions / Rear side door window garnish molding replacement (encore)

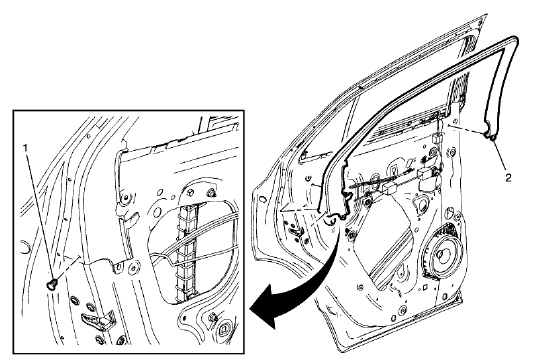

Fig. 9: Rear Side Door Window Garnish Molding
Fig. 9: Rear Side Door Window Garnish Molding

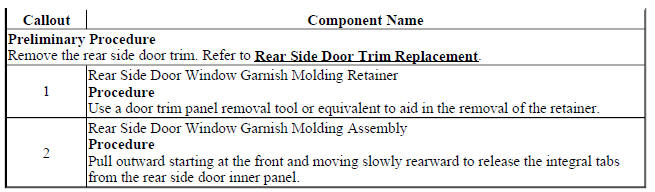

Rear Side Door Window Garnish Molding Replacement (Encore)

Rear Side Door Window Garnish Molding Replacement (Encore)

REAR SIDE DOOR WINDOW GARNISH MOLDING REPLACEMENT (TRAX)

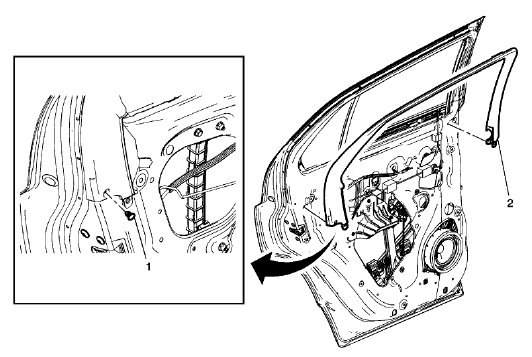

Fig. 10: Rear Side Door Window Garnish Molding
Fig. 10: Rear Side Door Window Garnish Molding

Rear Side Door Window Garnish Molding Replacement (Trax)

Rear Side Door Window Garnish Molding Replacement (Trax)

Rear Side Door Window Garnish Molding Replacement (Trax)

FRONT SIDE DOOR WINDOW GARNISH MOLDING REPLACEMENT

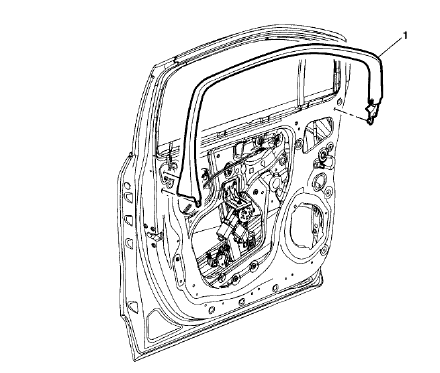

Fig. 11: Front Side Door Window Garnish Molding
Fig. 11: Front Side Door Window Garnish Molding

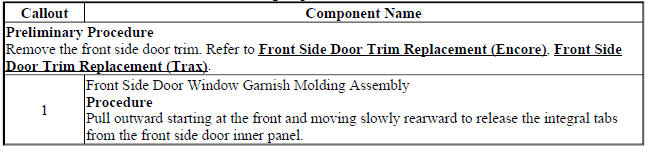

Front Side Door Window Garnish Molding Replacement

Front Side Door Window Garnish Molding Replacement
