Chevrolet Trax: Windshield garnish molding replacement (encore)

Chevrolet Trax (2013-2022) Workshop Manual / Accessories & Equipment / Interior Trim and Paneling / Windshield garnish molding replacement (encore)

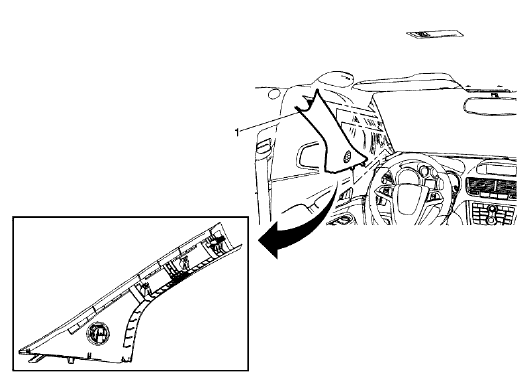

Fig. 22: Windshield Garnish Molding Assembly
Fig. 22: Windshield Garnish Molding Assembly

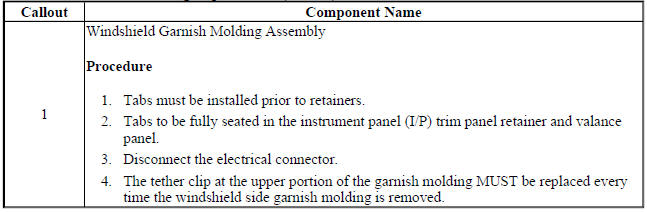

Windshield Garnish Molding Replacement (Encore)

Windshield Garnish Molding Replacement (Encore)

WINDSHIELD GARNISH MOLDING REPLACEMENT (TRAX)

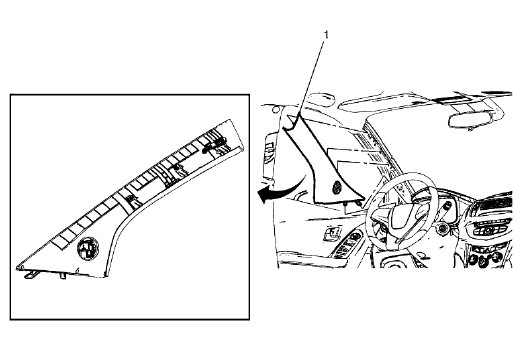

Fig. 23: Windshield Garnish Molding Assembly
Fig. 23: Windshield Garnish Molding Assembly

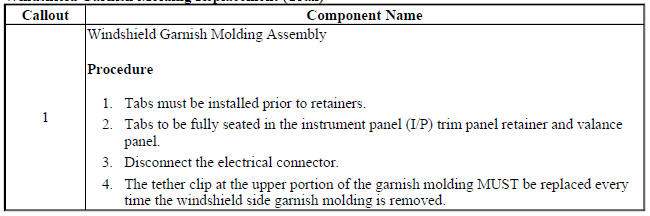

Windshield Garnish Molding Replacement (Trax)

Windshield Garnish Molding Replacement (Trax)

CENTER PILLAR UPPER TRIM PANEL REPLACEMENT (ENCORE)

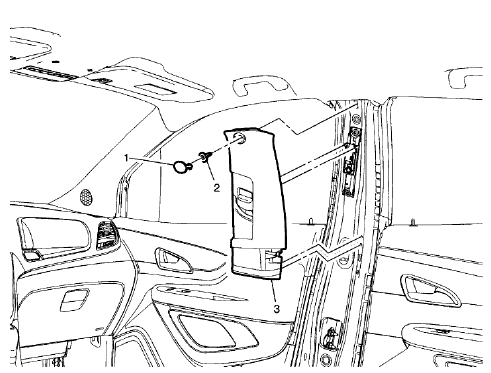

Fig. 24: Center Pillar Upper Trim Panel Assembly
Fig. 24: Center Pillar Upper Trim Panel Assembly

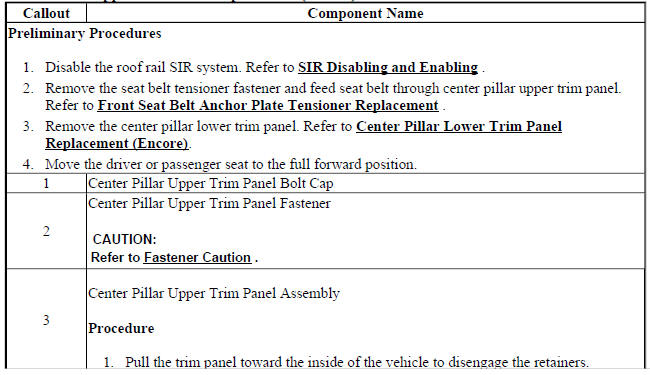

Center Pillar Upper Trim Panel Replacement (Encore)

Center Pillar Upper Trim Panel Replacement (Encore)

Center Pillar Upper Trim Panel Replacement (Encore)

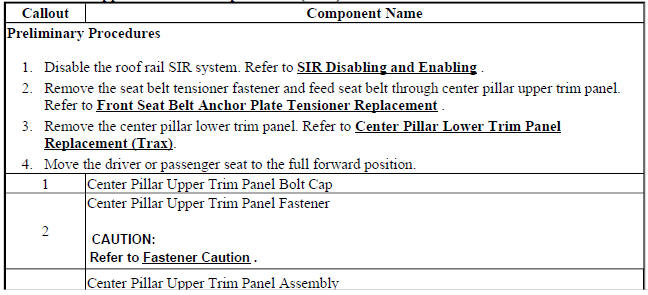

CENTER PILLAR UPPER TRIM PANEL REPLACEMENT (TRAX)

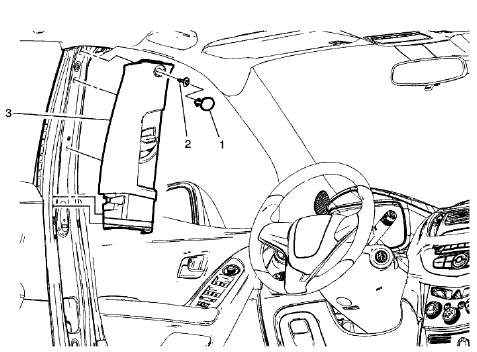

Fig. 25: Center Pillar Upper Trim Panel Assembly
Fig. 25: Center Pillar Upper Trim Panel Assembly

Center Pillar Upper Trim Panel Replacement (Trax)

Center Pillar Upper Trim Panel Replacement (Trax)

Center Pillar Upper Trim Panel Replacement (Trax)

CENTER PILLAR LOWER TRIM PANEL REPLACEMENT (ENCORE)

Fig. 26: Center Pillar Lower Trim Panel
Fig. 26: Center Pillar Lower Trim Panel

Center Pillar Lower Trim Panel Replacement (Encore)

Center Pillar Lower Trim Panel Replacement (Encore)

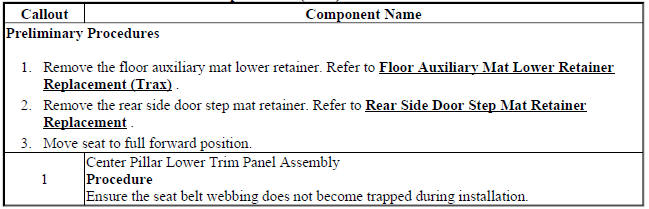

CENTER PILLAR LOWER TRIM PANEL REPLACEMENT (TRAX)

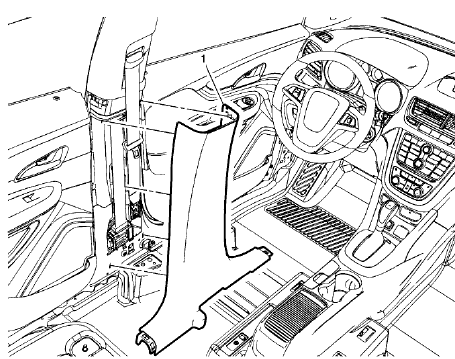

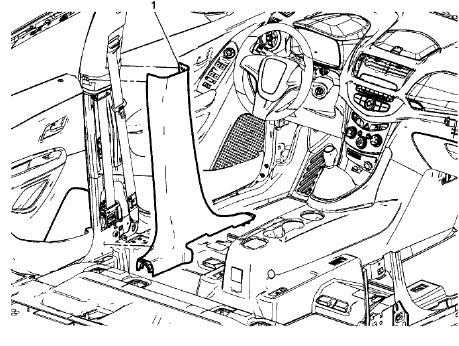

Fig. 27: Center Pillar Lower Trim Panel
Fig. 27: Center Pillar Lower Trim Panel

Center Pillar Lower Trim Panel Replacement (Trax)

Center Pillar Lower Trim Panel Replacement (Trax)
