Chevrolet Trax: Sunshade replacement (encore)

Chevrolet Trax (2013-2022) Workshop Manual / Accessories & Equipment / Interior Trim and Paneling / Sunshade replacement (encore)

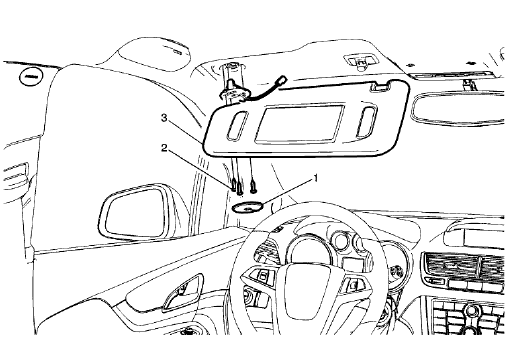

Fig. 18: Sunshade Assembly
Fig. 18: Sunshade Assembly

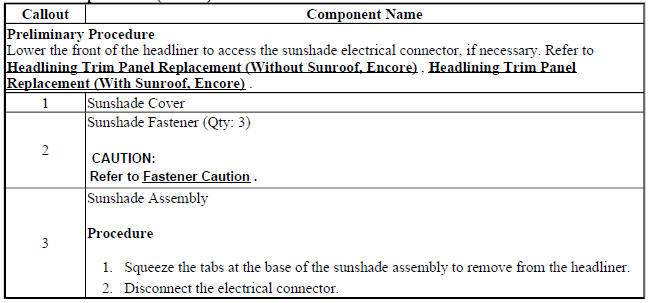

Sunshade Replacement (Encore)

Sunshade Replacement (Encore)

SUNSHADE REPLACEMENT (TRAX)

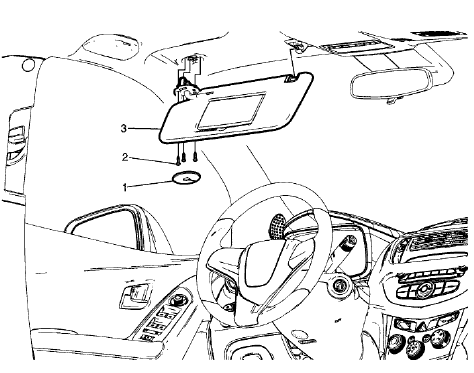

Fig. 19: Sunshade Assembly
Fig. 19: Sunshade Assembly

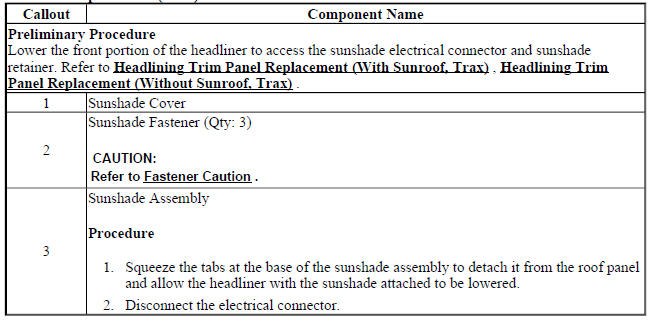

Sunshade Replacement (Trax)

Sunshade Replacement (Trax)

SUNSHADE SUPPORT REPLACEMENT (ENCORE)

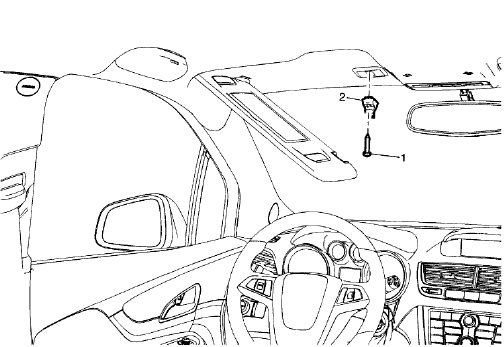

Fig. 20: Sunshade Support Assembly
Fig. 20: Sunshade Support Assembly

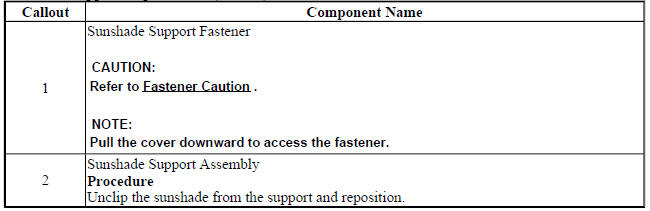

Sunshade Support Replacement (Encore)

Sunshade Support Replacement (Encore)

SUNSHADE SUPPORT REPLACEMENT (TRAX)

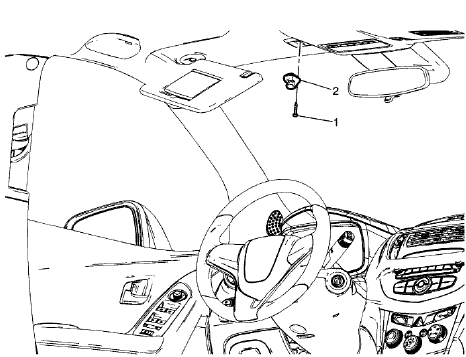

Fig. 21: Sunshade Support Assembly
Fig. 21: Sunshade Support Assembly

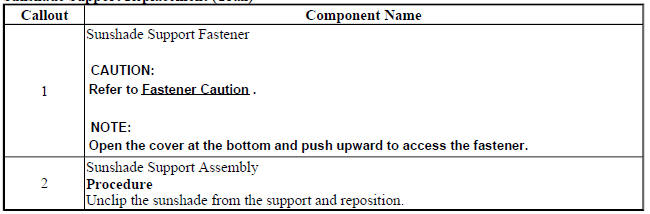

Sunshade Support Replacement (Trax)

Sunshade Support Replacement (Trax)
