Chevrolet Trax: Rear seat center belt replacement

Chevrolet Trax (2013-2022) Workshop Manual / HVAC & Restraints / Seat Belts / Repair instructions / Rear seat center belt replacement

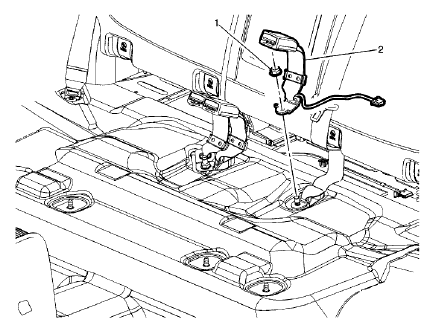

Fig. 7: Rear Seat Center Belt
Fig. 7: Rear Seat Center Belt

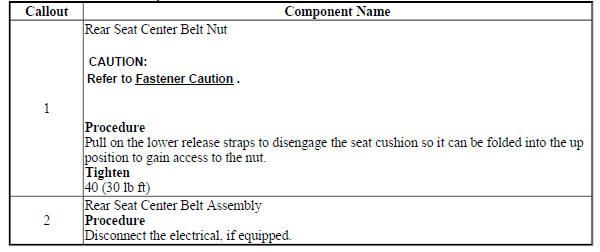

Rear Seat Center Belt Replacement

Rear Seat Center Belt Replacement

FRONT SEAT BELT GUIDE ADJUSTER REPLACEMENT

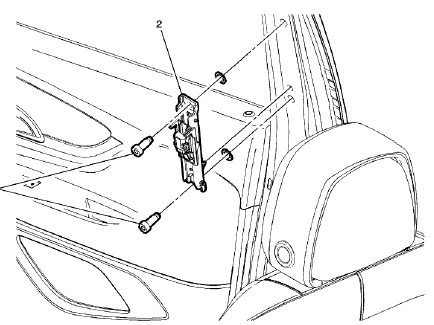

Fig. 8: Front Seat Belt Guide Adjuster
Fig. 8: Front Seat Belt Guide Adjuster

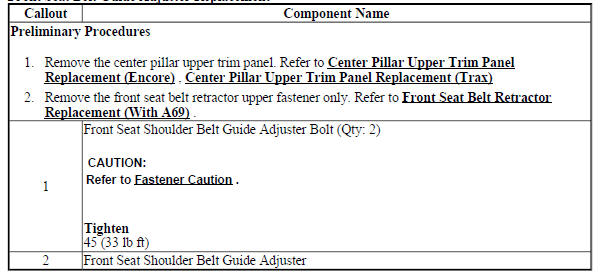

Front Seat Belt Guide Adjuster Replacement

Front Seat Belt Guide Adjuster Replacement

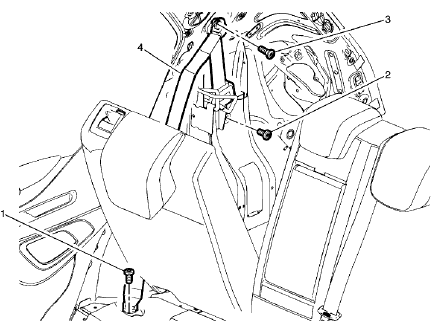

REAR SEAT BELT RETRACTOR REPLACEMENT

REAR SEAT BELT RETRACTOR REPLACEMENT

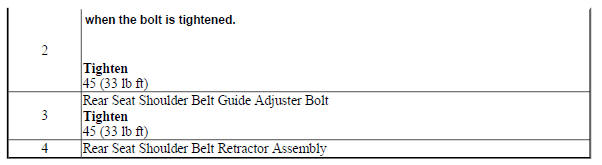

Rear Seat Belt Retractor Replacement

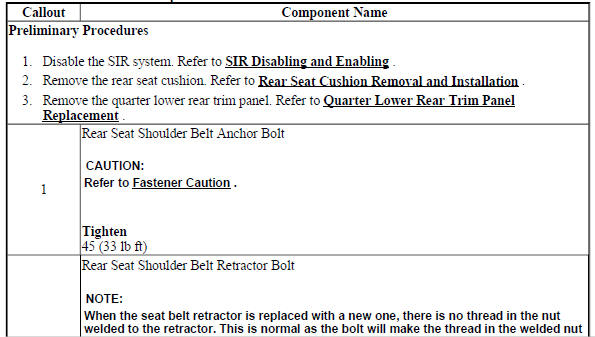

Rear Seat Belt Retractor Replacement

Rear Seat Belt Retractor Replacement
