Chevrolet Trax Owners & Service Manuals

Chevrolet Trax: Overview (AM-FM Radio)

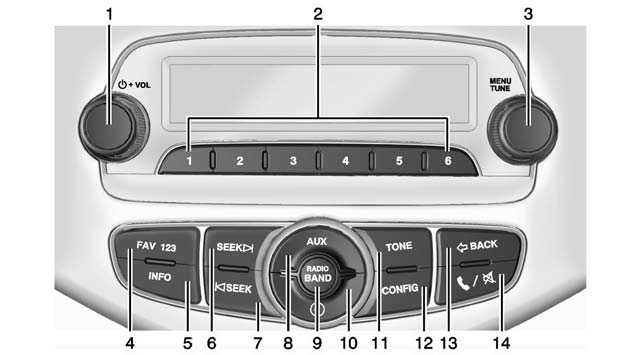

Overview (AM-FM Radio)

  1. /VOL (Power/Volume)
  • Press to turn the system on and off.
  • Turn to adjust the volume.
  1. Preset Buttons 1−6
  • Press and hold to store a station.
  • Press to go to a preset favorite station.
  1. MENU/TUNE
  • Press to open menus and select menu items.
  • Turn to highlight menu items or to set values while in a menu.
  • Turn to manually select radio stations.
  1. FAV 123 (Favorites)
  • Press to go to a favorite page.
  1. INFO (Information)
  • Press to view current radio station and current song information.
  1. SEEK (Next)
  • Press to seek the next station.
  • Press and hold to fast forward through the currently playing song on an external audio device.
  1. SEEK (Previous)
  • Press to seek the previous station.
  • Press and hold to reverse through the currently playing song on an external audio device.
  1. AUX (Auxiliary)
  • Press to access the auxiliary input device.
  1. RADIO/BAND
  • Press to select AM, FM, or band.
  • Press to select the radio when listening to a different audio source.
  1. (Clock)
  • Press to enter the Time and Date Settings menu.
  1. TONE
  • Press to open the Tone menu.
  1. CONFIG (Configuration)
  • Press to open the System Configuration menu.
  1. BACK
  • Press to go to the previous screen.
  • Press to cancel entered content.
  1. (Phone/Mute)
  • Press to open the Phone main menu.
  •  Press to mute the audio system.
