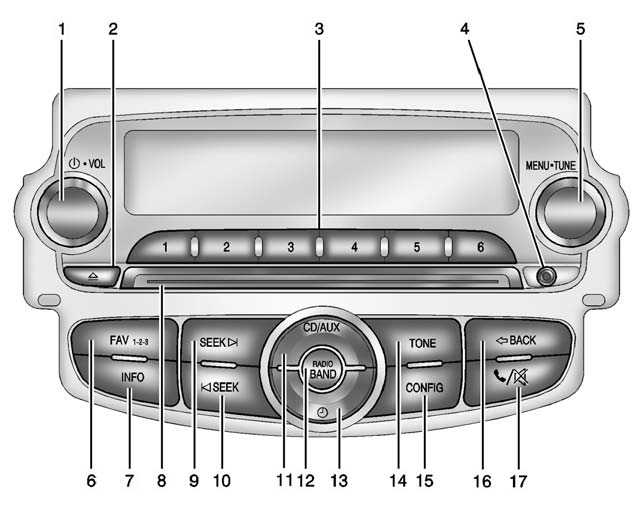

Chevrolet Trax: Overview (Radio with CD/USB)

1. /VOL (Power/Volume)

• Turns the system on or off and adjusts the volume.

2. (Eject)

• Removes a disc from the CD slot.

3. Preset Buttons 1−6

• Radio: Saves and selects favorite stations.

4. AUX Port

• 3.5 mm (1/8 in) connection for external devices.

5. MENU/TUNE

• Radio: Manually selects radio stations.
• CD: Selects tracks.

6. FAV 1-2-3 (Favorites)

• Radio: Opens the favorites list.

7. INFO (Information)

• Radio: Shows available information about the current station.
• CD: Shows available information about the current track.

8. CD Slot
9. SEEK

• Radio: Seeks the next station.
• CD: Selects the next track or fast forwards within a track.

10. SEEK

• Radio: Seeks the previous station.
• CD: Selects the previous track or rewinds within a track.

11. CD/AUX

• Selects the CD player or an external audio source.

12. RADIO/BAND

• Changes the band while listening to the radio.
• Selects the radio when listening to a different audio source.

13. (Clock Menu)

• Opens the Clock menu.

14. TONE

• Opens the Tone menu.

15. CONFIG (Configuration)

• Opens the Configuration menu.

16. BACK

• Menu: Moves one level back.
• Character Input: Deletes the last character.

17.  (Phone/Mute)

• Opens the Phone menu.
• Mutes the audio system.
