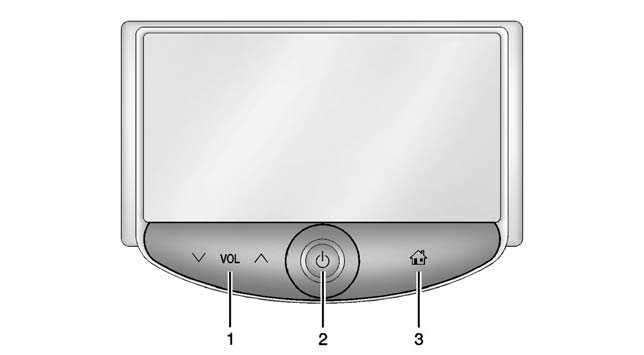

Chevrolet Trax: Overview (Radio with Touchscreen)
.gif)
.gif)
VOL
.gif)
(Volume)
- Press to decrease or increase the volume.
.gif)
(Power)
- Press and hold to turn the power on or off.
.gif)
(Home Page)
- Press to go to the Home Page. See Home Page (Radio with Touchscreen)
Home Page (Radio with Touchscreen)
Touchscreen Buttons
Touchscreen buttons show on the screen when available. When a function is unavailable, the button may gray out. When a function is selected, the button may highlight.
Home Page Features
.gif)
Press
.gif)
to go to the Home Page.
.gif)
audio: Press to select AM, FM,
SiriusXM (if equipped), USB/iPod/
Bluetooth Audio, or AUX.
.gif)
picture & movie: Press to view
a picture, movie, or auxiliary video.
.gif)
telephone: Press to activate
the phone features (if equipped).
See Bluetooth (Voice Recognition) or Bluetooth (Infotainment Controls) or Bluetooth (Overview)
.gif)
smartphone link: Press to listen
to Pandora (if equipped), Stitcher,
or available application. See
Smartphone Link (Overview) or Smartphone Link
(Pandora) or
Smartphone Link (Stitcher)
.gif)
settings: Press to access the
Personalization menu. See Vehicle
Personalization
