Chevrolet Trax: Inside air moisture and windshield temperature sensor replacement (with CJ2)

Chevrolet Trax (2013-2022) Workshop Manual / HVAC & Restraints / HVAC - Automatic / Repair instructions / Inside air moisture and windshield temperature sensor replacement (with CJ2)

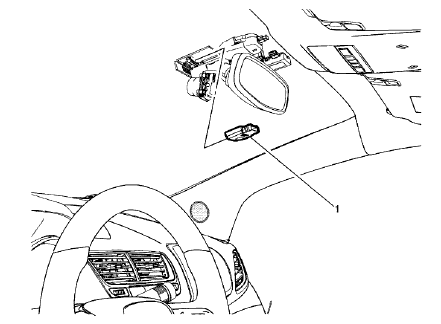

Fig. 15: Inside Air Moisture And Windshield Temperature Sensor (With CJ2)
Fig. 15: Inside Air Moisture And Windshield Temperature Sensor (With CJ2)

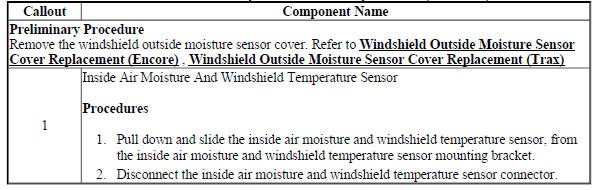

Inside Air Moisture and Windshield Temperature Sensor Replacement (With CJ2)

Inside Air Moisture and Windshield Temperature Sensor Replacement (With CJ2)

SUN LOAD TEMPERATURE SENSOR REPLACEMENT

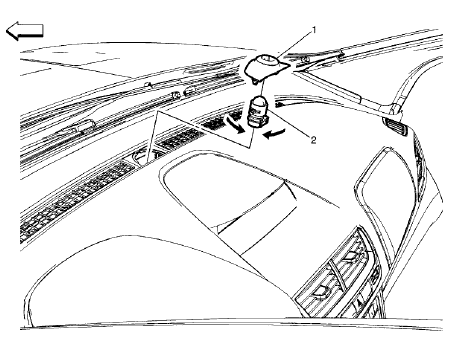

Fig. 16: Sun Load Temperature Sensor
Fig. 16: Sun Load Temperature Sensor

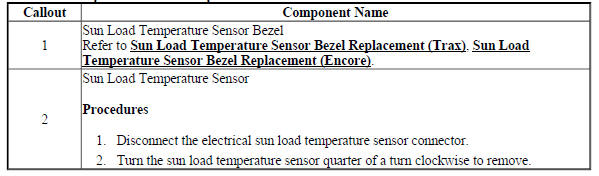

Sun Load Temperature Sensor Replacement

Sun Load Temperature Sensor Replacement

SUN LOAD TEMPERATURE SENSOR BEZEL REPLACEMENT (TRAX)

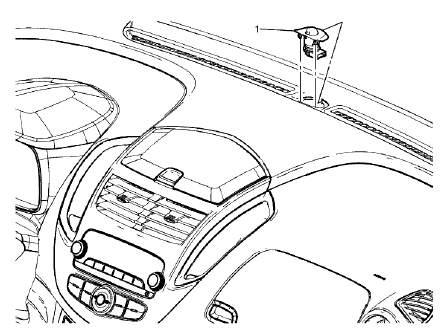

Fig. 17: Sun Load Temperature Sensor Bezel
Fig. 17: Sun Load Temperature Sensor Bezel

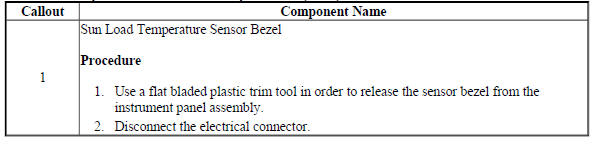

Sun Load Temperature Sensor Bezel Replacement (Trax)

Sun Load Temperature Sensor Bezel Replacement (Trax)

SUN LOAD TEMPERATURE SENSOR BEZEL REPLACEMENT (ENCORE)

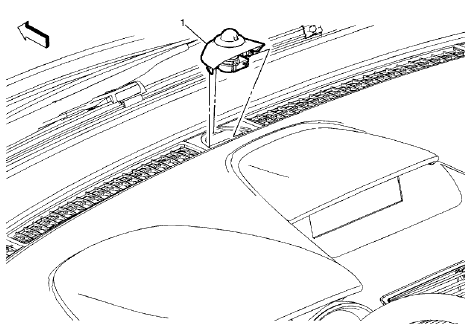

Fig. 18: Sun Load Temperature Sensor Bezel (Encore)
Fig. 18: Sun Load Temperature Sensor Bezel (Encore)

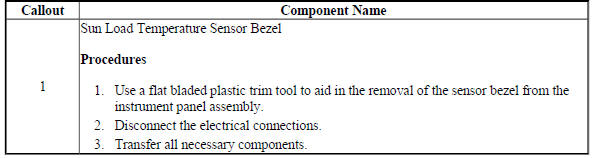

Sun Load Temperature Sensor Bezel Replacement (Encore)

Sun Load Temperature Sensor Bezel Replacement (Encore)
