Chevrolet Trax: Heater and air conditioning evaporator and blower upper case replacement

Chevrolet Trax (2013-2022) Workshop Manual / HVAC & Restraints / Heating, Ventilation, and Air Conditioning / Repair instructions / Heater and air conditioning evaporator and blower upper case replacement

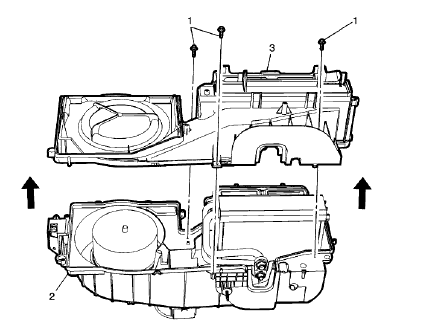

Fig. 49: Heater And Air Conditioning Evaporator And Blower Upper Case
Fig. 49: Heater And Air Conditioning Evaporator And Blower Upper Case

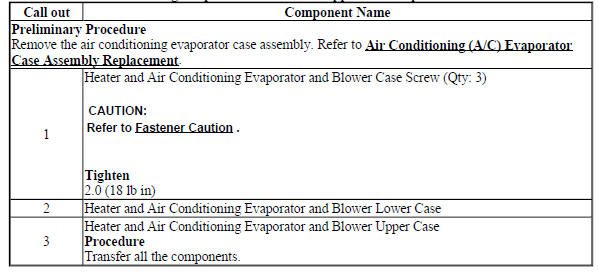

Heater and Air Conditioning Evaporator and Blower Upper Case Replacement

Heater and Air Conditioning Evaporator and Blower Upper Case Replacement

HEATER AND AIR CONDITIONING EVAPORATOR AND BLOWER LOWER CASE REPLACEMENT

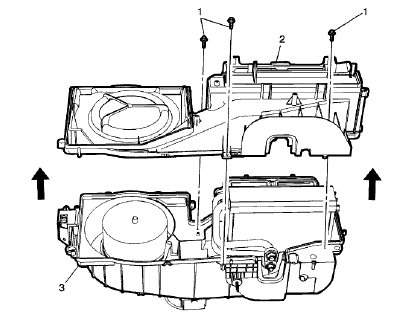

Fig. 50: Heater And Air Conditioning Evaporator And Blower Lower Case
Fig. 50: Heater And Air Conditioning Evaporator And Blower Lower Case

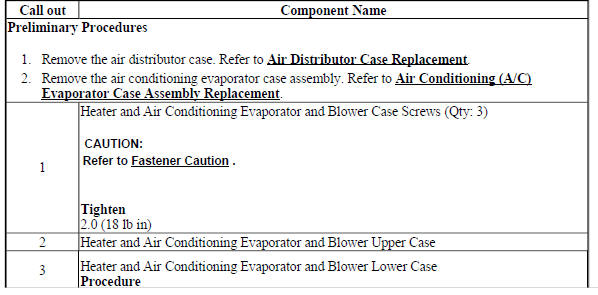

Heater and Air Conditioning Evaporator and Blower Lower Case Replacement

Heater and Air Conditioning Evaporator and Blower Lower Case Replacement

Heater and Air Conditioning Evaporator and Blower Lower Case Replacement

AIR CONDITIONING (A/C) EVAPORATOR CASE ASSEMBLY REPLACEMENT

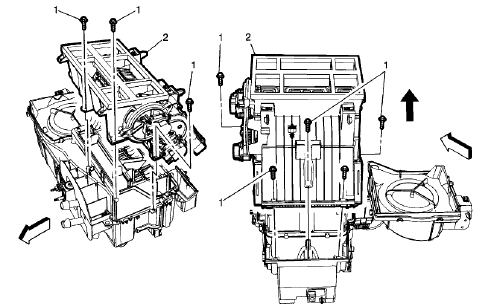

Fig. 51: Air Conditioning (A/C) Evaporator Case Assembly
Fig. 51: Air Conditioning (A/C) Evaporator Case Assembly

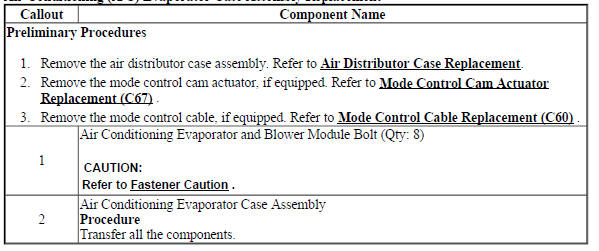

Air Conditioning (A/C) Evaporator Case Assembly Replacement

Air Conditioning (A/C) Evaporator Case Assembly Replacement

AIR CONDITIONING EVAPORATOR REPLACEMENT

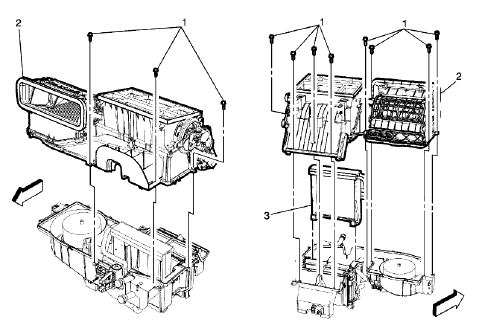

Fig. 52: Air Conditioning Evaporator
Fig. 52: Air Conditioning Evaporator

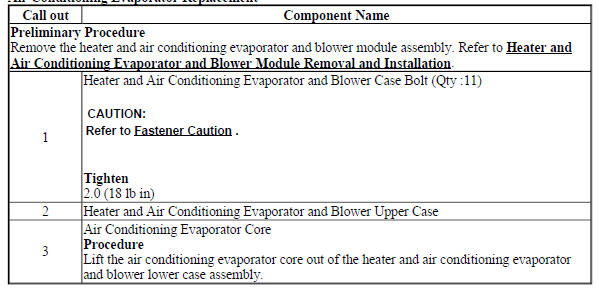

Air Conditioning Evaporator Replacement

Air Conditioning Evaporator Replacement

AIR CONDITIONING EVAPORATOR MODULE DRAIN HOSE REPLACEMENT

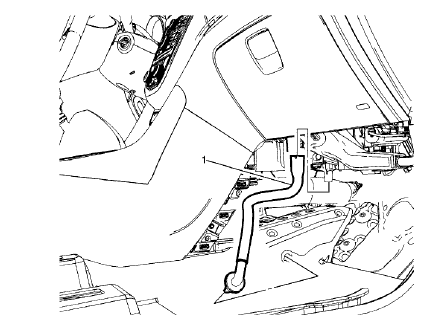

Fig. 53: Air Conditioning Evaporator Module Drain Hose
Fig. 53: Air Conditioning Evaporator Module Drain Hose

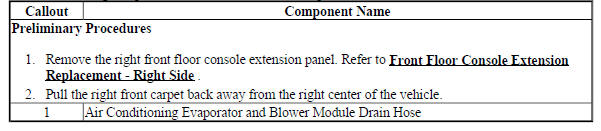

Air Conditioning Evaporator Module Drain Hose Replacement

Air Conditioning Evaporator Module Drain Hose Replacement

HEATER INLET HOSE REPLACEMENT (LUJ, LUV)

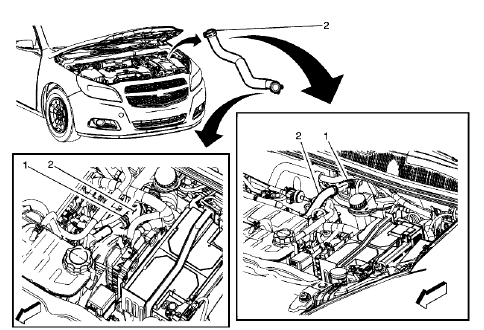

Fig. 54: Heater Inlet Hose
Fig. 54: Heater Inlet Hose

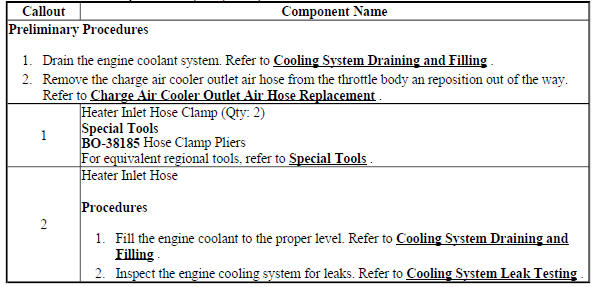

Heater Inlet Hose Replacement (LUJ, LUV)

Heater Inlet Hose Replacement (LUJ, LUV)

HEATER INLET HOSE REPLACEMENT (2H0)

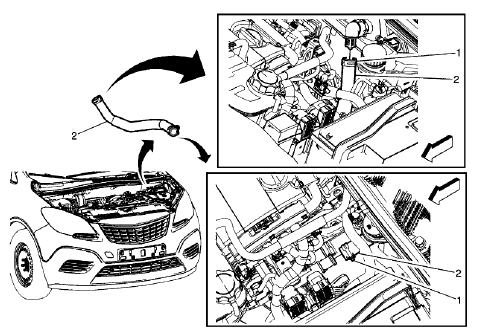

Fig. 55: Heater Inlet Hose (2H0)
Fig. 55: Heater Inlet Hose (2H0)

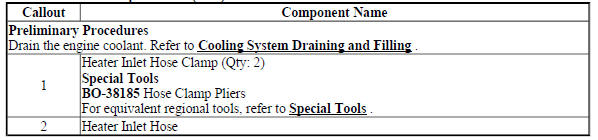

Heater Inlet Hose Replacement (2H0)

Heater Inlet Hose Replacement (2H0)

HEATER OUTLET HOSE REPLACEMENT (2H0)

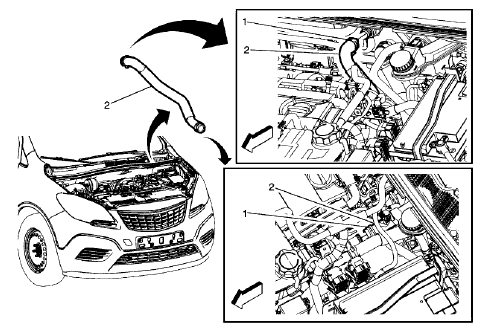

Fig. 56: Heater Outlet Hose (2H0)
Fig. 56: Heater Outlet Hose (2H0)

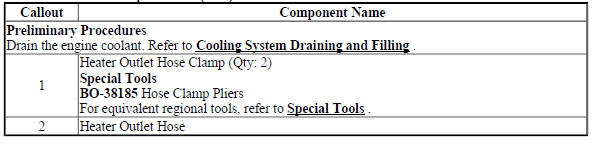

Heater Outlet Hose Replacement (2H0)

Heater Outlet Hose Replacement (2H0)

HEATER OUTLET HOSE REPLACEMENT (LUJ, LUV)

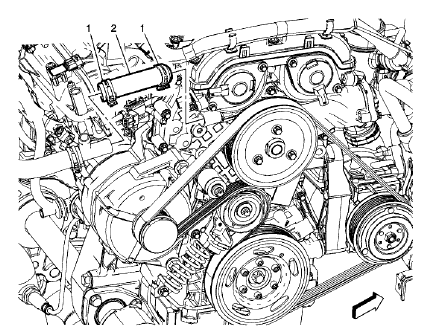

Fig. 57: Heater Outlet Hose
Fig. 57: Heater Outlet Hose

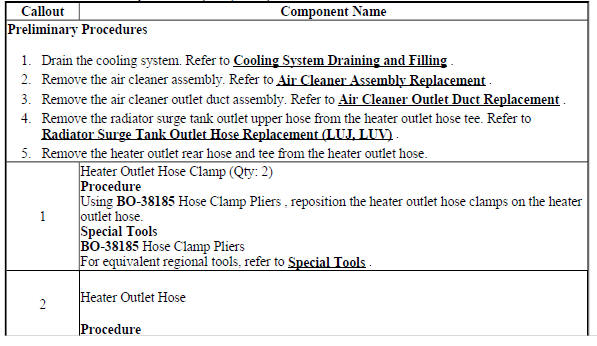

Heater Outlet Hose Replacement (LUJ, LUV)

Heater Outlet Hose Replacement (LUJ, LUV)

Heater Outlet Hose Replacement (LUJ, LUV)
