Chevrolet Trax: Fuel tank filler pipe replacement

Chevrolet Trax (2013-2022) Workshop Manual / Engine / Engine Controls and Fuel - 1.4L / Engine controls and fuel - 1.4l - Repair instructions / Fuel tank filler pipe replacement

Removal Procedure

WARNING: Gasoline or gasoline vapors are highly flammable. A fire could occur if an ignition source is present. Never drain or store gasoline or diesel fuel in an open container, due to the possibility of fire or explosion. Have a dry chemical (Class B) fire extinguisher nearby.

  1. Remove the fuel cap.
  2. Remove the right rear tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  3. Remove the right rear wheelhouse panel liner. Refer to Rear Wheelhouse Liner Replacement .

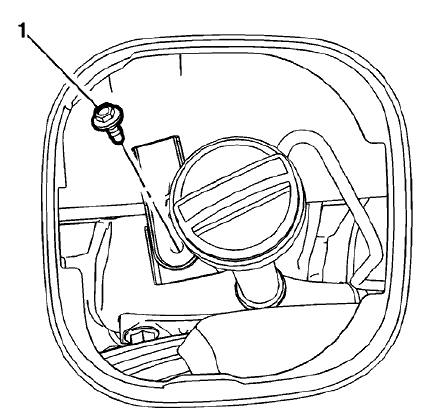

Fig. 19: Fuel Tank Filler Pipe
Fig. 19: Fuel Tank Filler Pipe

  1. Remove the fuel tank filler pipe fastener (1).
  2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

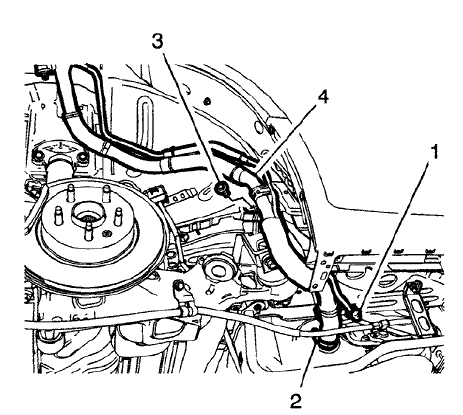

Fig. 20: Fuel Tank Filler Pipe Quick Connect Fitting
Fig. 20: Fuel Tank Filler Pipe Quick Connect Fitting

  1. Remove the fuel tank filler pipe clamp (2).
  2. Disconnect the fuel tank filler pipe quick connect fitting (1). Refer to Plastic Collar Quick Connect Fitting Service.
  3. Remove the fuel tank filler pipe fastener (3).
  4. Remove the fuel tank filler pipe (4) from the vehicle.

Installation Procedure

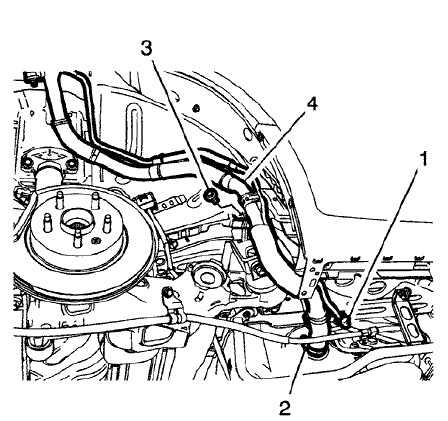

Fig. 21: Fuel Tank Filler Pipe Quick Connect Fitting
Fig. 21: Fuel Tank Filler Pipe Quick Connect Fitting

  1. Install the fuel tank filler pipe (4) to the vehicle.

CAUTION: Refer to Fastener Caution .

  1. Install the fuel tank filler pipe fastener (3) and tighten to 9 (80 lb in).
  2. Connect the fuel tank filler pipe quick connect fitting (1). Refer to Plastic Collar Quick Connect Fitting Service.
  3. Install the fuel tank filler pipe clamp (2).
  4. Lower the vehicle.

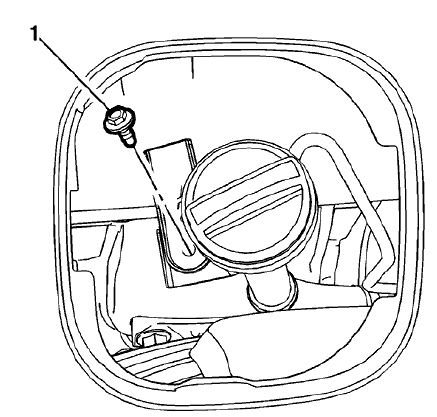

Fig. 22: Fuel Tank Filler Pipe
Fig. 22: Fuel Tank Filler Pipe

  1. Install the fuel tank filler pipe fastener (1) and tighten to 9 (80 lb in).
  2. Install the right rear wheelhouse panel liner. Refer to Rear Wheelhouse Liner Replacement .
  3. Install the right rear tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  4. Install the fuel cap.
