Chevrolet Trax: Fuel feed pipe replacement (engine to tank)

Chevrolet Trax (2013-2022) Workshop Manual / Engine / Engine Controls and Fuel - 1.4L / Engine controls and fuel - 1.4l - Repair instructions / Fuel feed pipe replacement (engine to tank)

Removal Procedure

WARNING: Gasoline or gasoline vapors are highly flammable. A fire could occur if an ignition source is present. Never drain or store gasoline or diesel fuel in an open container, due to the possibility of fire or explosion. Have a dry chemical (Class B) fire extinguisher nearby.

  1. Relieve the fuel pressure. Refer to Fuel Pressure Relief.
  2. Remove the fuel pressure sensor - fuel feed pipe. Refer to Fuel Pressure Sensor Replacement - Fuel Feed Pipe.

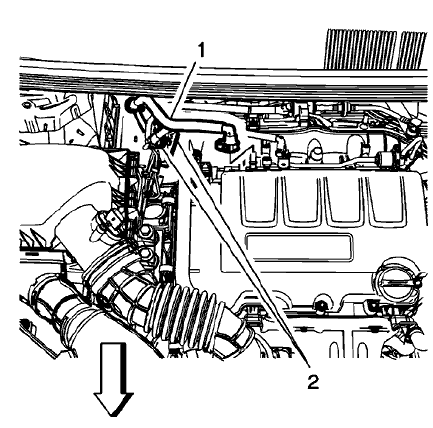

Fig. 23: Fuel Feed Pipe
Fig. 23: Fuel Feed Pipe

  1. Remove the fuel feed pipe (1) from the fuel rail. Refer to Plastic Collar Quick Connect Fitting Service.
  2. Remove the fuel feed pipe (1) from the retainers (2).
  3. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

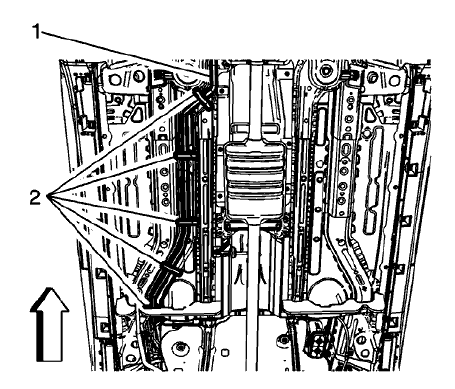

Fig. 24: Fuel Feed Pipe And Retainers
Fig. 24: Fuel Feed Pipe And Retainers

  1. Remove the fuel feed pipe (1) from the fuel feed pipe at the tank. Refer to Plastic Collar Quick Connect Fitting Service.
  2. Remove the underbody sill shield.
  3. Remove the fuel feed pipe (1) from the retainers (2).
  4. Remove the fuel feed pipe (1) from the vehicle.

Installation Procedure

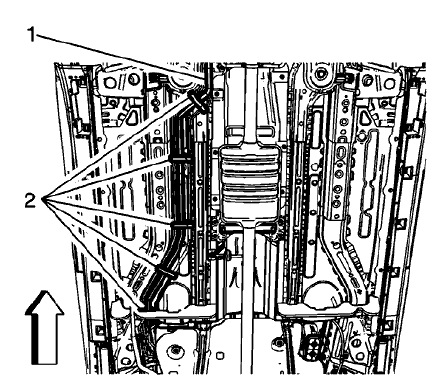

Fig. 25: Fuel Feed Pipe And Retainers
Fig. 25: Fuel Feed Pipe And Retainers

  1. Install the fuel feed pipe (1) to the vehicle.
  2. Install the fuel feed pipe (1) to the retainers (2).
  3. Install the underbody sill shield.
  4. Install the fuel feed pipe (1) to the fuel feed pipe at the tank. Refer to Plastic Collar Quick Connect Fitting Service.
  5. Lower the vehicle.

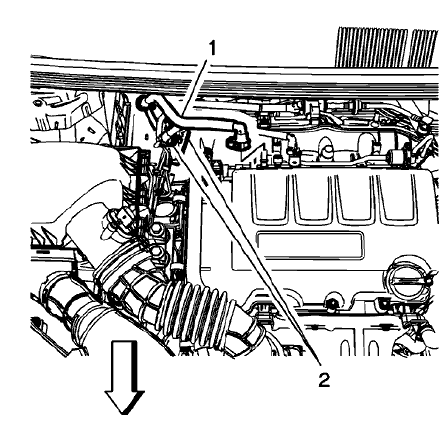

Fig. 26: Fuel Feed Pipe
Fig. 26: Fuel Feed Pipe

  1. Install the fuel feed pipe (1) to the retainers (2).
  2. Install the fuel feed pipe (1) to the fuel rail. Refer to Plastic Collar Quick Connect Fitting Service.
  3. Install the fuel pressure sensor - fuel feed pipe. Refer to Fuel Pressure Sensor Replacement - Fuel Feed Pipe.
