Chevrolet Trax: Transfer case adapter replacement
Removal Procedure
- Remove the transfer case. Refer to Transfer Case Replacement.
.gif)

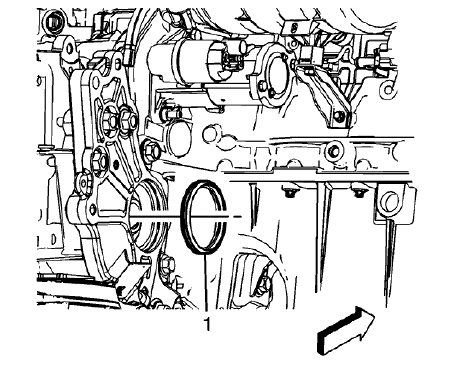

Fig. 24: Transfer Case-To-Transfer Case Bracket Seal
- Remove and DISCARD the transfer case adapter seal from the transmission
adapter.
.gif)

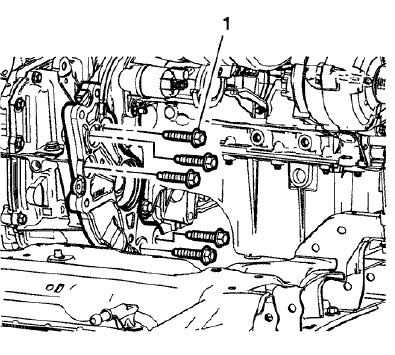

Fig. 25: Transmission Adapter Bolts
- Remove and DISCARD the five transmission adapter fasteners (1).
.gif)

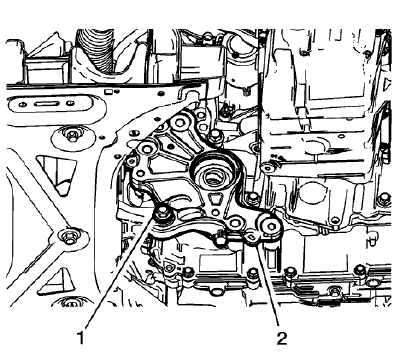

Fig. 26: Transmission Bracket And Through Bolt
- Remove and DISCARD the rear transmission mount through bolt (1).
- Remove the transmission adapter (2) from the transmission.
Installation Procedure
.gif)

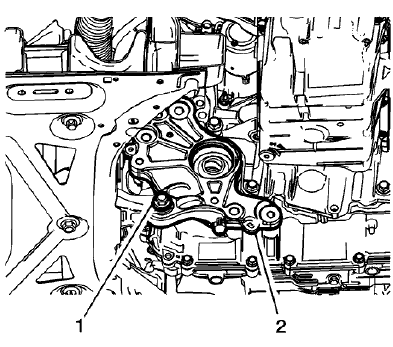

Fig. 27: Transmission Bracket And Through Bolt
- Install the transmission adapter (2) to the transmission.
.gif)

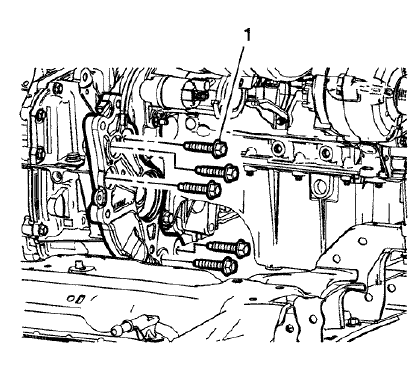

Fig. 28: Transmission Adapter Bolts
CAUTION: Refer to Fastener Caution .
- For manual transmission, install the NEW transmission adapter to
transmission fasteners (1) and tighten
to 100 N.m (74 lb ft) plus 30-40 degrees.
.gif)

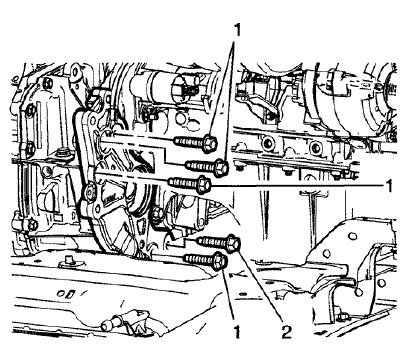

Fig. 29: Transmission Bracket Fasteners
- For automatic transmission, install the NEW transmission adapter to
transmission fasteners (1) and
tighten to 100 N.m (74 lb ft) plus 30-40 degrees.
- Install the NEW transmission adapter to transmission fastener (2) and
tighten to 60 N.m (44 lb ft) plus 60-
75 degrees.
.gif)

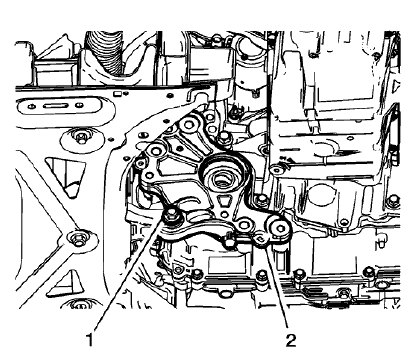

Fig. 30: Transmission Bracket And Through Bolt
- Install the NEW rear transmission mount through bolt (1) and tighten to
80 N.m (59 lb ft) plus 45-60
degrees.
.gif)

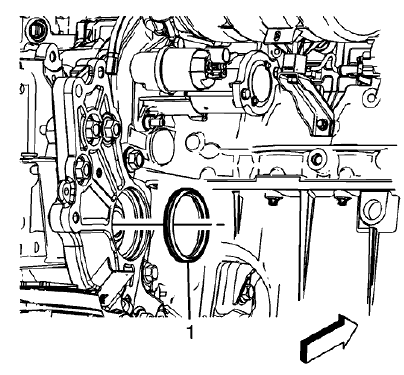

Fig. 31: Transfer Case-To-Transfer Case Bracket Seal
- Install the NEW transfer case adapter seal from the transmission adapter.
- Install the transfer case. Refer to Transfer Case Replacement.
TRANSFER CASE ADAPTER BUSHING REPLACEMENT
Removal Procedure
- Remove the transfer case. Refer to Transfer Case Replacement.
.gif)

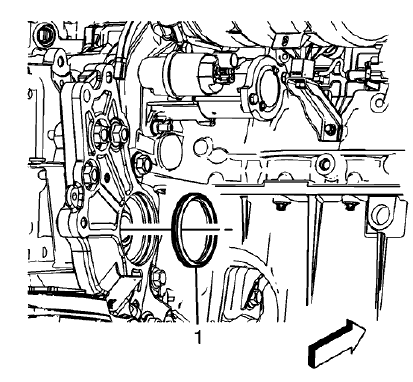

Fig. 32: Transfer Case-To-Transfer Case Bracket Seal
- Remove and DISCARD the transfer case adapter seal from the transmission
adapter.
.gif)

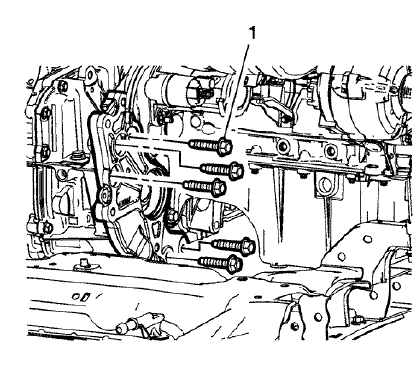

Fig. 33: Transmission Adapter Bolts
- Remove and DISCARD the five transmission adapter fasteners (1).
.gif)

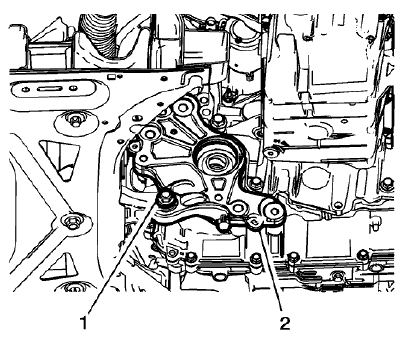

Fig. 34: Transmission Bracket And Through Bolt
- Remove and DISCARD the rear transmission mount through bolt (1).
- Remove the transmission adapter (2) from the transmission.
- Inspect the rear mount bushing the transmission adapter for wear or
damage. Refer to Transfer Case
Adapter Disassemble (MHB), Transfer Case Adapter Disassemble (M7Y, MZ4).
Installation Procedure
- Install the rear mount bushing to the transmission adapter. Refer to
Transfer Case Adapter Assemble
(MHB), Transfer Case Adapter Assemble (M7Y, MZ4).
.gif)

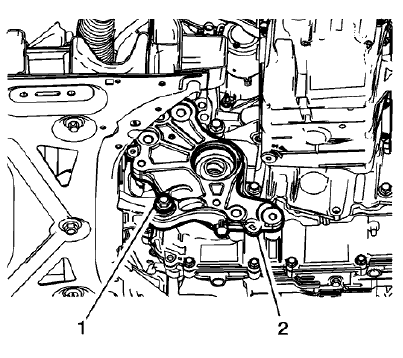

Fig. 35: Transmission Bracket And Through Bolt
- Install the transmission adapter (2) to the transmission.
.gif)

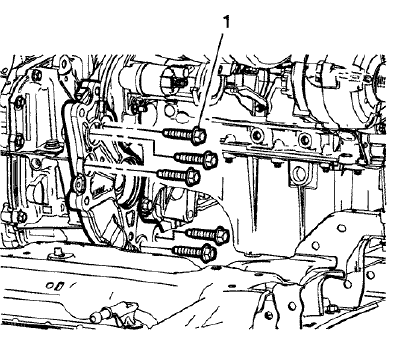

Fig. 36: Transmission Adapter Bolts
CAUTION: Refer to Fastener Caution .
- For manual transmission, install the NEW transmission adapter to
transmission fasteners (1) and tighten
to 100 N.m (74 lb ft) plus 30-40 degrees.
.gif)

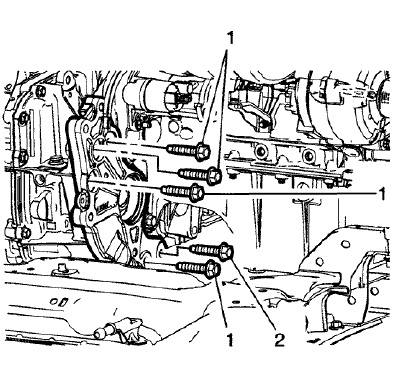

Fig. 37: Transmission Bracket Fasteners
- For automatic transmission, install the NEW transmission adapter to
transmission fasteners (1) and
tighten to 100 N.m (74 lb ft) plus 30-40 degrees.
- Install the NEW transmission adapter to transmission fastener (2) and
tighten to 60 N.m (44 lb ft) plus 60-
75 degrees.
.gif)
Fig. 38: Transmission Bracket And Through Bolt
- Install the NEW rear transmission mount through bolt (1) and tighten to
80 N.m (59 lb ft) plus 45-60
degrees.
.gif)

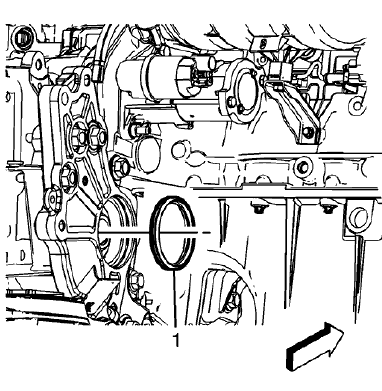

Fig. 39: Transfer Case-To-Transfer Case Bracket Seal
- Install the NEW transfer case adapter seal from the transmission adapter.
- Install the transfer case. Refer to Transfer Case Replacement.
