Chevrolet Trax: Transfer case cleaning and inspection

Chevrolet Trax (2013-2022) Workshop Manual / Transmission / Transfer Case - AAM / Repair instructions - off vehicle / Transfer case cleaning and inspection

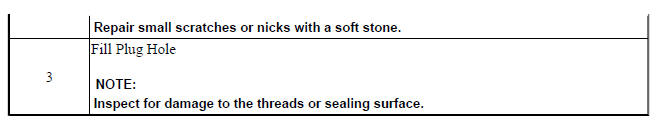

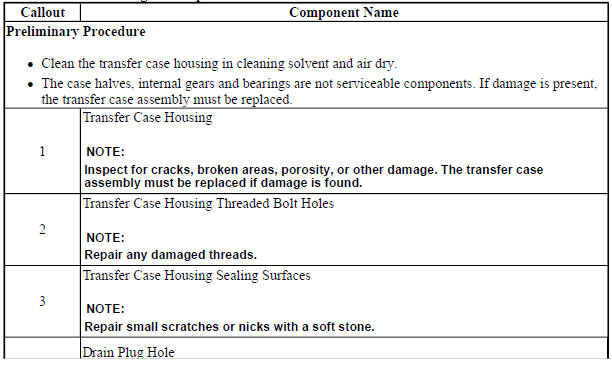

Transfer Case Housing Cleaning and Inspection

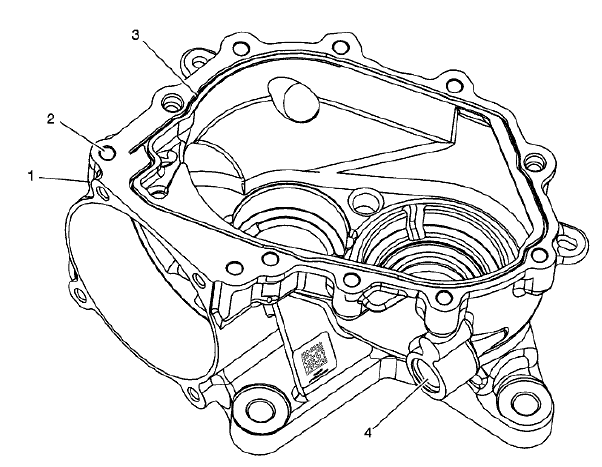

Fig. 53: Transfer Case Housing Cleaning And Inspection Points
Fig. 53: Transfer Case Housing Cleaning And Inspection Points

Transfer Case Cleaning and Inspection

Transfer Case Cleaning and Inspection

Transfer Case Cleaning and Inspection

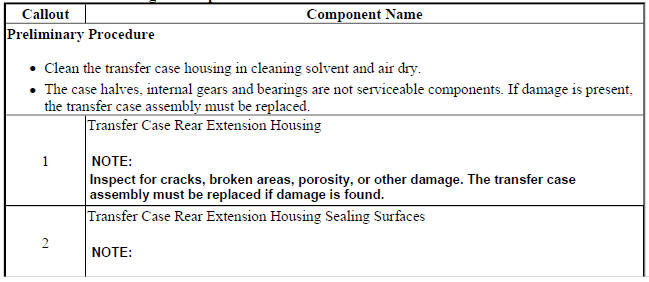

Transfer Case Rear Extension Housing Cleaning and Inspection

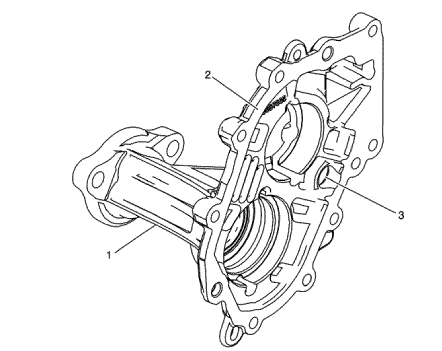

Fig. 54: Transfer Case Rear Extension Housing Cleaning And Inspection Areas
Fig. 54: Transfer Case Rear Extension Housing Cleaning And Inspection Areas

Transfer Case Cleaning and Inspection

Transfer Case Cleaning and Inspection

Transfer Case Cleaning and Inspection

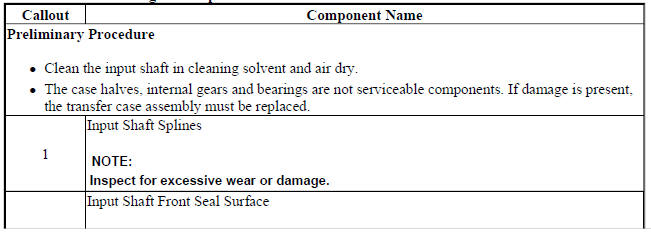

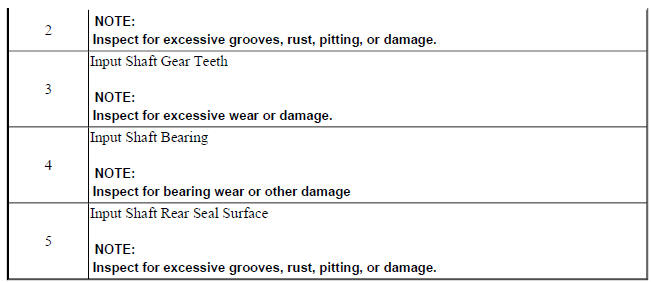

Input Shaft Cleaning and Inspection

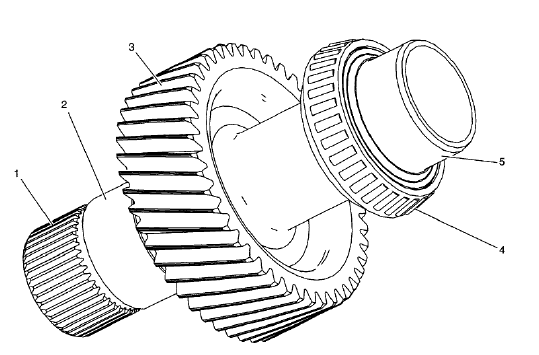

Fig. 55: Input Shaft Inspection Points
Fig. 55: Input Shaft Inspection Points

Transfer Case Cleaning and Inspection

Input Shaft Cleaning and Inspection

Input Shaft Cleaning and Inspection

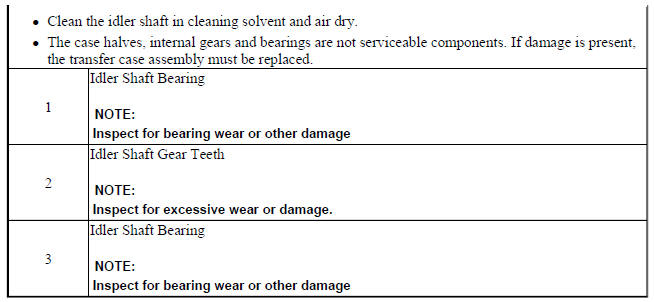

Idler Shaft Cleaning and Inspection

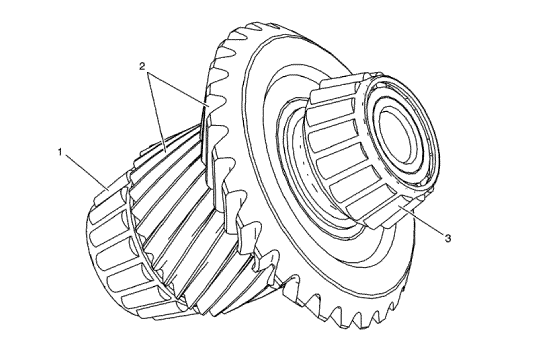

Fig. 56: Idler Shaft Inspection Points
Fig. 56: Idler Shaft Inspection Points

Transfer Case Cleaning and Inspection

Idler Shaft Cleaning and Inspection

Idler Shaft Cleaning and Inspection

TRANSFER CASE ASSEMBLE

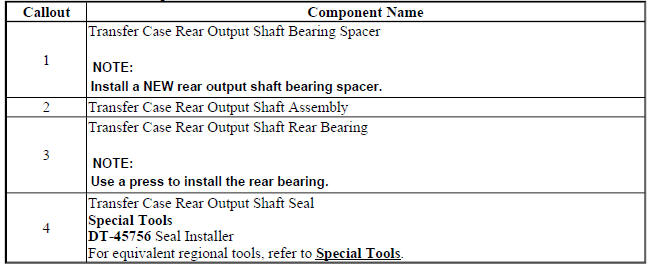

Transfer Case Rear Output Shaft Installation

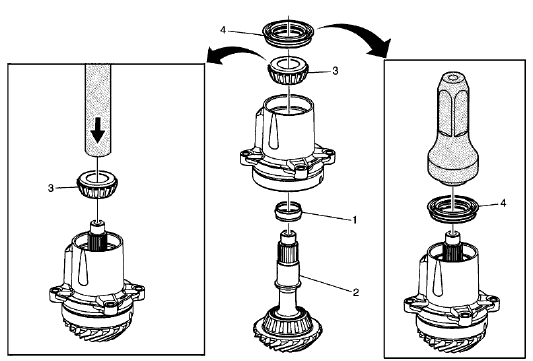

Fig. 57: Transfer Case Rear Output Shaft
Fig. 57: Transfer Case Rear Output Shaft

Transfer Case Rear Output Shaft Installation

Transfer Case Rear Output Shaft Installation

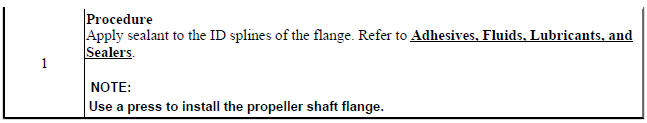

Transfer Case Propeller Shaft Flange Installation

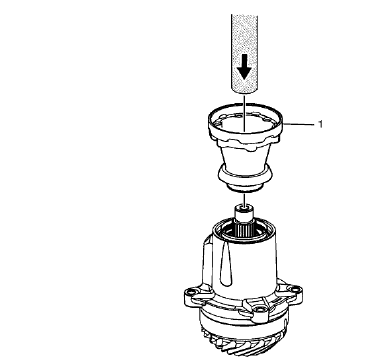

Fig. 58: Transfer Case Propeller Shaft Flange
Fig. 58: Transfer Case Propeller Shaft Flange

Transfer Case Propeller Shaft Flange Installation

Transfer Case Propeller Shaft Flange Installation

Transfer Case Propeller Shaft Flange Installation

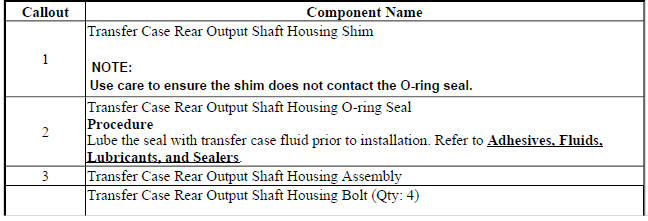

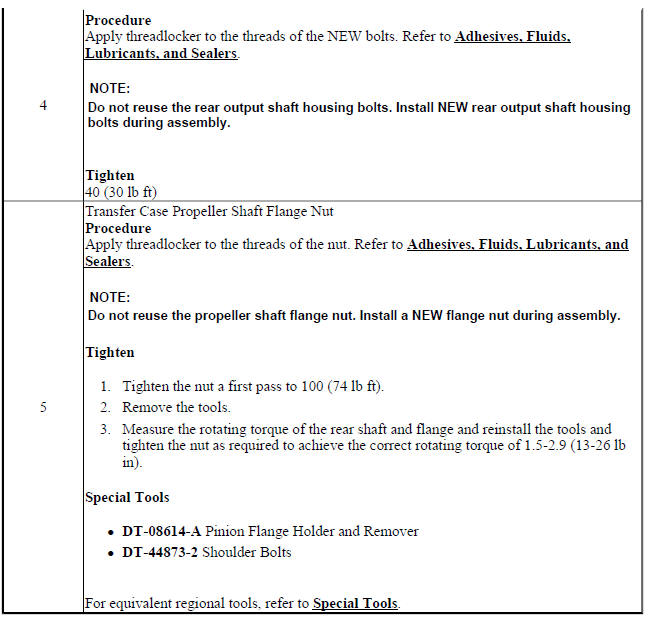

Transfer Case Rear Output Shaft Housing Installation

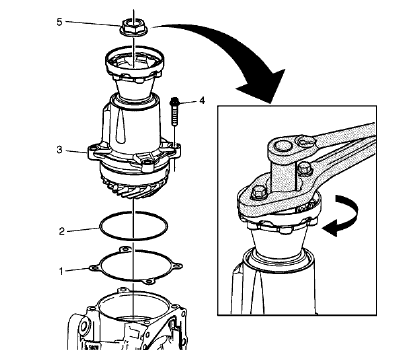

Fig. 59: Transfer Case Rear Output Shaft Housing
Fig. 59: Transfer Case Rear Output Shaft Housing

Transfer Case Rear Output Shaft Housing Installation

Transfer Case Rear Output Shaft Housing Installation

Transfer Case Rear Output Shaft Housing Installation

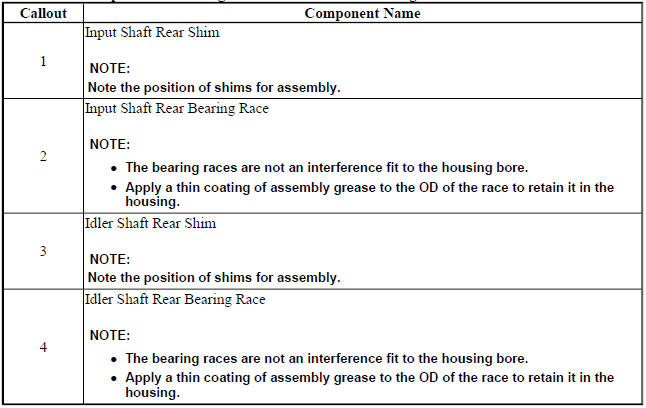

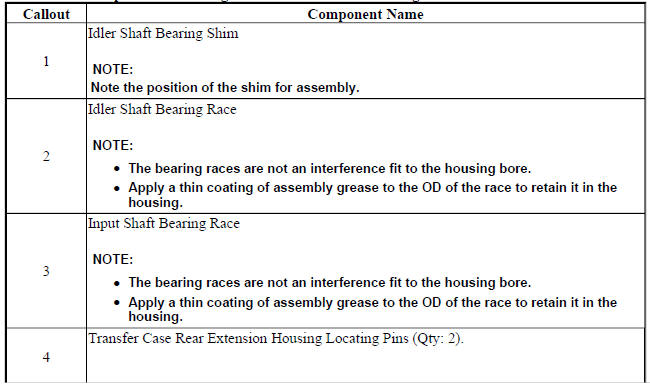

Transfer Case Input Shaft Bearing Race and Idler Shaft Bearing Race Installation

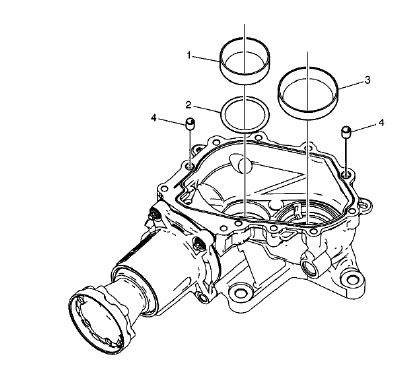

Fig. 60: Input Shaft Bearing Race And Idler Shaft Bearing Race
Fig. 60: Input Shaft Bearing Race And Idler Shaft Bearing Race

Transfer Case Input Shaft Bearing Race and Idler Shaft Bearing Race Installation

Transfer Case Input Shaft Bearing Race and Idler Shaft Bearing Race Installation

Transfer Case Input Shaft Bearing Race and Idler Shaft Bearing Race Installation

Idler Shaft and Input Shaft Installation

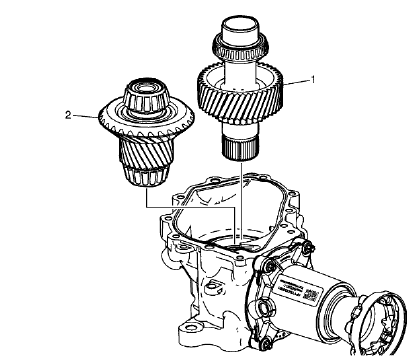

Fig. 61: Idler Shaft and Input Shaft
Fig. 61: Idler Shaft and Input Shaft

Idler Shaft and Input Shaft Installation

Idler Shaft and Input Shaft Installation

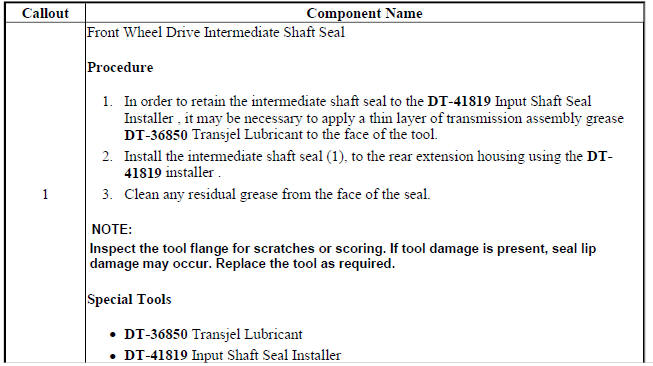

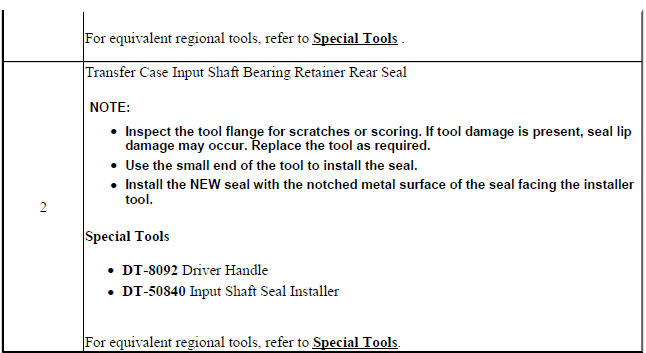

Transfer Case Input Shaft Bearing Retainer Rear Seal and Front Wheel Drive Intermediate Shaft Seal Installation

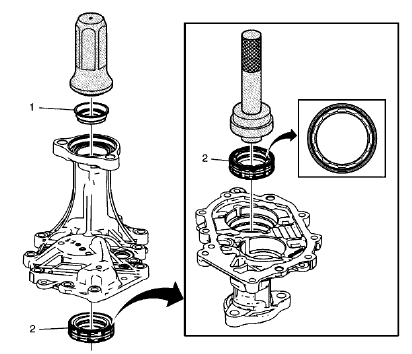

Fig. 62: Input Shaft Bearing Retainer Rear Seal And Front Wheel Drive Intermediate Shaft Seal
Fig. 62: Input Shaft Bearing Retainer Rear Seal And Front Wheel Drive Intermediate Shaft Seal

Transfer Case Input Shaft Bearing Retainer Rear Seal and Front Wheel Drive Intermediate Shaft Seal Installation

Transfer Case Input Shaft Bearing Retainer Rear Seal and Front Wheel Drive Intermediate Shaft Seal Installation

Transfer Case Input Shaft Bearing Retainer Rear Seal and Front Wheel Drive Intermediate Shaft Seal Installation

Transfer Case Input Shaft Bearing Race and Idler Shaft Bearing Race Installation

Fig. 63: Input Shaft Bearing Race and Idler Shaft Bearing Race
Fig. 63: Input Shaft Bearing Race and Idler Shaft Bearing Race

Transfer Case Input Shaft Bearing Race and Idler Shaft Bearing Race Installation

Transfer Case Input Shaft Bearing Race and Idler Shaft Bearing Race Installation

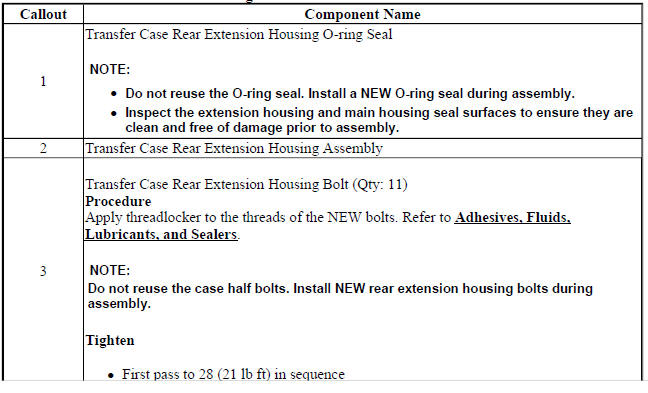

Transfer Case Rear Extension Housing Installation

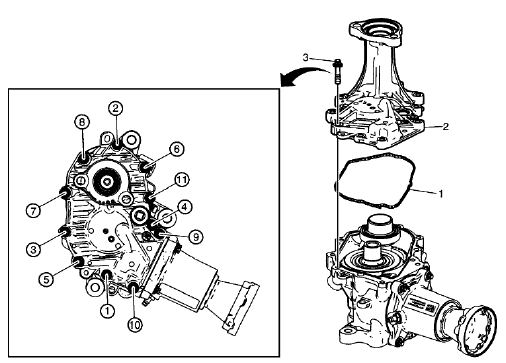

Fig. 64: Transfer Case Rear Extension Housing
Fig. 64: Transfer Case Rear Extension Housing

Transfer Case Rear Extension Housing Installation

Transfer Case Rear Extension Housing Installation

Transfer Case Rear Extension Housing Installation

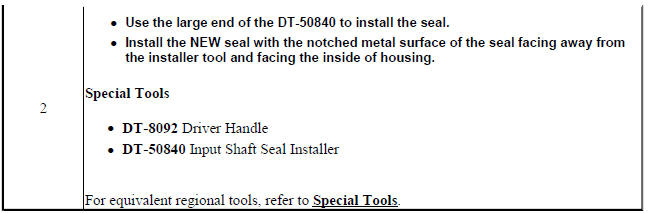

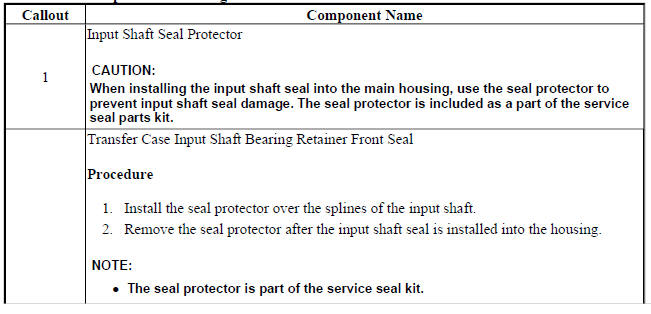

Transfer Case Input Shaft Bearing Retainer Front Seal Installation

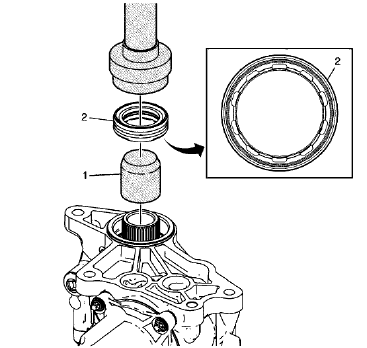

Fig. 65: Input Shaft Bearing Retainer Front Seal And Special Tools
Fig. 65: Input Shaft Bearing Retainer Front Seal And Special Tools

Transfer Case Input Shaft Bearing Retainer Front Seal Installation

Transfer Case Input Shaft Bearing Retainer Front Seal Installation

Transfer Case Input Shaft Bearing Retainer Front Seal Installation

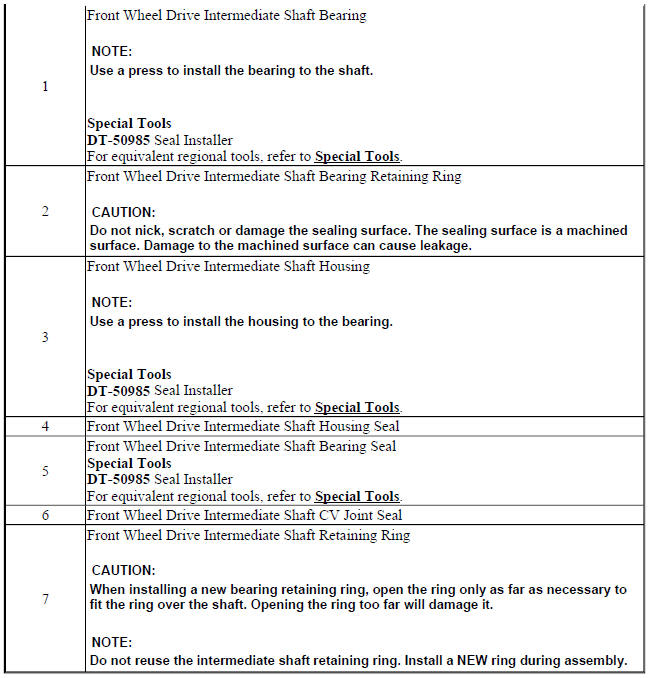

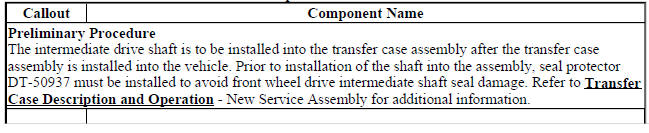

Front Wheel Drive Intermediate Shaft Components Installation

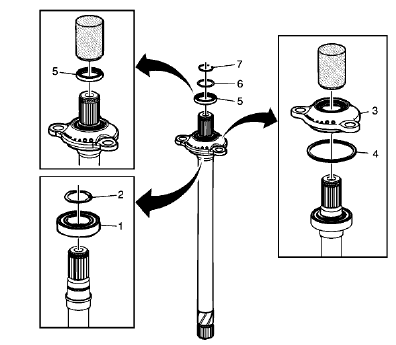

Fig. 66: Front Wheel Drive Intermediate Shaft Components
Fig. 66: Front Wheel Drive Intermediate Shaft Components

Front Wheel Drive Intermediate Shaft Components Installation

Front Wheel Drive Intermediate Shaft Components Installation

Front Wheel Drive Intermediate Shaft Components Installation

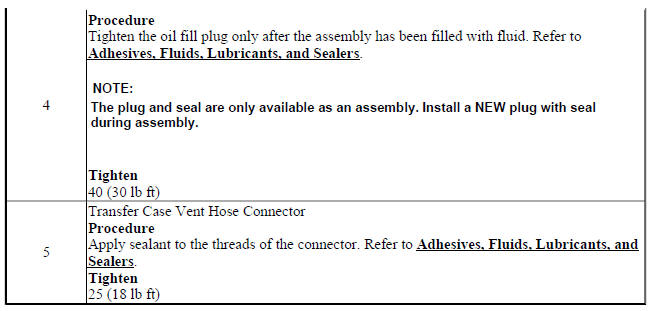

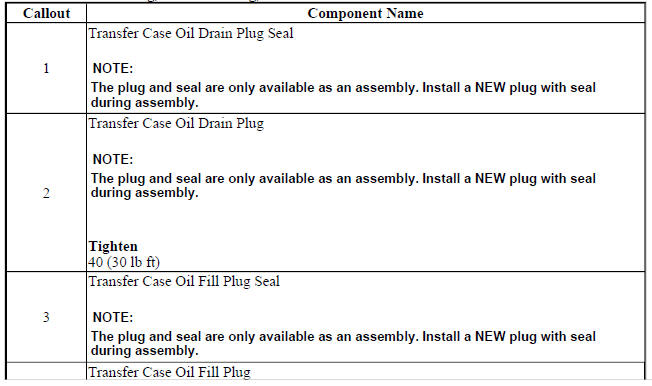

Transfer Case Fill Plug, Oil Drain Plug, and Vent Hose Connector Installation

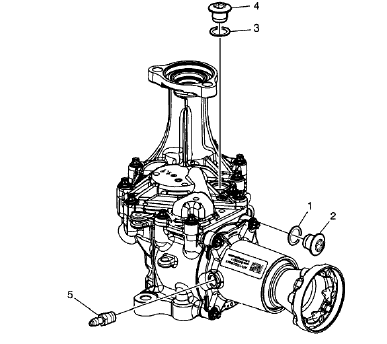

Fig. 67: Transfer Case Fill Plug, Oil Drain Plug And Vent Hose Connector
Fig. 67: Transfer Case Fill Plug, Oil Drain Plug And Vent Hose Connector

Transfer Case Fill Plug, Oil Drain Plug, and Vent Hose Connector Installation

Transfer Case Fill Plug, Oil Drain Plug, and Vent Hose Connector Installation

Transfer Case Fill Plug, Oil Drain Plug, and Vent Hose Connector Installation

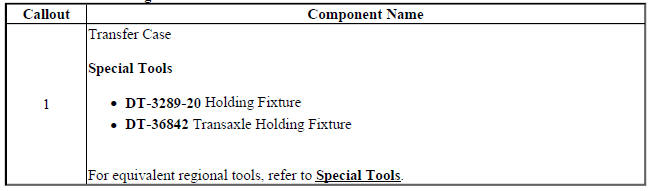

Transfer Case Holding Fixture Removal

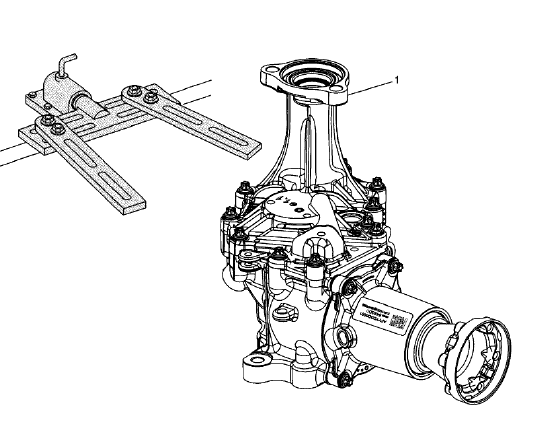

Fig. 68: Transfer Case Holding Fixture
Fig. 68: Transfer Case Holding Fixture

Transfer Case Holding Fixture Removal

Transfer Case Holding Fixture Removal

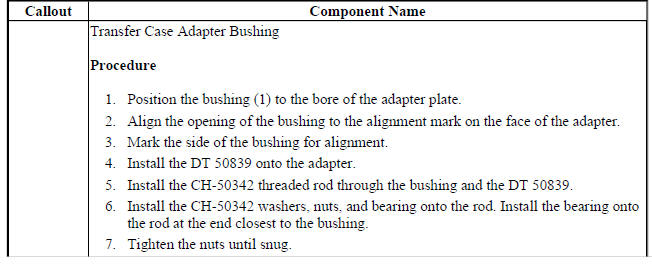

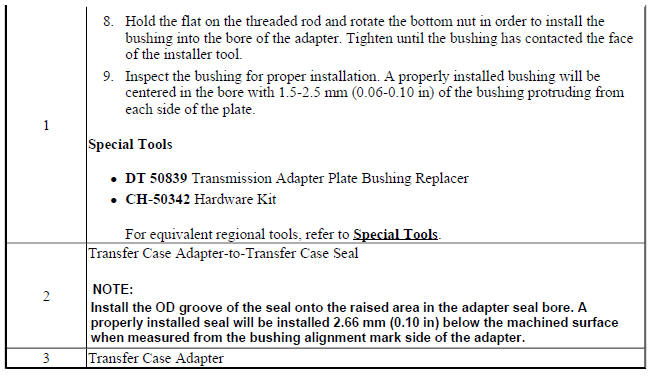

Transfer case adapter assemble (MHB)

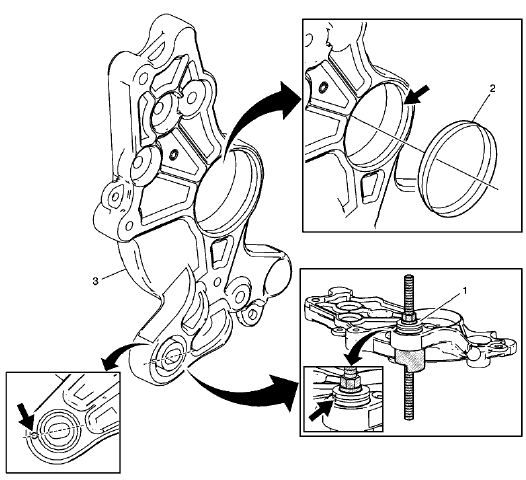

Fig. 69: Transfer Case Adapter (MHB)
Fig. 69: Transfer Case Adapter (MHB)

Transfer Case Adapter Assemble (MHB)

Transfer case adapter assemble (MHB)

Transfer case adapter assemble (MHB)

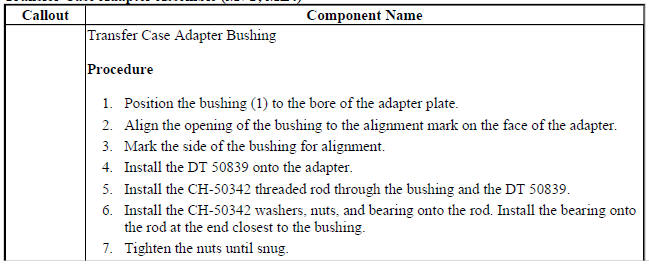

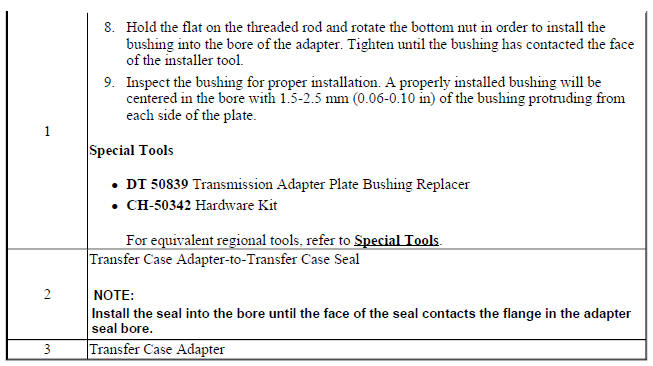

TRANSFER CASE ADAPTER ASSEMBLE (M7Y, MZ4)

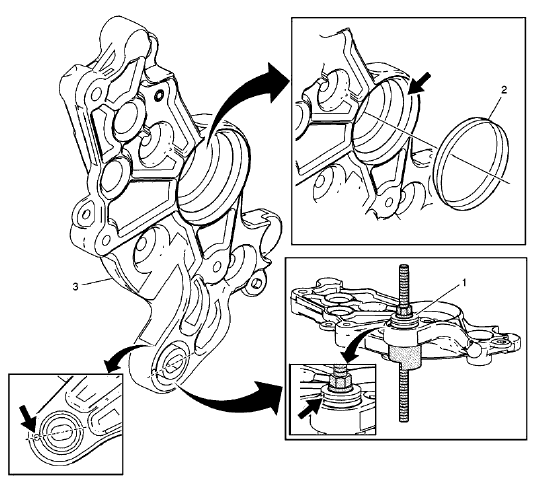

Fig. 70: Transfer Case Adapter (M7Y, MZ4)
Fig. 70: Transfer Case Adapter (M7Y, MZ4)

Transfer Case Adapter Assemble (M7Y, MZ4)

Transfer Case Adapter Assemble (M7Y, MZ4)

Transfer Case Adapter Assemble (M7Y, MZ4)
