Chevrolet Trax: Headlamps, Front Turn Signal and Parking Lamps

Chevrolet Trax (2013-2022) Owner's Manual / Vehicle Care / Bulb Replacement / Headlamps, Front Turn Signal and Parking Lamps

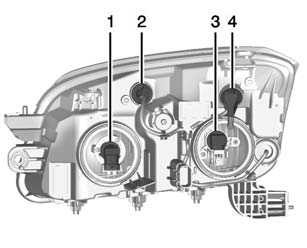

Driver Side Shown, Passenger Side Similar
Driver Side Shown, Passenger Side Similar

  1. Low-Beam Headlamp
  2. Turn Signal Lamp
  3. High-Beam Headlamp
  4. Parking Lamp

High-Beam Headlamp/ Low-Beam Headlamp

  1. Open the hood. See Hood

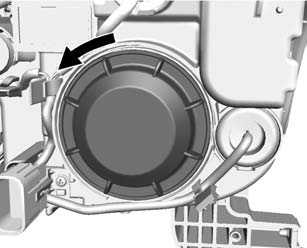

High-Beam Headlamp/ Low-Beam Headlamp

  1. Remove the headlamp bulb access cover.
  2. Turn the bulb counterclockwise and pull straight back.

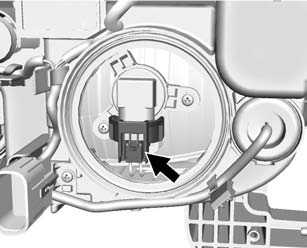

High-Beam Headlamp/ Low-Beam Headlamp

  1. Disconnect the wiring harness connector from the bulb.
  2. Install the new bulb in the headlamp assembly by turning clockwise.
  3. Reconnect the wiring harness connector.
  4. Install the headlamp bulb access cover.

Parking Lamp

  1. Open the hood. See Hood

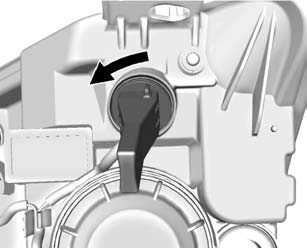

Parking Lamp

  1. Remove the parking lamp bulb socket from the headlamp assembly by turning counterclockwise.
  2. Remove the bulb from the bulb socket by pulling it straight out.
  3. Install the new bulb in the bulb socket.
  4. Install the bulb socket into the headlamp assembly by turning clockwise.

Turn Signal Lamp

  1. Open the hood. See Hood

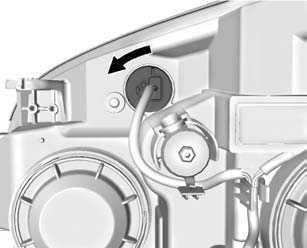

Turn Signal Lamp

  1. Remove the turn signal lamp bulb socket from the headlamp assembly by turning counterclockwise.
  2. Remove the bulb from the bulb socket by pulling it straight out.
  3. Install the new bulb in the bulb socket.
  4. Install the bulb socket into the headlamp assembly by turning clockwise.
