Chevrolet Trax: Headlamp mount panel bracket replacement

Chevrolet Trax (2013-2022) Workshop Manual / Accessories & Equipment / Bolted Exterior Body Panels and Closures / Bolted Exterior Body Panels and Closures - Repair instructions / Headlamp mount panel bracket replacement

Fig. 25: Headlamp Mount Panel Bracket
Fig. 25: Headlamp Mount Panel Bracket

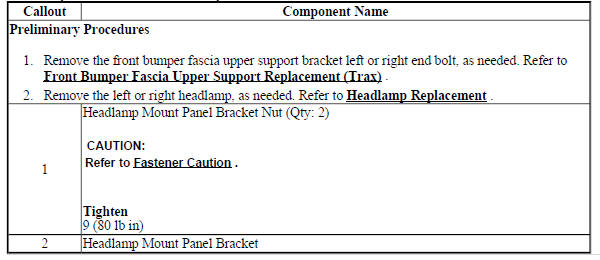

Headlamp Mount Panel Bracket Replacement

Headlamp Mount Panel Bracket Replacement

HOOD INSULATOR REPLACEMENT (TRAX)

Fig. 26: Hood Insulator
Fig. 26: Hood Insulator

Hood Insulator Replacement (Trax)

Hood Insulator Replacement (Trax)

HOOD INSULATOR REPLACEMENT (ENCORE)

Fig. 27: Hood Insulator
Fig. 27: Hood Insulator

Hood Insulator Replacement (Encore)

Hood Insulator Replacement (Encore)

HOOD PRIMARY AND SECONDARY LATCH REPLACEMENT (TRAX)

Fig. 28: Hood Primary And Secondary Latch
Fig. 28: Hood Primary And Secondary Latch

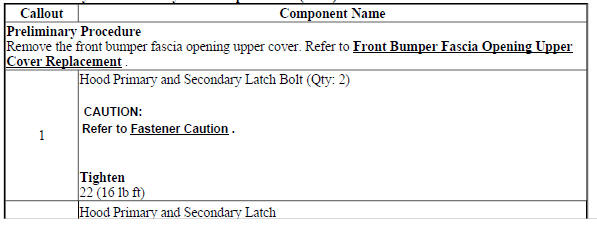

Hood Primary and Secondary Latch Replacement (Trax)

Hood Primary and Secondary Latch Replacement (Trax)

HOOD PRIMARY AND SECONDARY LATCH REPLACEMENT (ENCORE)

Fig. 29: Hood Primary And Secondary Latch
Fig. 29: Hood Primary And Secondary Latch

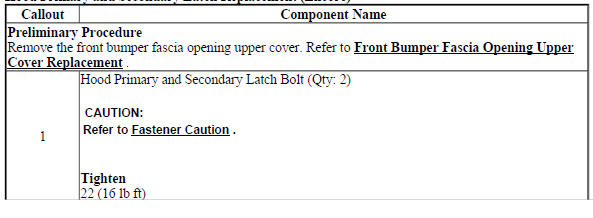

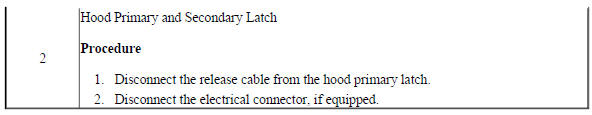

Hood Primary and Secondary Latch Replacement (Encore)

Hood Primary and Secondary Latch Replacement (Encore)

Hood Primary and Secondary Latch Replacement (Encore)

FRONT SIDE DOOR CHECK LINK REPLACEMENT

Fig. 30: Front Side Door Check
Fig. 30: Front Side Door Check

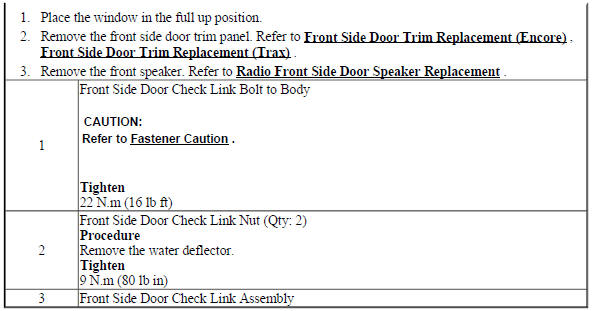

Front Side Door Check Replacement

Front Side Door Check Replacement

Front Side Door Check Replacement

FUEL TANK FILLER DOOR REPLACEMENT (ENCORE)

Fig. 31: Fuel Tank Filler Door
Fig. 31: Fuel Tank Filler Door

Fuel Tank Filler Door Replacement (Encore)

Fuel Tank Filler Door Replacement (Encore)

FUEL TANK FILLER DOOR REPLACEMENT (TRAX)

Fig. 32: Fuel Tank Filler Door
Fig. 32: Fuel Tank Filler Door

Fuel Tank Filler Door Replacement (Trax)

Fuel Tank Filler Door Replacement (Trax)

    READ NEXT:

     Fuel tank filler door latch housing replacement (encore)

    Fig. 33: Fuel Tank Filler Door Latch Housing Fuel Tank Filler Door Latch Housing Replacement (Encore) FUEL TANK FILLER DOOR LATCH HOUSING REPLACEMENT (TRAX) Fig. 34: Fuel Tank Filler Door Latch

     Hood rear weatherstrip replacement (encore)

    Fig. 41: Hood Rear Weatherstrip Hood Rear Weatherstrip Replacement (Encore) LIFTGATE STRUT REPLACEMENT Fig. 42: Liftgate Strut Liftgate Strut Replacement FRONT OR REAR SIDE DOOR LOWER WEATHE
