Chevrolet Trax: Diagnostic trouble code (DTC) list - vehicle
Chevrolet Trax (2013-2022) Workshop Manual / General Information & Maintenance / Vehicle Diagnostic Information - Diagnostic Information and Procedures / Diagnostic trouble code (DTC) list - vehicle
This master DTC list includes all applicable DTCs in alphanumeric order.

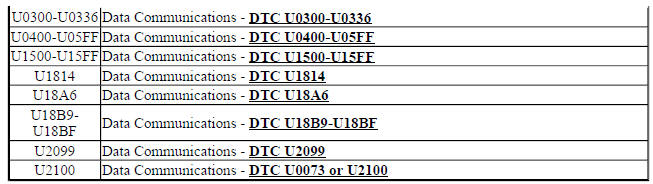

Diagnostic Trouble Code (DTC) List - Vehicle

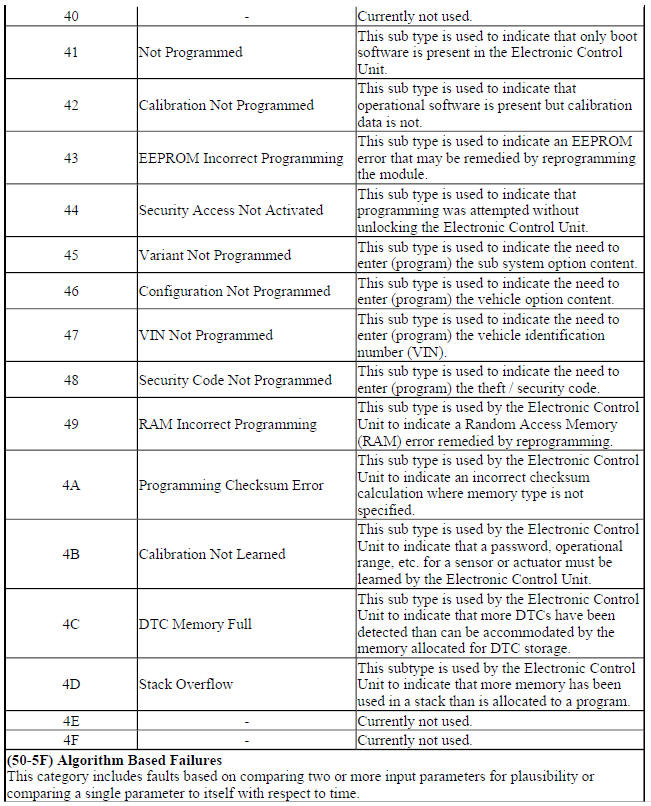

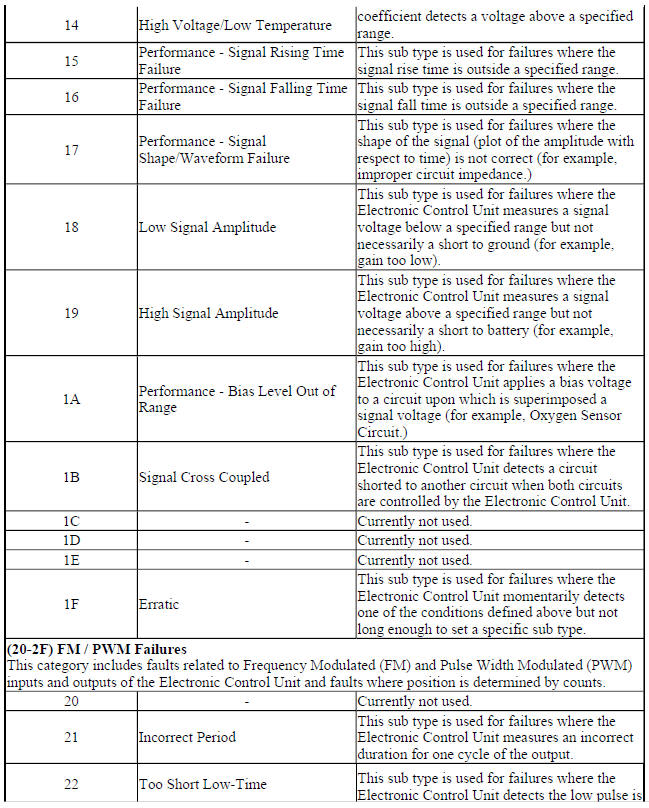

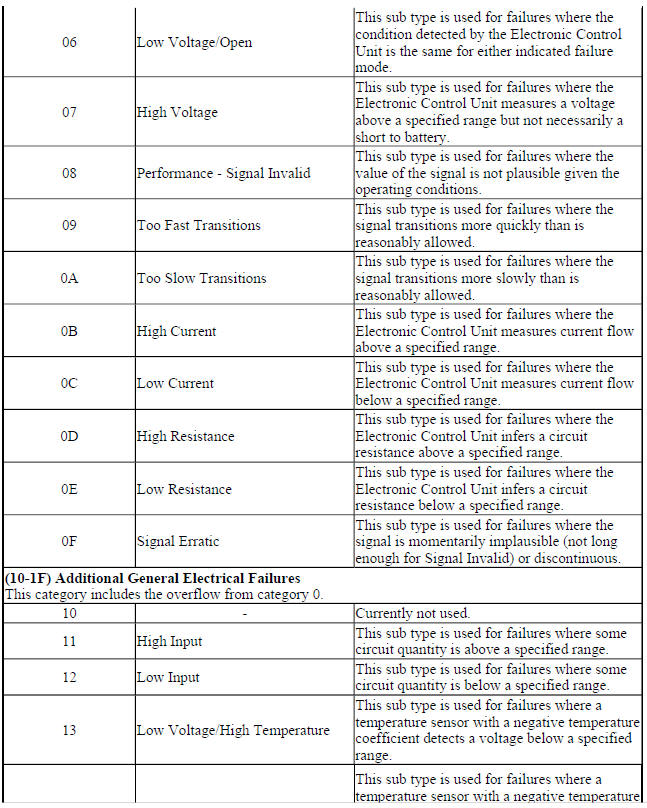

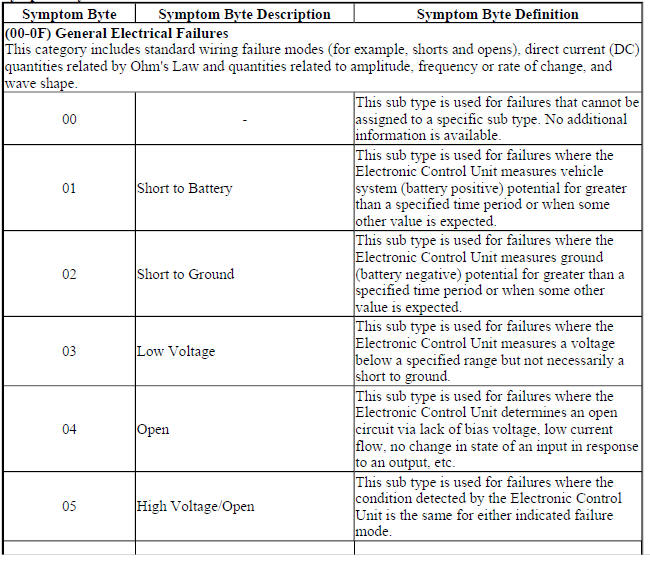

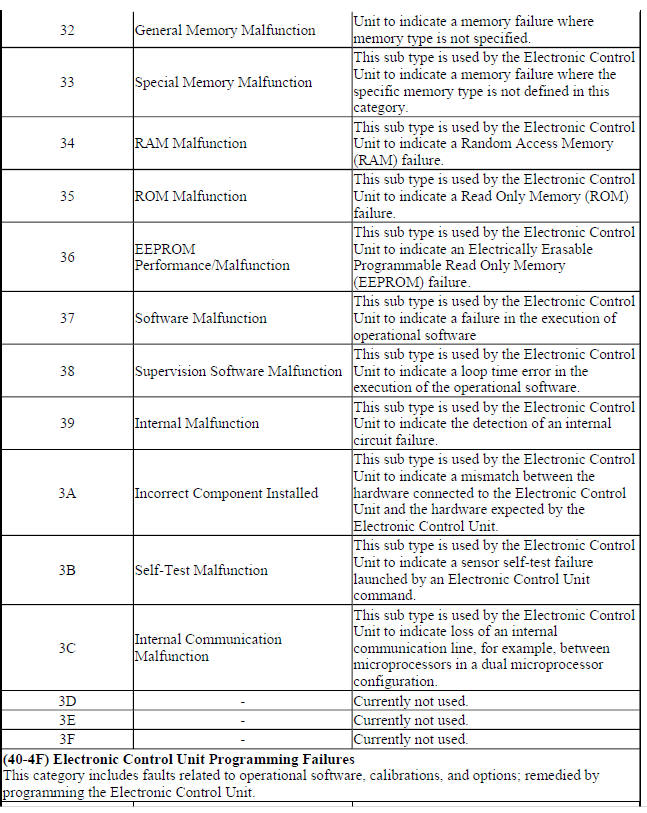

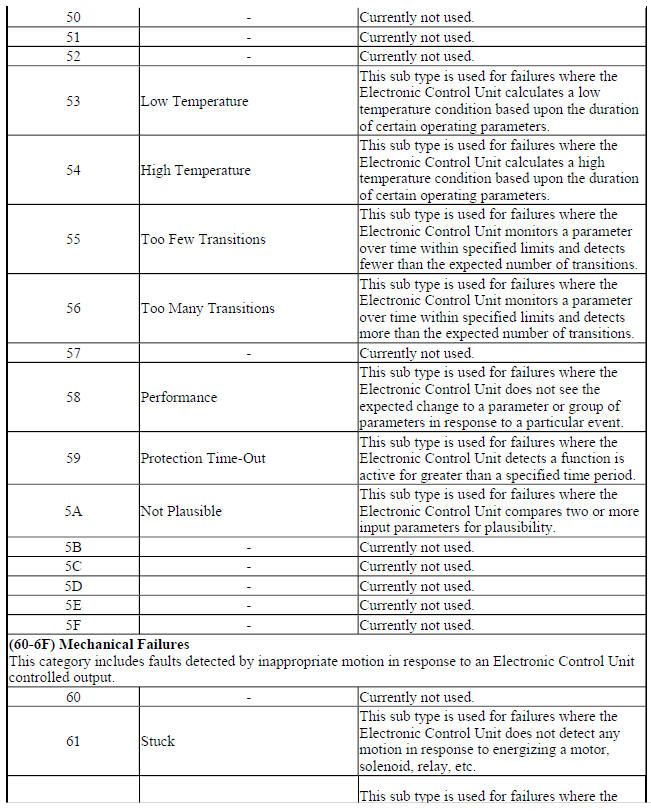

SYMPTOM BYTE LIST
Symptom Byte List
