Chevrolet Trax: Specifications

Chevrolet Trax (2013-2022) Workshop Manual / General Information & Maintenance / Vehicle Diagnostic Information - Diagnostic Information and Procedures / Specifications

BODY CONTROL MODULE SCAN TOOL INFORMATION

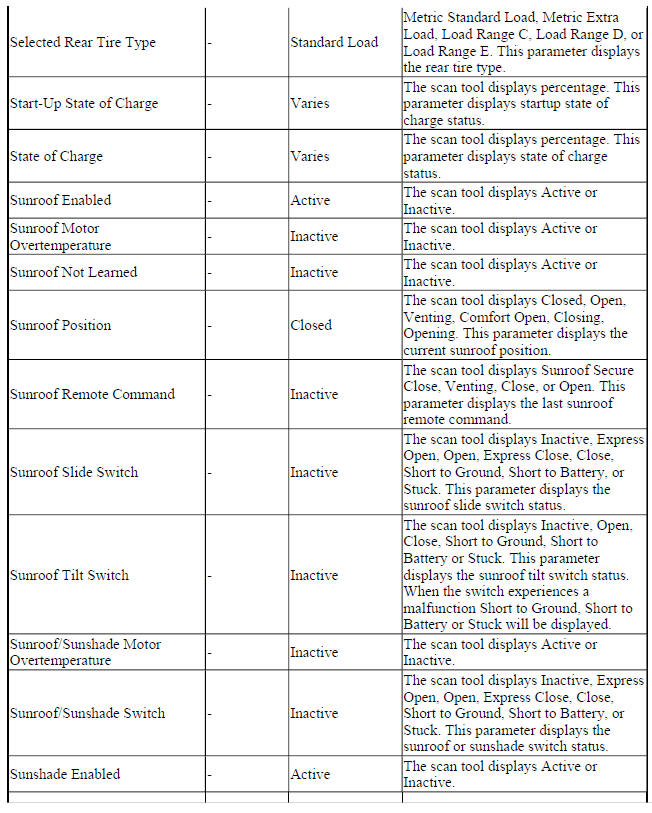

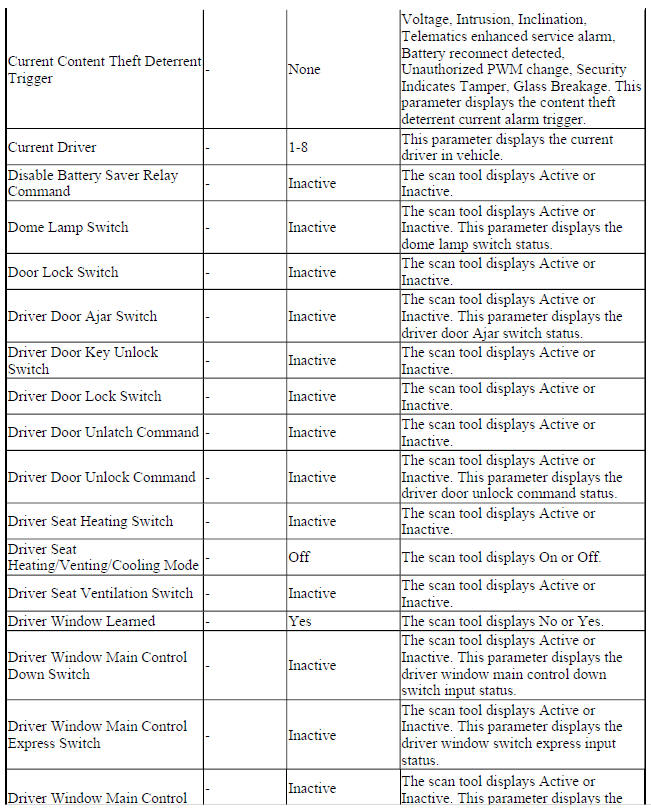

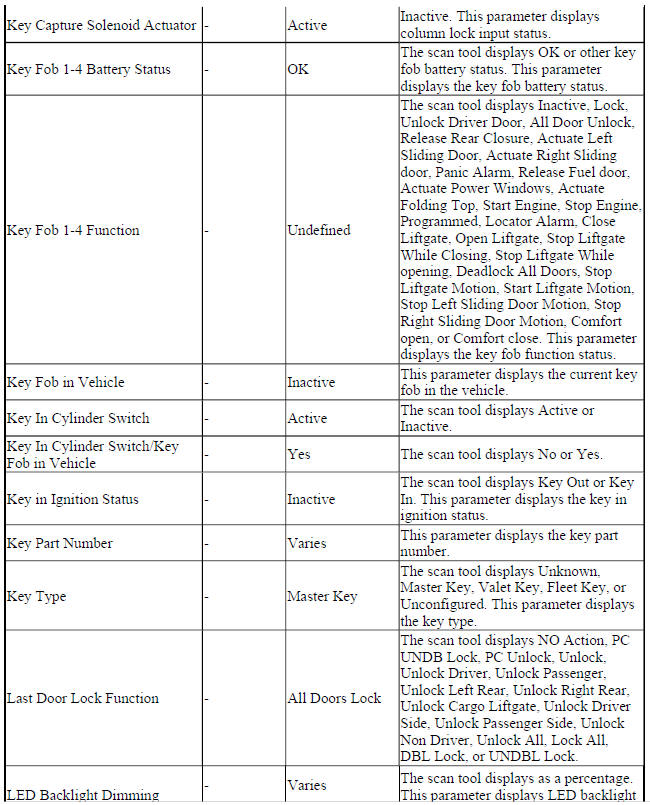

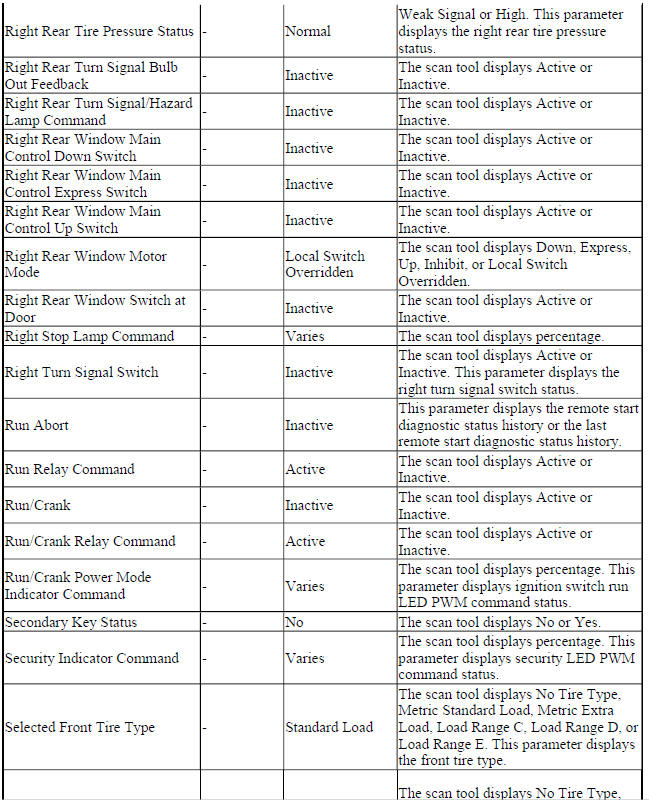

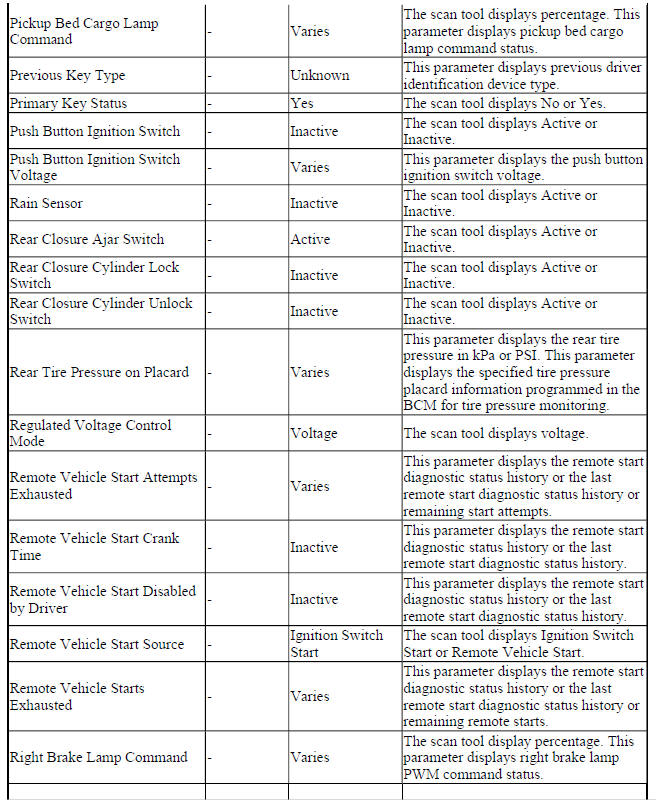

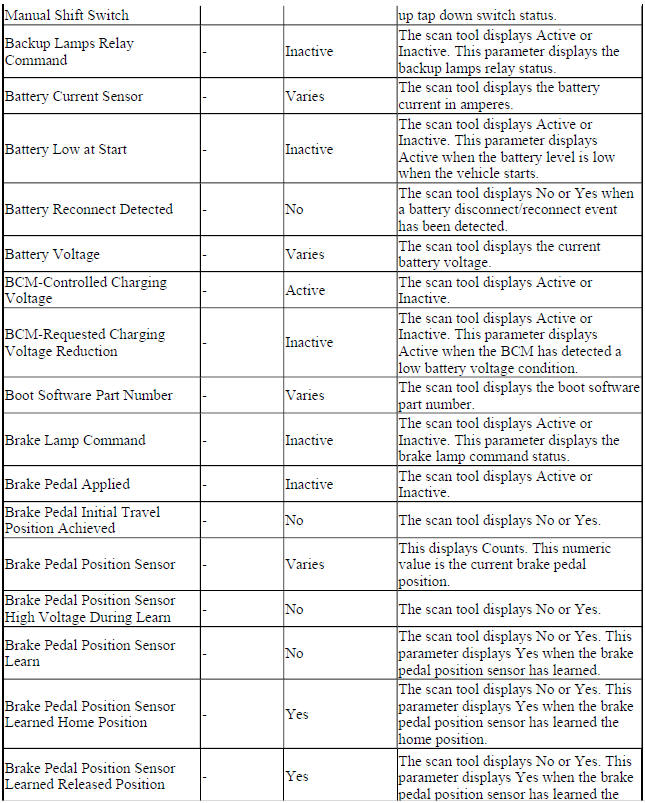

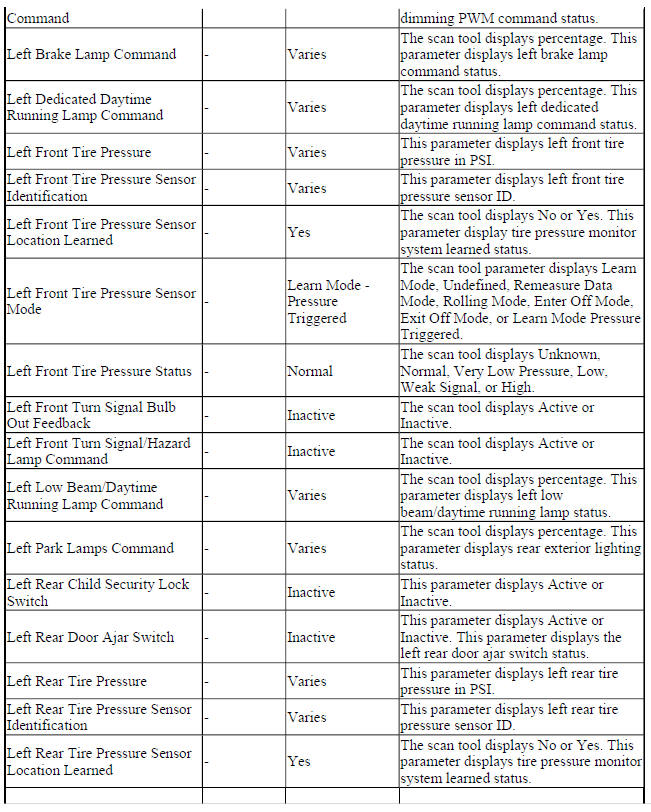

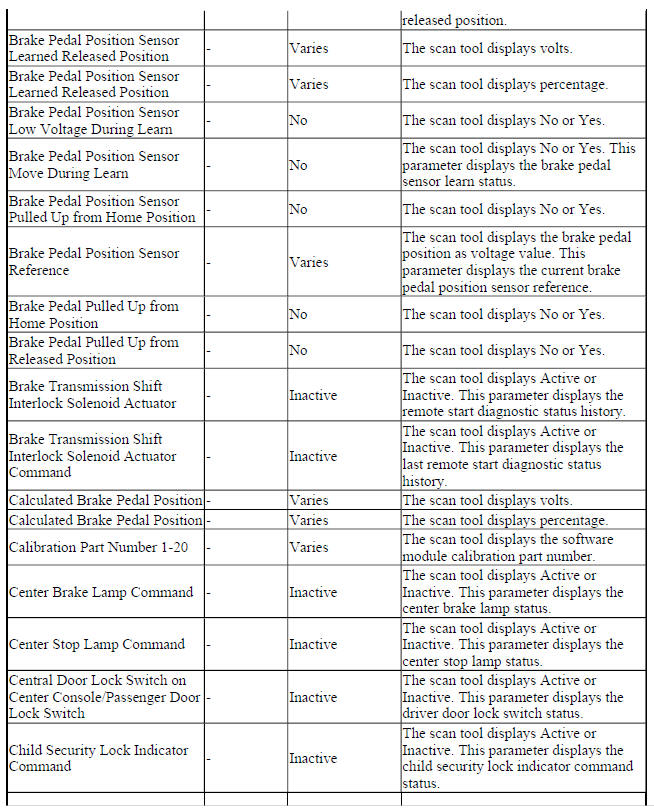

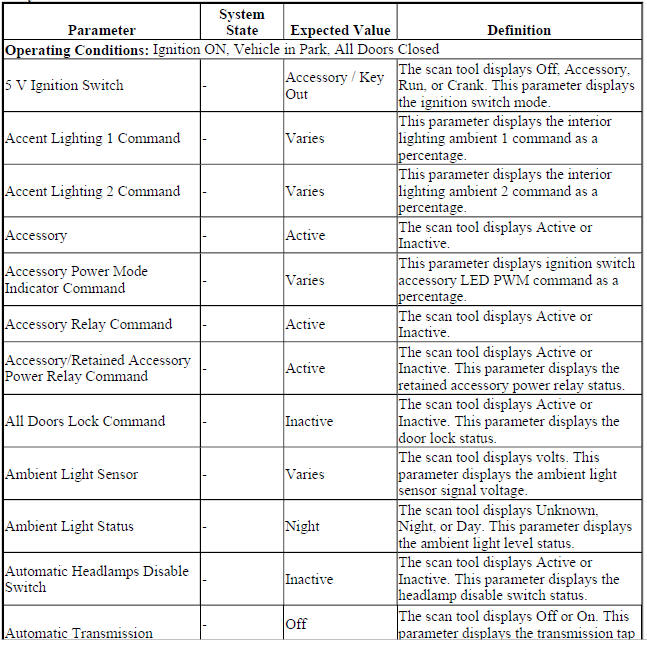

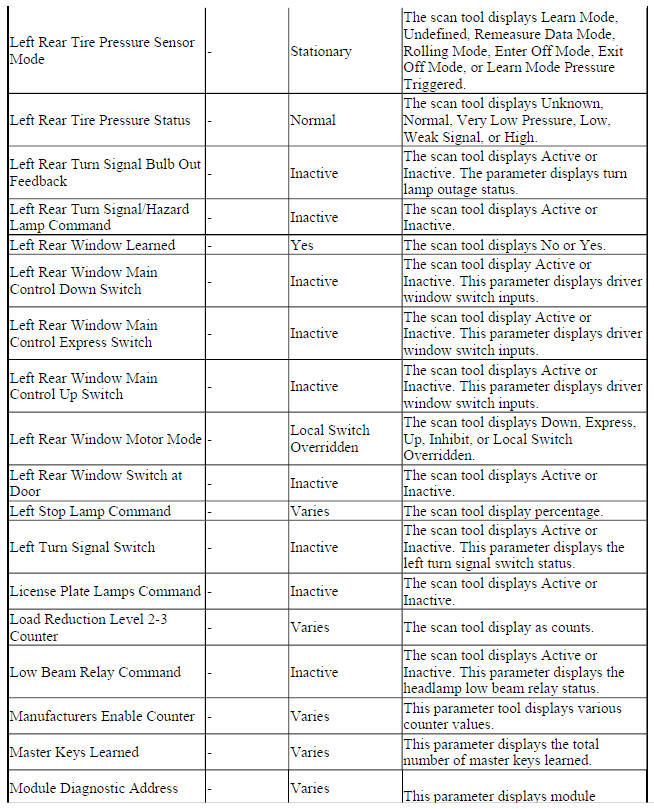

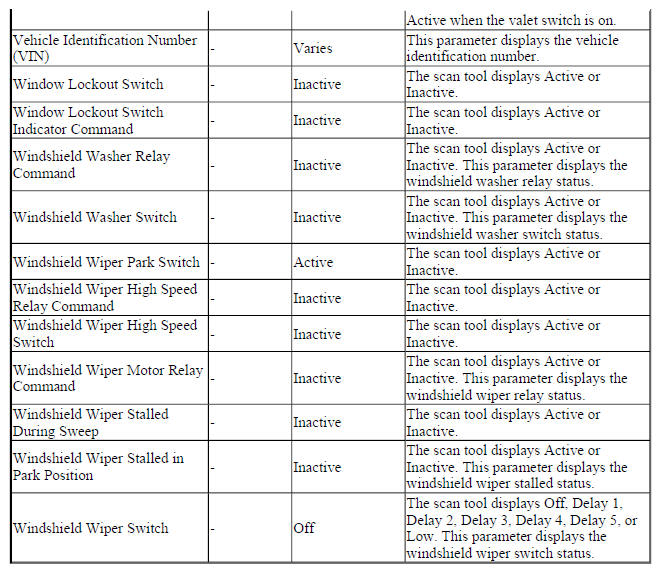

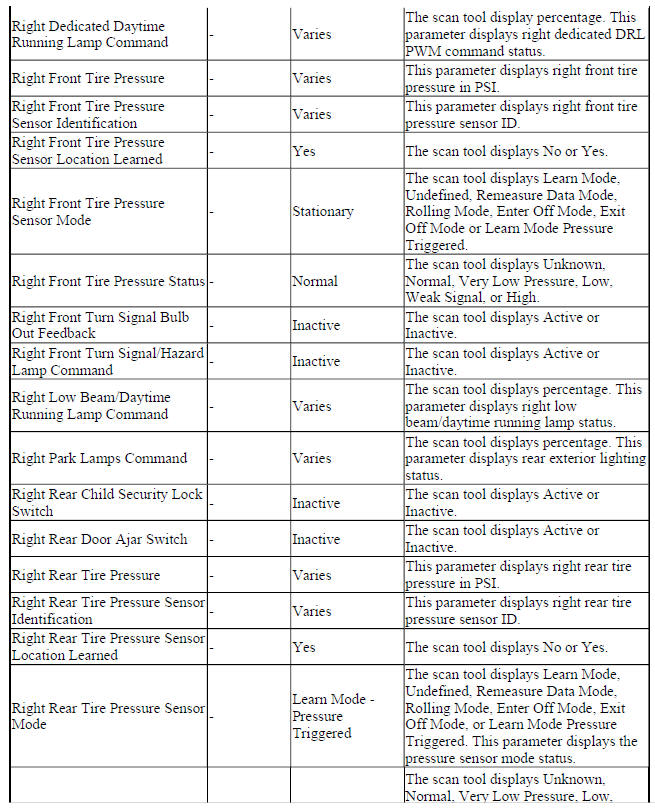

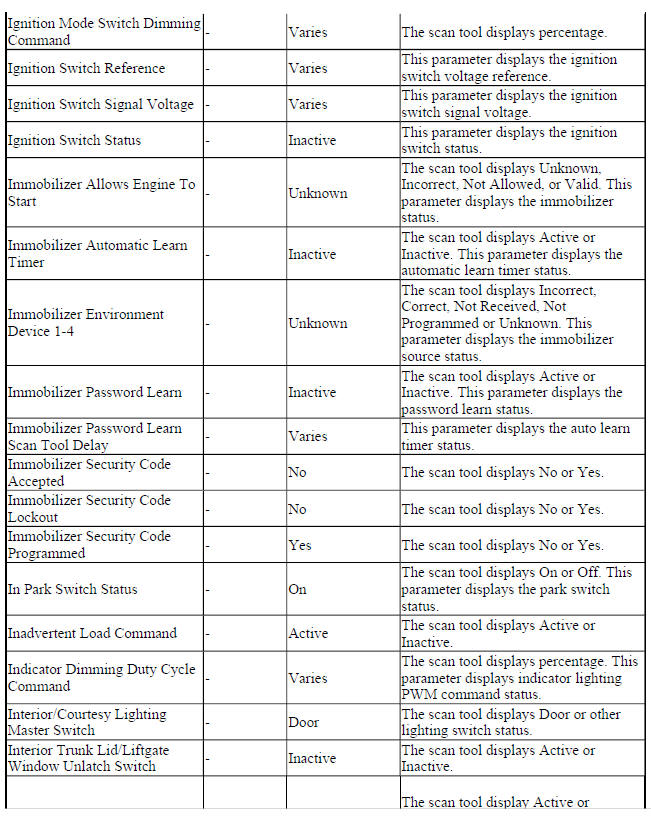

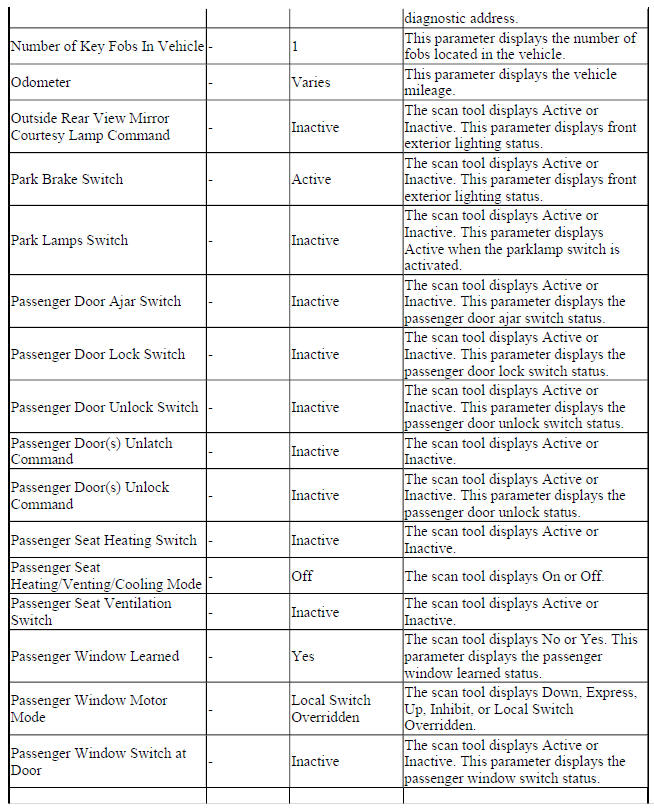

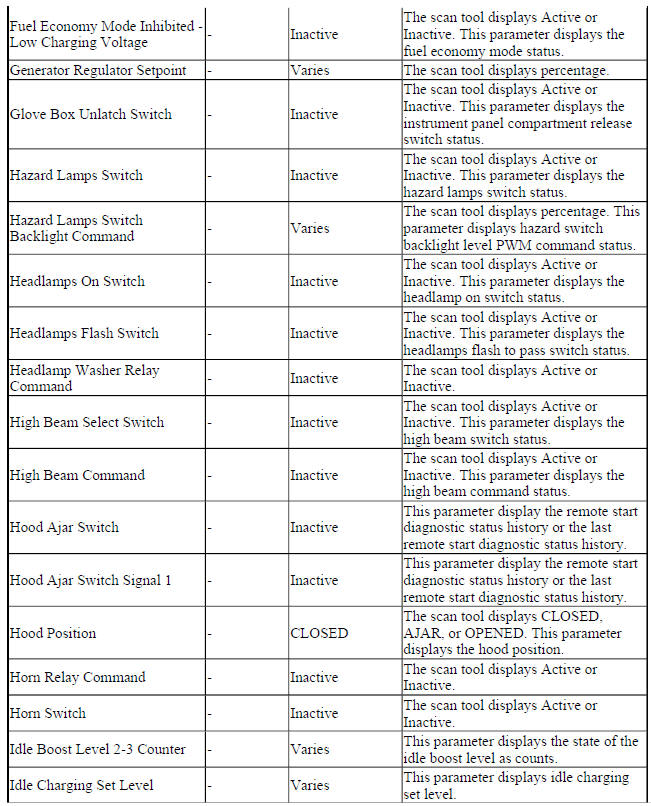

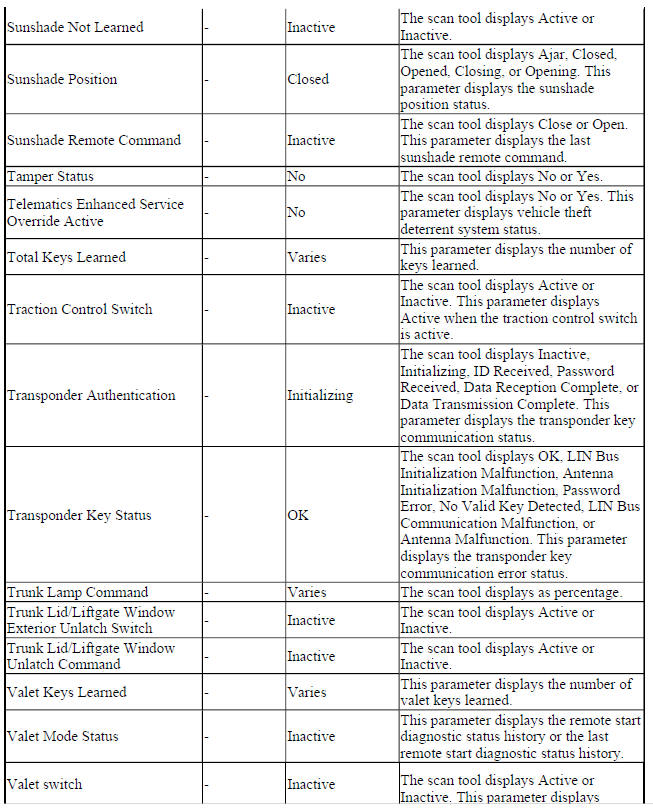

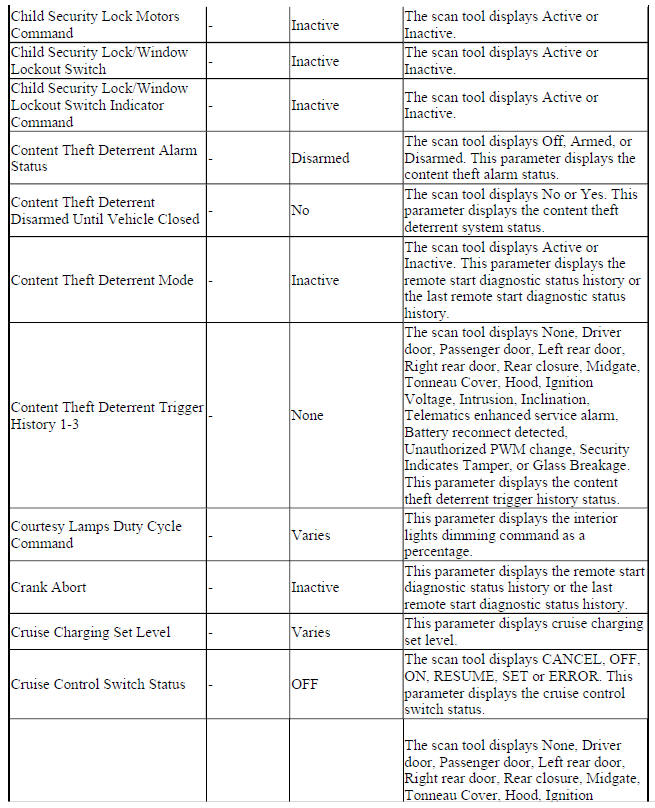

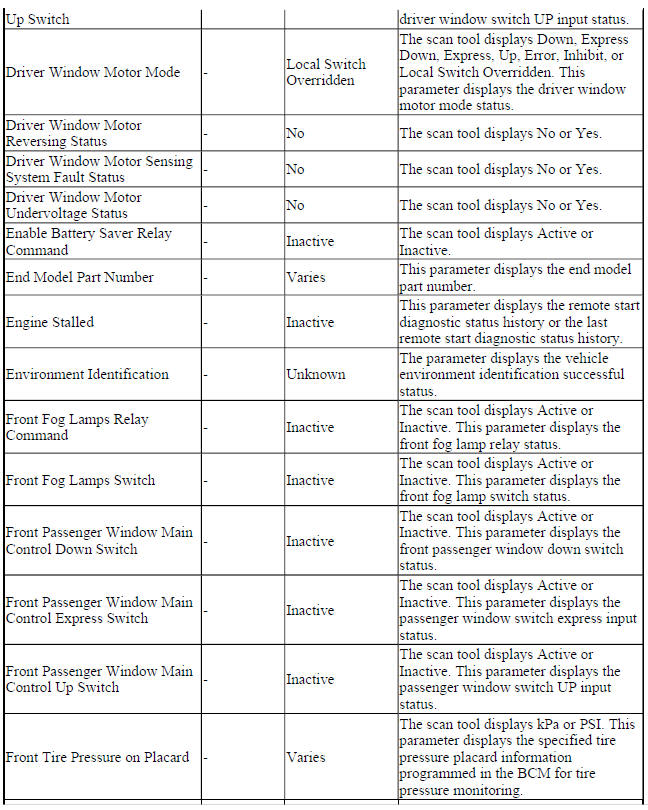

Body Control Module Scan Tool Data Parameters

Body Control Module Scan Tool Data Parameters

Body Control Module Scan Tool Data Parameters

Body Control Module Scan Tool Data Parameters

Body Control Module Scan Tool Data Parameters

Body Control Module Scan Tool Data Parameters

Body Control Module Scan Tool Data Parameters

Body Control Module Scan Tool Data Parameters

Body Control Module Scan Tool Data Parameters

Body Control Module Scan Tool Data Parameters

Body Control Module Scan Tool Data Parameters

Body Control Module Scan Tool Data Parameters

Body Control Module Scan Tool Data Parameters

Body Control Module Scan Tool Data Parameters

Body Control Module Scan Tool Data Parameters

Body Control Module Scan Tool Data Parameters

Body Control Module Scan Tool Data Parameters

Body Control Module Scan Tool Data Parameters

Body Control Module Scan Tool Data Parameters

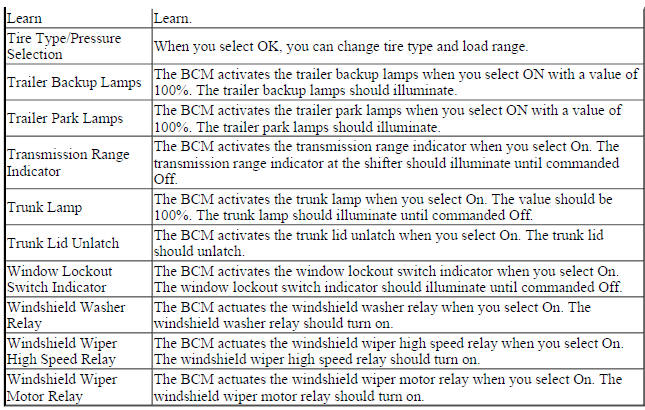

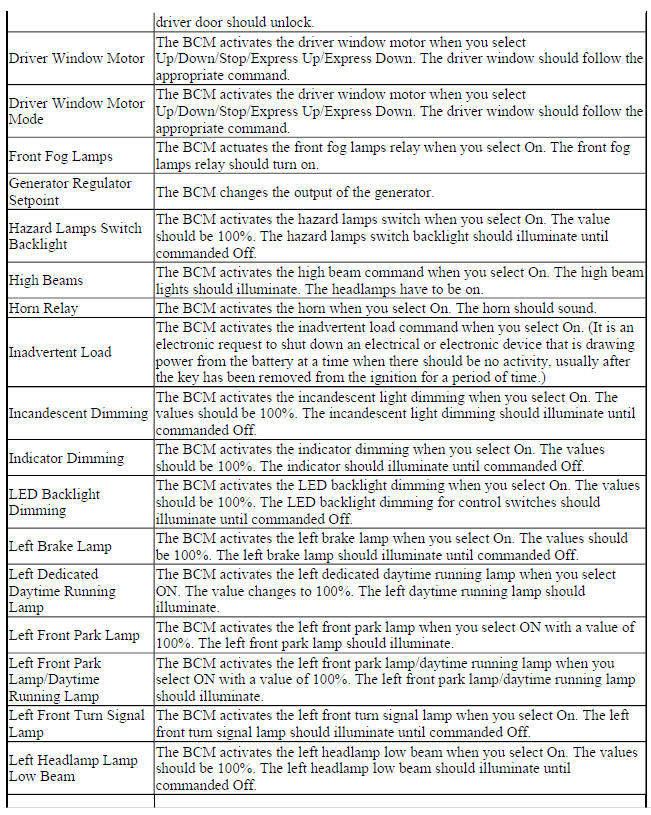

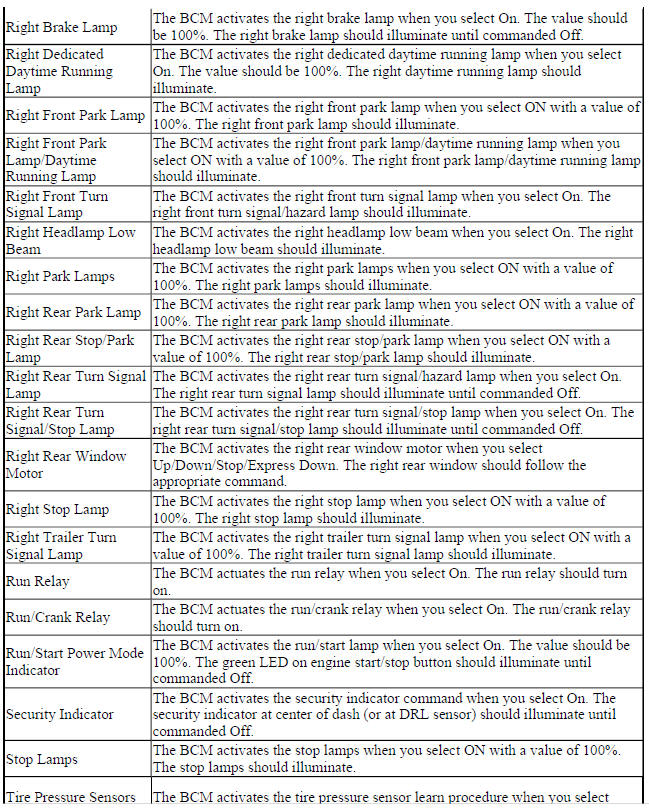

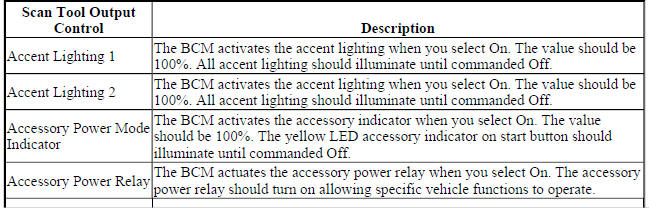

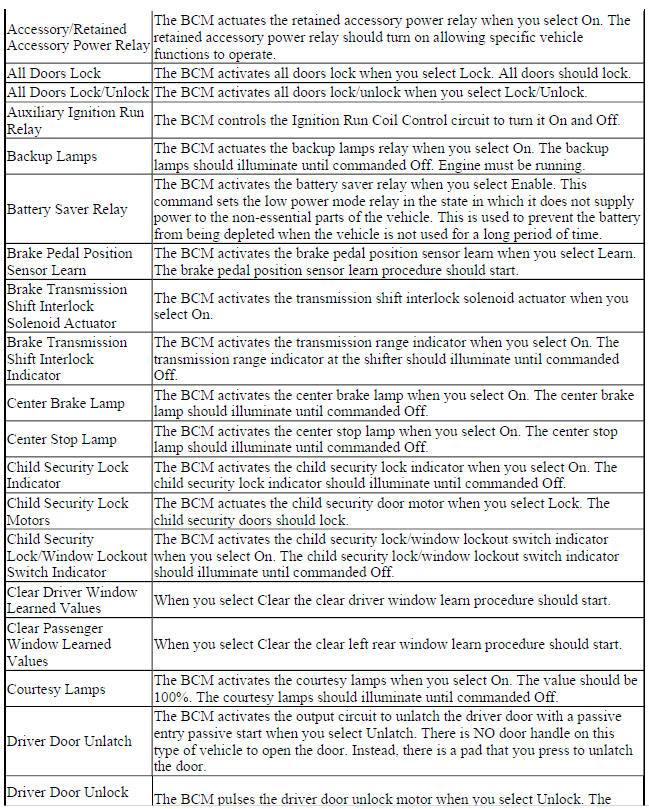

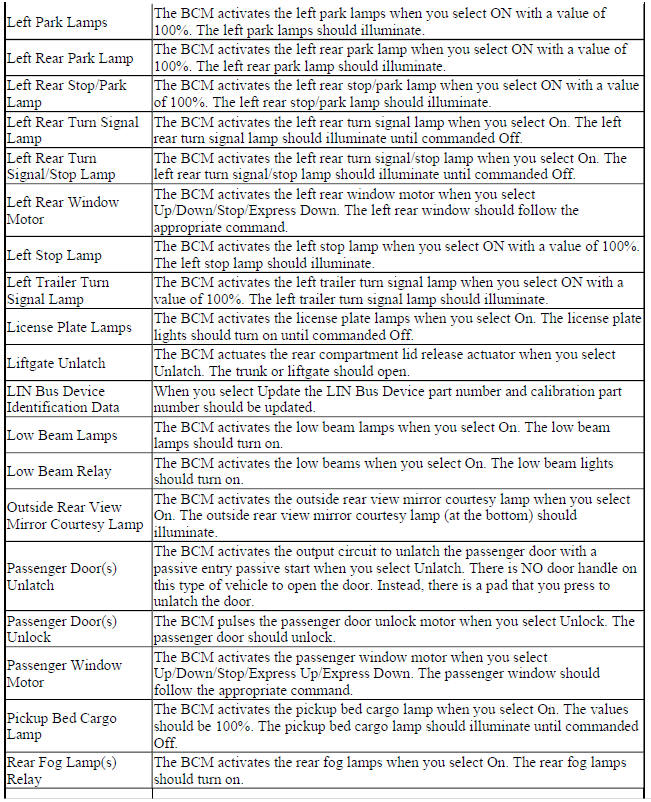

Body Control Module Scan Tool Output Controls

Body Control Module Scan Tool Output Controls

Body Control Module Scan Tool Output Controls

Body Control Module Scan Tool Output Controls

Body Control Module Scan Tool Output Controls

Body Control Module Scan Tool Output Controls

Body Control Module Scan Tool Output Controls

CHASSIS CONTROL MODULE SCAN TOOL INFORMATION

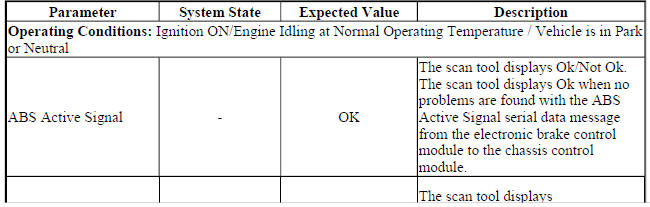

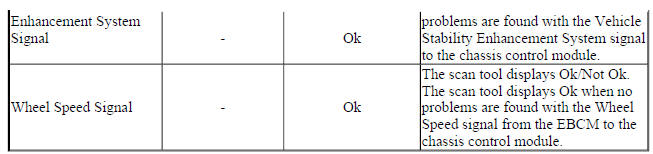

Chassis Control Module Scan Tool Data Parameters

Chassis Control Module Scan Tool Data Parameters

Chassis Control Module Scan Tool Data Parameters

Chassis Control Module Scan Tool Output Controls

Chassis Control Module Scan Tool Output Controls

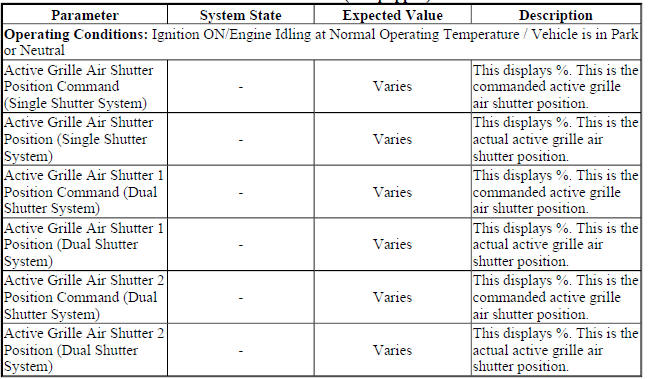

Active Grille Air Shutter Scan Tool Data Parameters (If Equipped)

Active Grille Air Shutter Scan Tool Data Parameters (If Equipped)

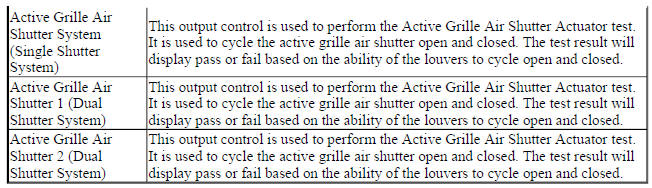

Active Grille Air Shutter Scan Tool Output Controls (If Equipped)

Active Grille Air Shutter Scan Tool Output Controls (If Equipped)

Active Grille Air Shutter Scan Tool Output Controls (If Equipped)

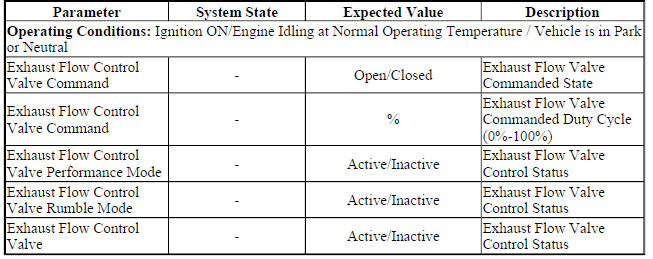

Exhaust Flow Control Valve Scan Tool Data Parameters (If Equipped)

Exhaust Flow Control Valve Scan Tool Data Parameters (If Equipped)

Exhaust Flow Control Valve Scan Tool Output Controls (If Equipped)

Exhaust Flow Control Valve Scan Tool Output Controls (If Equipped)

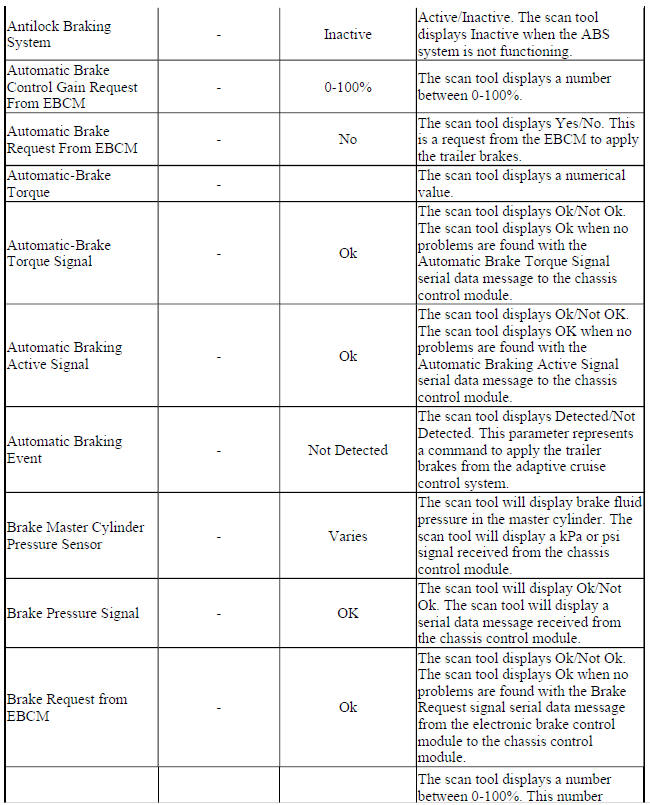

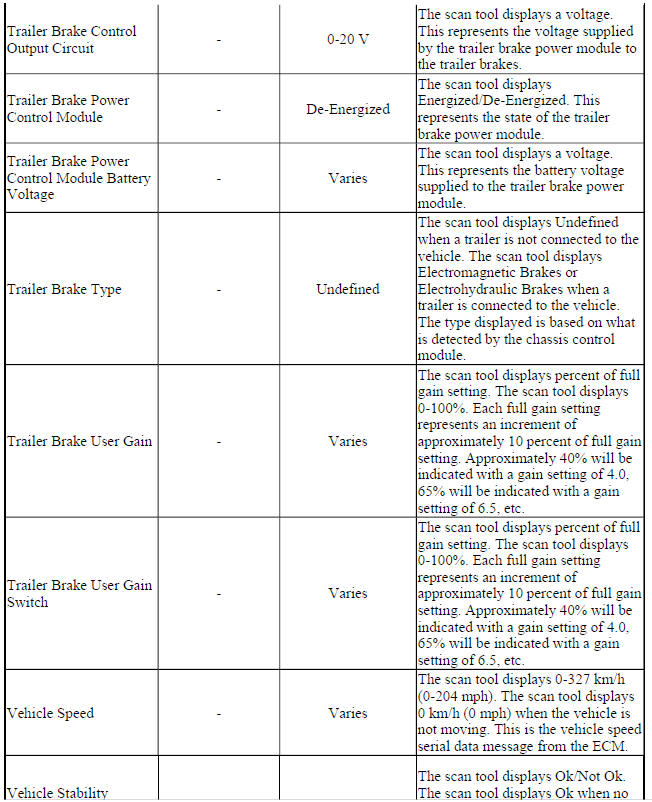

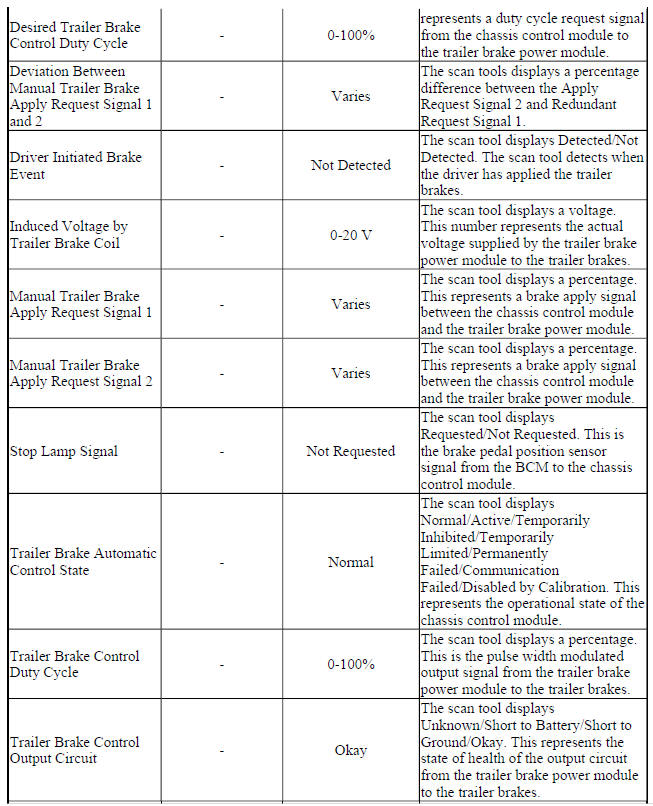

CCM Scan Tool Parameters for Trailer Brake Control System (If Equipped)

CCM Scan Tool Parameters for Trailer Brake Control System (If Equipped)

CCM Scan Tool Parameters for Trailer Brake Control System (If Equipped)

CCM Scan Tool Parameters for Trailer Brake Control System (If Equipped)

CCM Scan Tool Parameters for Trailer Brake Control System (If Equipped)

CCM Scan Tool Parameters for Trailer Brake Control System (If Equipped)

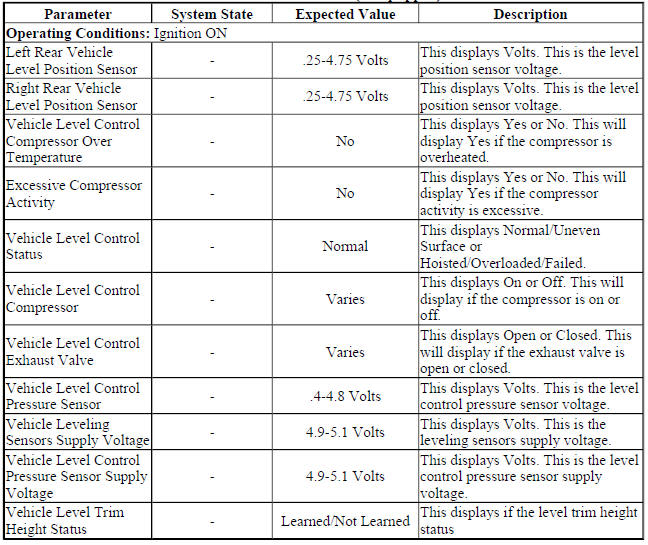

CCM Scan Tool Parameters for Vehicle Level Control (If Equipped)

CCM Scan Tool Parameters for Vehicle Level Control (If Equipped)

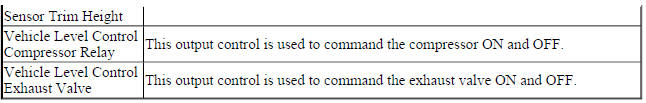

CCM Scan Tool Output Controls for Vehicle Level Control (If Equipped)

CCM Scan Tool Output Controls for Vehicle Level Control (If Equipped)

CCM Scan Tool Output Controls for Vehicle Level Control (If Equipped)
