Chevrolet Trax: Power brake booster pump bracket replacement

Chevrolet Trax (2013-2022) Workshop Manual / Brakes / Hydraulic Brakes / Repair instructions / Power brake booster pump bracket replacement

Removal Procedure

  1. Remove the power brake booster pump assembly. Refer to Power Brake Booster Pump Replacement.

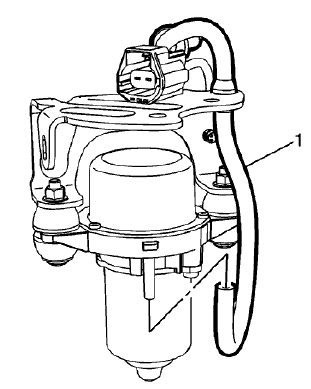

Fig. 187: Power Brake Booster Pump
Fig. 187: Power Brake Booster Pump

  1. Disconnect the power brake booster pump vent hose (1).
  2. Release the power brake booster pump electrical harness and retainer from the power brake booster pump bracket.

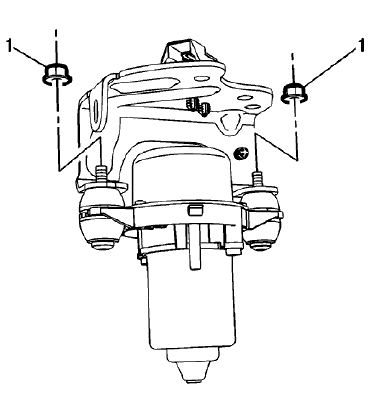

Fig. 188: Power Brake Booster Pump Nuts
Fig. 188: Power Brake Booster Pump Nuts

  1. Remove the power brake booster pump nuts (1).

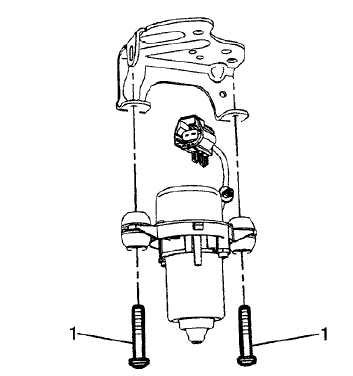

Fig. 189: Power Brake Booster Pump Bolts
Fig. 189: Power Brake Booster Pump Bolts

  1. Remove the power brake booster pump bolts (1).
  2. Remove the power brake booster pump bracket.

Installation Procedure

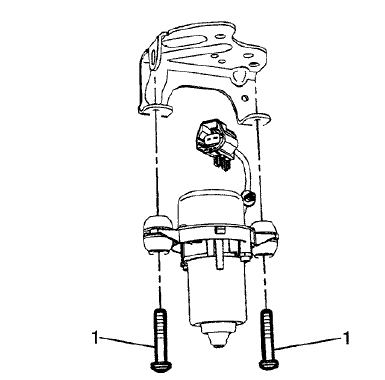

Fig. 190: Power Brake Booster Pump Bolts
Fig. 190: Power Brake Booster Pump Bolts

  1. Install the power brake booster pump bracket to the power brake booster pump.
  2. Install the power brake booster pump bolts (1).

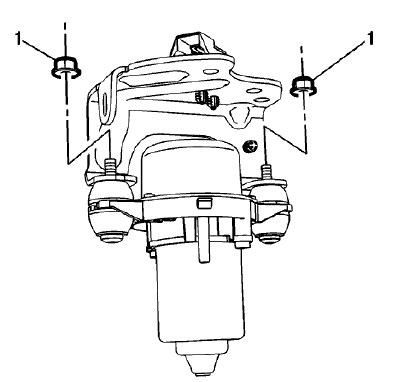

Fig. 191: Power Brake Booster Pump Nuts
Fig. 191: Power Brake Booster Pump Nuts

CAUTION: Refer to Fastener Caution .

  1. Install the power brake booster pump nuts (1) and tighten to 7 (62 lb in).

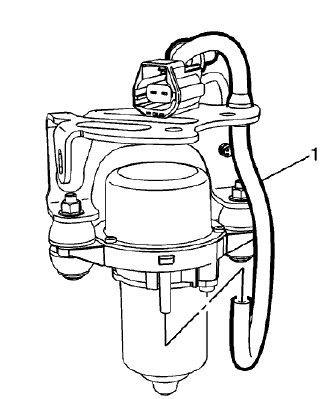

Fig. 192: Power Brake Booster Pump
Fig. 192: Power Brake Booster Pump

  1. Connect the power brake booster pump vent hose (1).
  2. Install the power brake booster pump electrical harness and retainer to the power brake booster pump bracket.
  3. Install the power brake booster pump. Refer to Power Brake Booster Pump Replacement.
