Chevrolet Trax: Engine Compartment Overview

Chevrolet Trax (2013-2022) Owner's Manual / Vehicle Care / Vehicle Checks / Engine Compartment Overview

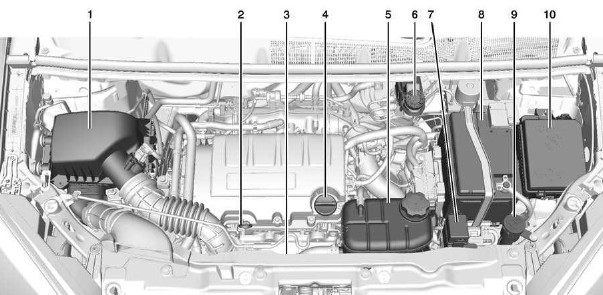

1.4L L4 Engine
1.4L L4 Engine

  1. Engine Air Cleaner/Filter
  2. Engine Oil Dipstick
  3. Engine Cooling Fan (Out of View). See Cooling System
  4. Engine Oil Fill Cap. See Engine Oil
  5. Engine Coolant Surge Tank and Pressure Cap. See Cooling System
  6. Brake/Clutch Fluid Reservoir.

    See Brakes on page 10-22 and Hydraulic Clutch

  7. Auxiliary Fuse Block. See Engine Compartment Fuse Block
  8. Battery
  9. Windshield Washer Fluid Reservoir. See Washer Fluid
  10. Engine Compartment Fuse Block

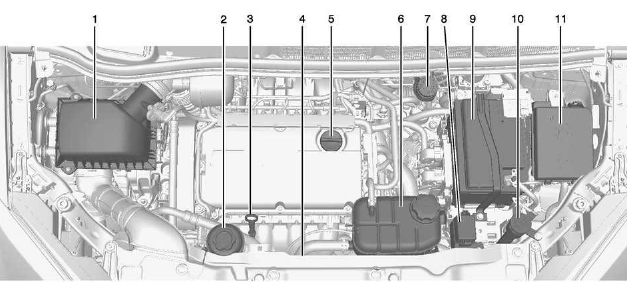

1.8L L4 Engine
1.8L L4 Engine

  1. Engine Air Cleaner/Filter
  2. Power Steering Fluid Reservoir.

    See Power Steering Fluid (1.4L L4 Engine) or Power Steering Fluid (1.8L L4 Engine)

  3. Engine Oil Dipstick. See Engine Oil
  4. Engine Cooling Fan (Out of View). See Cooling System
  5. Engine Oil Fill Cap. See Engine Oil
  6. Engine Coolant Surge Tank and Pressure Cap. See Cooling System
  7. Brake/Clutch Fluid Reservoir.

    See Brakes on page 10-22 and Hydraulic Clutch

  8. Auxiliary Fuse Block. See Engine Compartment Fuse Block
  9. Battery
  10. Windshield Washer Fluid Reservoir. See Washer Fluid
  11. Engine Compartment Fuse Block
