Chevrolet Trax: Charge air cooler inlet air hose replacement

Chevrolet Trax (2013-2022) Workshop Manual / Engine / Engine Controls and Fuel - 1.4L / Engine controls and fuel - 1.4l - Repair instructions / Charge air cooler inlet air hose replacement

Removal Procedure

  1. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Trax) , Front Bumper Fascia Replacement (Encore)

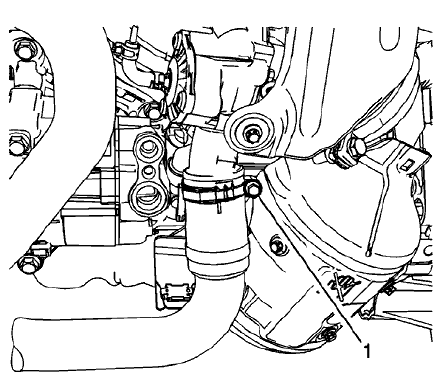

Fig. 109: Charge Air Cooler Inlet Air Hose Clamp
Fig. 109: Charge Air Cooler Inlet Air Hose Clamp

  1. Loosen the charge air cooler inlet air pipe clamp (1) at the turbocharger outlet.

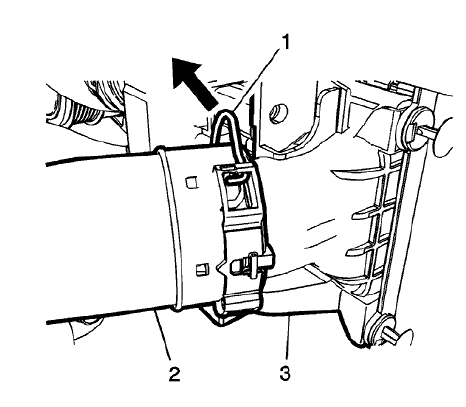

Fig. 110: Charge Air Cooler Inlet Retainer Spring
Fig. 110: Charge Air Cooler Inlet Retainer Spring

  1. Unclip the retainer spring (1) at the charge air cooler inlet.
  2. Remove the charge air cooler inlet air hose (2) from the charge air cooler (3) and remove the hose from the vehicle.

Installation Procedure

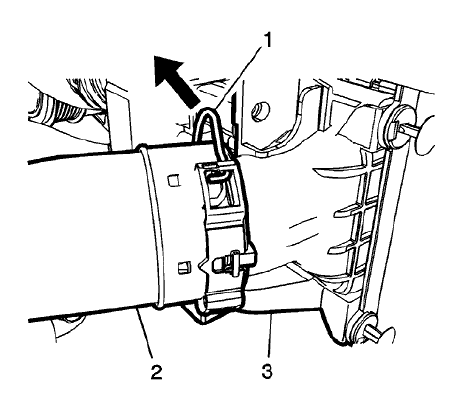

Fig. 111: Charge Air Cooler Inlet Retainer Spring
Fig. 111: Charge Air Cooler Inlet Retainer Spring

  1. Install the charge air cooler inlet air hose (2) to charge air cooler (3).
  2. Clip the in retainer spring (1).

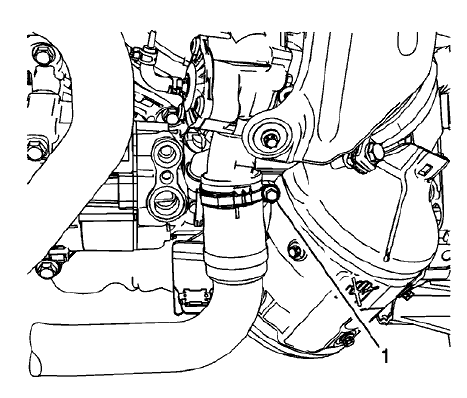

Fig. 112: Charge Air Cooler Inlet Air Hose Clamp
Fig. 112: Charge Air Cooler Inlet Air Hose Clamp

  1. Install the charge air cooler inlet air pipe to the turbocharger outlet.

CAUTION: Refer to Fastener Caution .

  1. Tighten the clamp (1).
  2. Install the front bumper fascia. Refer to Front Bumper Fascia Replacement (Trax) , Front Bumper Fascia Replacement (Encore) .

CHARGE AIR COOLER OUTLET AIR HOSE REPLACEMENT

Removal Procedure

  1. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Trax) , Front Bumper Fascia Replacement (Encore) .
  2. Disconnect the intake air pressure and temperature sensor electrical connector.

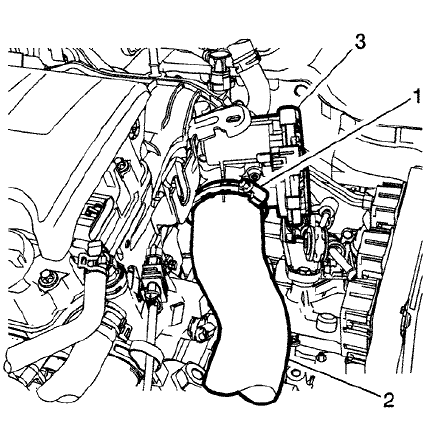

Fig. 113: Charge Air Cooler Outlet Air Hose, Throttle Body & Clamp
Fig. 113: Charge Air Cooler Outlet Air Hose, Throttle Body & Clamp

  1. Loosen the clamp (1) at the charge air cooler outlet pipe (2) to throttle body (3).

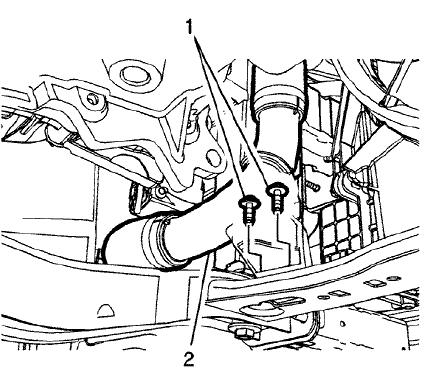

Fig. 114: Charge Air Cooler Outlet Air Pipe To Frame Bracket
Fig. 114: Charge Air Cooler Outlet Air Pipe To Frame Bracket

  1. Remove the fasteners (1) from the charge air cooler outlet air pipe to frame bracket (2).

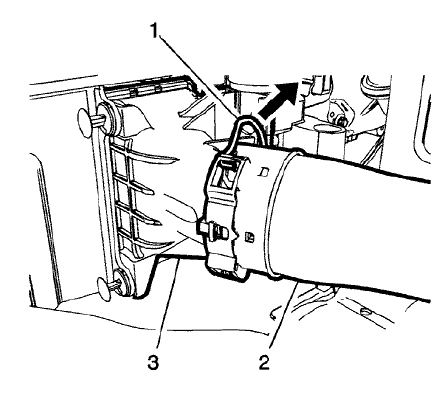

Fig. 115: Charge Air Cooler, Outlet Air Hose & Retainer Spring
Fig. 115: Charge Air Cooler, Outlet Air Hose & Retainer Spring

  1. Unclip the retainer spring (1).
  2. Remove the charge air cooler outlet air hose (2) from the charge air cooler (3).

Installation Procedure

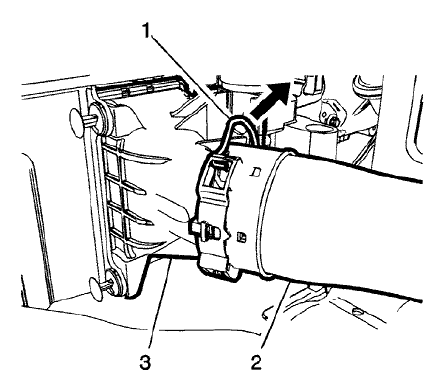

Fig. 116: Charge Air Cooler, Outlet Air Hose & Retainer Spring
Fig. 116: Charge Air Cooler, Outlet Air Hose & Retainer Spring

  1. Install the charge air cooler outlet air hose (2) to charge air cooler (3).
  2. Clip the in retainer spring (1).

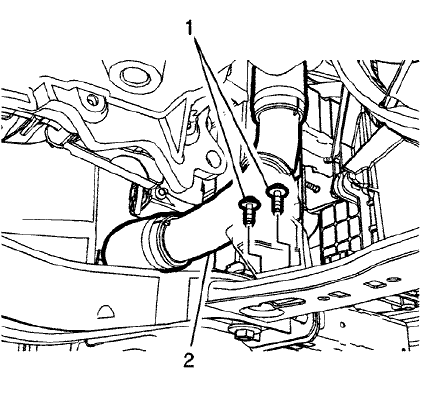

Fig. 117: Charge Air Cooler Outlet Air Pipe To Frame Bracket
Fig. 117: Charge Air Cooler Outlet Air Pipe To Frame Bracket

  1. Install the fasteners (1) to the charge air cooler outlet air pipe to frame bracket (2).

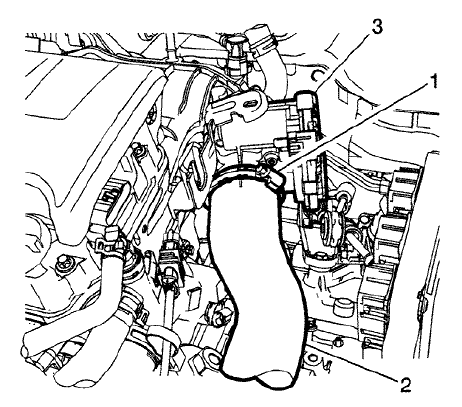

Fig. 118: Charge Air Cooler Outlet Air Hose, Throttle Body & Clamp
Fig. 118: Charge Air Cooler Outlet Air Hose, Throttle Body & Clamp

  1. Install the charge air cooler inlet air pipe to the turbocharger.

CAUTION: Refer to Fastener Caution .

  1. Tighten the clamp (1).
  2. Connect the intake air pressure and temperature sensor electrical connector.
  3. Install the front bumper fascia. Refer to Front Bumper Fascia Replacement (Trax) , Front Bumper Fascia Replacement (Encore) .

CHARGE AIR BYPASS REGULATOR SOLENOID VALVE REPLACEMENT

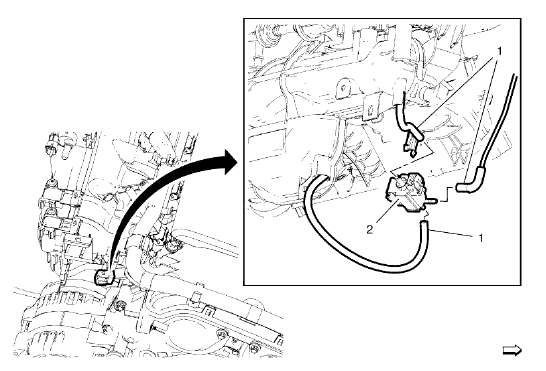

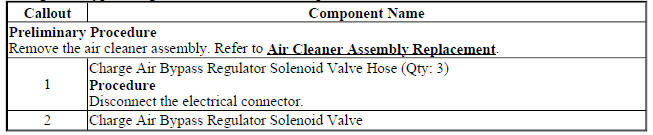

Fig. 119: Charge Air Bypass Regulator Solenoid Valve
Fig. 119: Charge Air Bypass Regulator Solenoid Valve

Charge Air Bypass Regulator Solenoid Valve Replacement

Charge Air Bypass Regulator Solenoid Valve Replacement
