Chevrolet Trax: Schematic wiring diagrams

Chevrolet Trax (2013-2022) Workshop Manual / Engine / Engine Heating and Cooling / Schematic wiring diagrams

SPECIFICATIONS

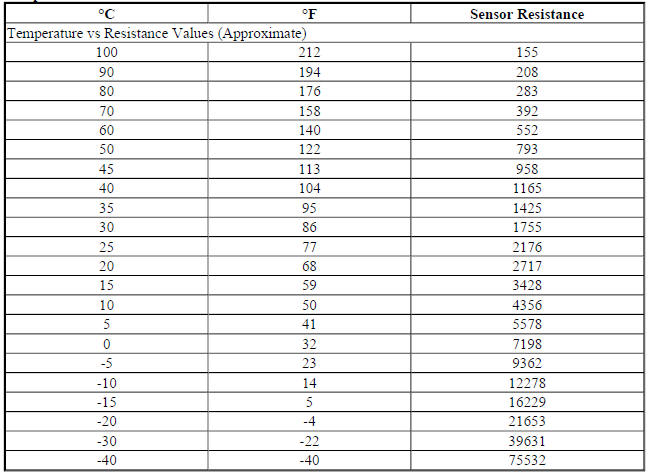

TEMPERATURE VERSUS RESISTANCE

Temperature Versus Resistance

Temperature Versus Resistance

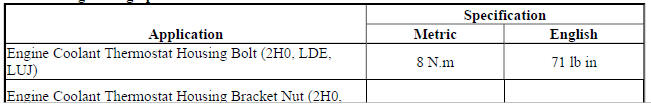

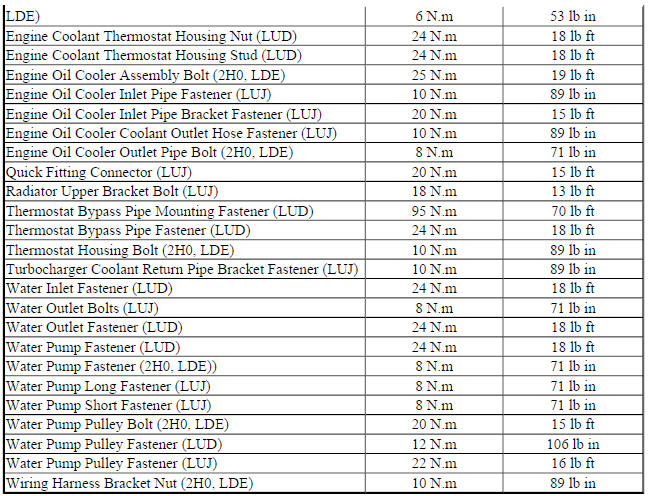

Fastener Tightening Specifications

Fastener Tightening Specifications

Fastener Tightening Specifications

SCHEMATIC WIRING DIAGRAMS

ENGINE HEATING/COOLING WIRING SCHEMATICS (ENCORE)

Engine Cooling

Fig. 1: Engine Cooling System
Fig. 1: Engine Cooling System

ENGINE HEATING/COOLING WIRING SCHEMATICS (TRAX)

Engine Cooling System (LUJ or LUV)

Fig. 2: Engine Cooling System (LUJ or LUV)
Fig. 2: Engine Cooling System (LUJ or LUV)

Engine Cooling System (2H0)

Fig. 3: Engine Cooling System (2H0)
Fig. 3: Engine Cooling System (2H0)
