Chevrolet Trax: Air conditioning clutch assembly replacement (LUJ, LUV)

Chevrolet Trax (2013-2022) Workshop Manual / HVAC & Restraints / Heating, Ventilation, and Air Conditioning / Repair instructions / Air conditioning clutch assembly replacement (LUJ, LUV)

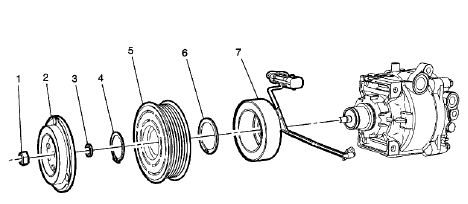

Fig. 5: Air Conditioning Clutch Assembly (LUJ, LUV)
Fig. 5: Air Conditioning Clutch Assembly (LUJ, LUV)

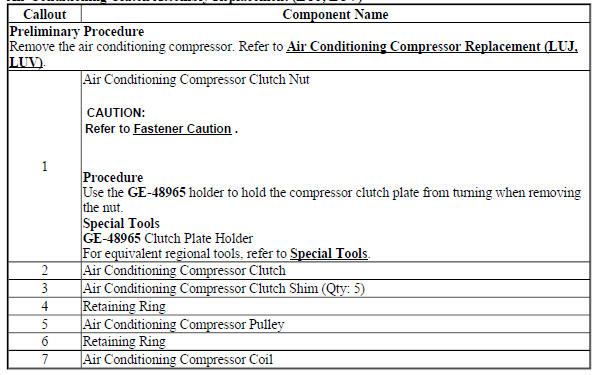

Air Conditioning Clutch Assembly Replacement (LUJ, LUV)

Air Conditioning Clutch Assembly Replacement (LUJ, LUV)

AIR CONDITIONING CLUTCH ASSEMBLY REPLACEMENT (2H0)

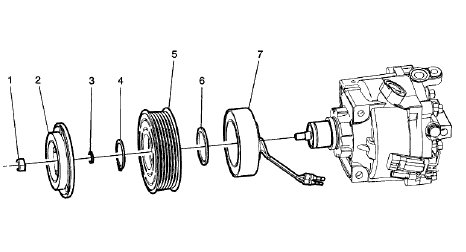

Fig. 6: Air Conditioning Clutch Assembly
Fig. 6: Air Conditioning Clutch Assembly

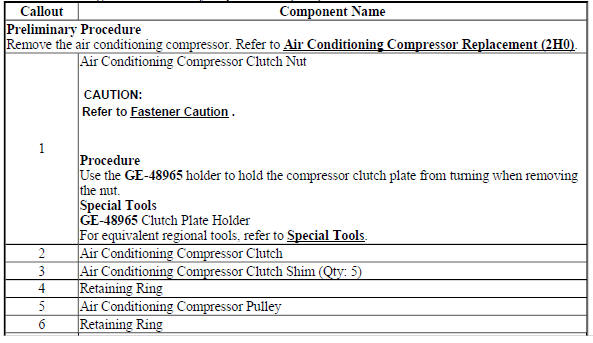

Air Conditioning Clutch Assembly Replacement (2H0)

Air Conditioning Clutch Assembly Replacement (2H0)

Air Conditioning Clutch Assembly Replacement (2H0)

COMPRESSOR PRESSURE RELIEF VALVE REPLACEMENT (LUJ, LUV)

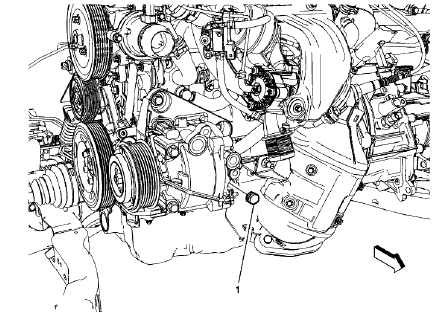

Fig. 7: Compressor Pressure Relief Valve (LUJ, LUV)
Fig. 7: Compressor Pressure Relief Valve (LUJ, LUV)

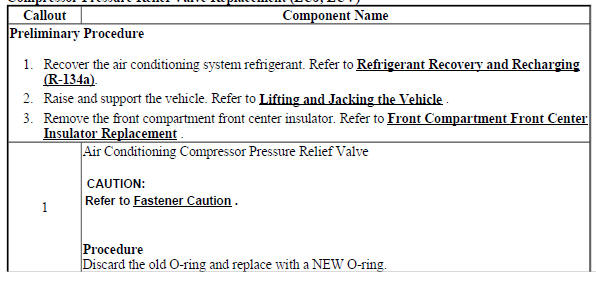

Compressor Pressure Relief Valve Replacement (LUJ, LUV)

Compressor Pressure Relief Valve Replacement (LUJ, LUV)

COMPRESSOR PRESSURE RELIEF VALVE REPLACEMENT (2HO)

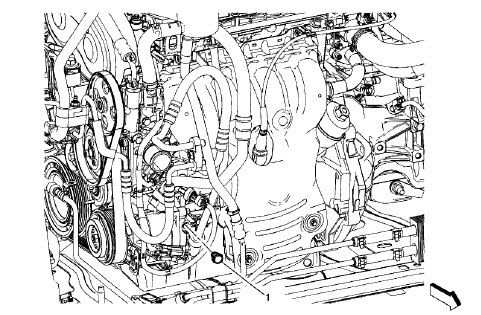

Fig. 8: Compressor Pressure Relief Valve (2HO)
Fig. 8: Compressor Pressure Relief Valve (2HO)

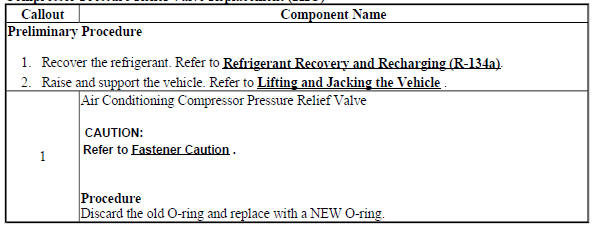

Compressor Pressure Relief Valve Replacement (2HO)

Compressor Pressure Relief Valve Replacement (2HO)

AIR CONDITIONING COMPRESSOR BRACKET REPLACEMENT (LUJ, LUV)

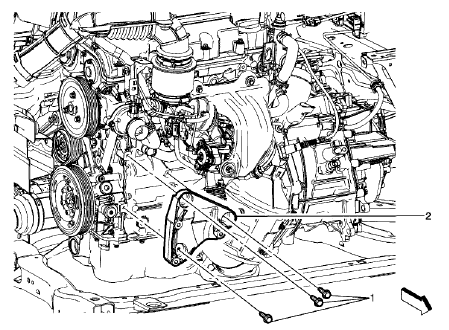

Fig. 9: Air Conditioning Compressor Bracket
Fig. 9: Air Conditioning Compressor Bracket

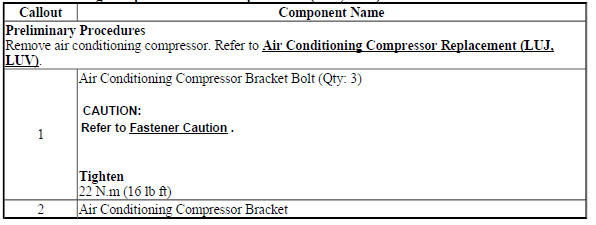

Air Conditioning Compressor Bracket Replacement (LUJ, LUV)

Air Conditioning Compressor Bracket Replacement (LUJ, LUV)

AIR CONDITIONING COMPRESSOR BRACKET REPLACEMENT (2H0)

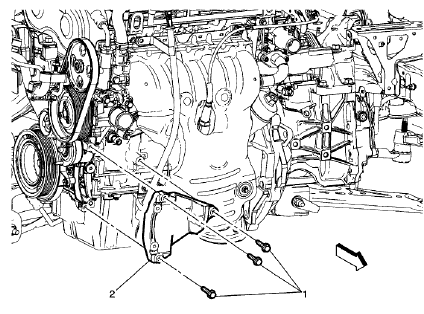

Fig. 10: Air Conditioning Compressor Bracket
Fig. 10: Air Conditioning Compressor Bracket

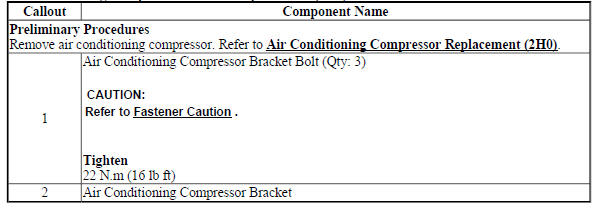

Air Conditioning Compressor Bracket Replacement (2H0)

Air Conditioning Compressor Bracket Replacement (2H0)
