Chevrolet Trax: Turn and Lane-Change Signals
.gif)

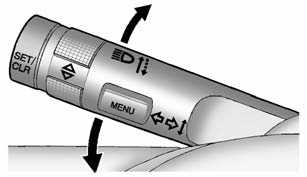

Move the lever all the way up or down to signal a turn.
An arrow on the instrument cluster will flash in the direction of the turn or lane change.
Raise or lower the lever until the arrow starts to flash to signal a lane change. The turn signal flashes three times.
The lever returns to its starting position when it is released.
If after signaling a turn or lane change the arrow flashes rapidly or does not come on, a signal bulb may be burned out. Replace any burned out bulbs. If a bulb is not burned out, check the fuse. See Fuses and Circuit Breakers
Front Fog Lamps
.gif)

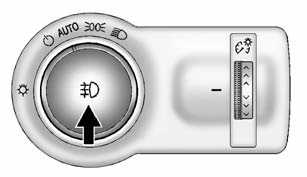

If the vehicle is equipped with front fog lamps, the button is on the outboard side of the instrument panel.
The ignition must be on to turn on the fog lamps.
.gif)
(Front Fog Lamps): Press to
turn the fog lamps on or off. An
indicator light on the instrument
cluster comes on when the fog
lamps are on.
The fog lamps come on together with the parking lamps.
If the high-beam headlamps are turned on, the fog lamps will turn off.
If the high-beam headlamps are turned off, the fog lamps will turn back on again.
Some localities have laws that require the headlamps to be on along with the fog lamps.
