Chevrolet Trax: Instrument panel upper trim panel replacement (trax)

Removal Procedure

  1. Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement (Trax).
  2. Remove the windshield defroster outlet duct. Refer to Windshield Defroster Outlet Duct Replacement .

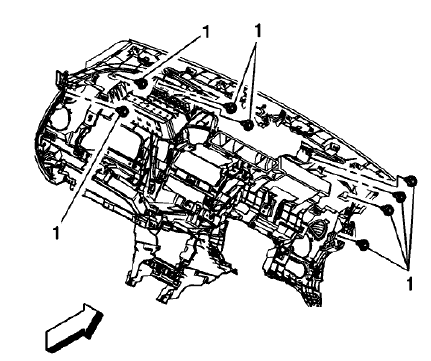

Fig. 12: Instrument Panel Bolts
Fig. 12: Instrument Panel Bolts

  1. Remove the instrument panel bolts (1).

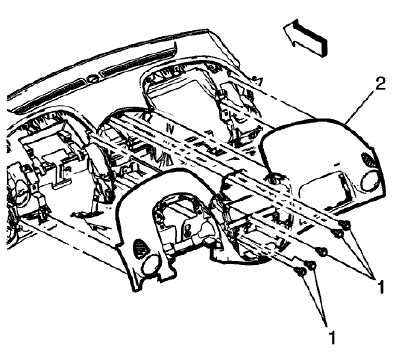

Fig. 13: Instrument Panel Assembly Upper Trim Panel
Fig. 13: Instrument Panel Assembly Upper Trim Panel

  1. Remove the instrument panel bolts (1).
  2. Use a flat bladed plastic trim tool to aid in the removal of the upper trim panel from the instrument panel assembly.
  3. Transfer the airbag instrument panel module. Refer to Airbag Instrument Panel Module Replacement

Installation Procedure

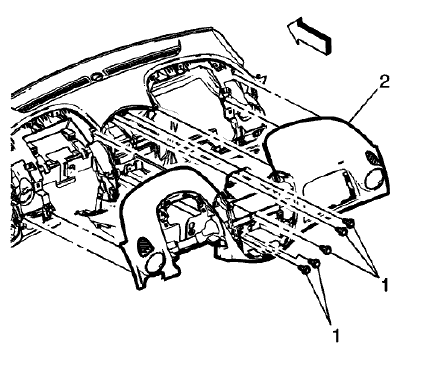

Fig. 14: Instrument Panel Assembly Upper Trim Panel
Fig. 14: Instrument Panel Assembly Upper Trim Panel

CAUTION: Refer to Fastener Caution .

  1. Install the instrument panel bolts (1).

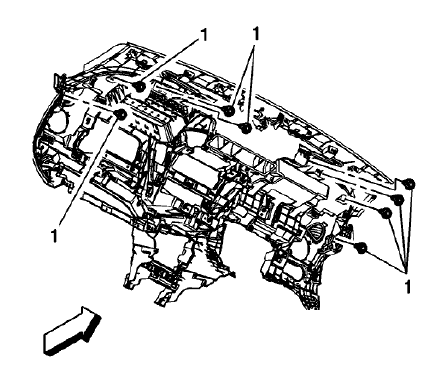

Fig. 15: Instrument Panel Bolts
Fig. 15: Instrument Panel Bolts

  1. Install the instrument panel bolts (1).
  2. Install the windshield defroster outlet duct. Refer to Windshield Defroster Outlet Duct Replacement .
  3. Install the instrument panel. Refer to Instrument Panel Assembly Replacement (Trax).
