Chevrolet Trax: Instrument panel retainer replacement - right side (encore)

Chevrolet Trax (2013-2022) Workshop Manual / Accessories & Equipment / Instrument Panel and Console Trim / Instrument Panel and Console Trim - Repair instructions / Instrument panel retainer replacement - right side (encore)

Removal Procedure

  1. Remove the right instrument panel outer air outlet. Refer to Instrument Panel Outer Air Outlet Replacement (Encore) .
  2. Remove the right instrument panel outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement (Encore).
  3. Remove the instrument panel upper compartment. Refer to Instrument Panel Upper Compartment Replacement (Encore).
  4. Remove the radio control. Refer to Radio Control Assembly Replacement .
  5. Remove the instrument panel center air outlet. Refer to Instrument Panel Center Air Outlet Replacement (Encore) .

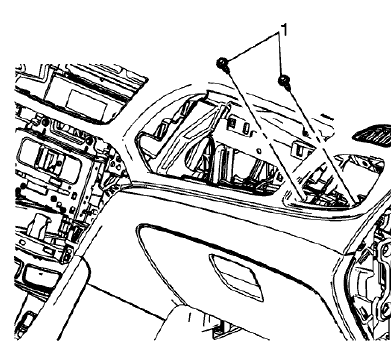

Fig. 102: Instrument Panel Upper Trim Panel
Fig. 102: Instrument Panel Upper Trim Panel

  1. Remove the bolts (1) to loosen the instrument panel upper trim panel.

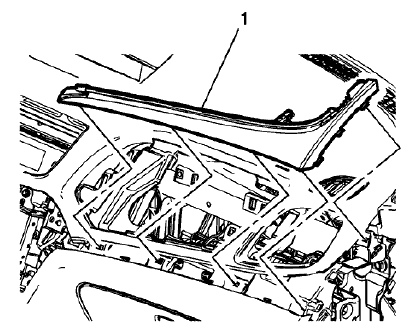

Fig. 103: Right Instrument Panel Retainer
Fig. 103: Right Instrument Panel Retainer

  1. Use a flat bladed plastic trim tool to aid in the removal of the right instrument panel retainer (1) from the instrument panel assembly.
  2. Disconnect the electrical connection.
  3. Carefully lift up the instrument panel upper trim panel enough to remove the instrument panel retainer (1).

Installation Procedure

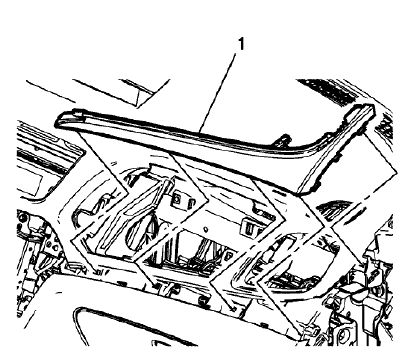

Fig. 104: Right Instrument Panel Retainer
Fig. 104: Right Instrument Panel Retainer

  1. Install the instrument panel retainer (1) to the instrument panel assembly.
  2. Connect the electrical connection.

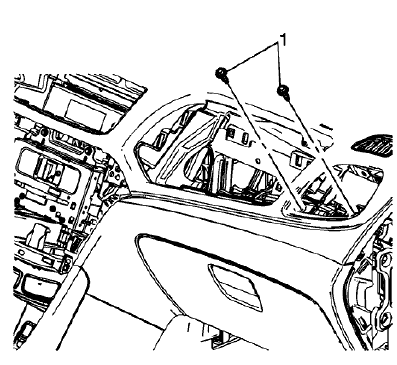

Fig. 105: Instrument Panel Upper Trim Panel
Fig. 105: Instrument Panel Upper Trim Panel

CAUTION: Refer to Fastener Caution

  1. Install the bolts (1) to the instrument panel upper trim panel and radio control assembly.
  2. Install the instrument panel center air outlet. Refer to Instrument Panel Center Air Outlet Replacement (Encore) .
  3. Install the radio control. Refer to Radio Control Assembly Replacement .
  4. Install the instrument panel upper compartment. Refer to Instrument Panel Upper Compartment Replacement (Encore).
  5. Install the left instrument panel outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement (Encore).
  6. Install the left instrument panel outer air outlet. Refer to Instrument Panel Outer Air Outlet Replacement (Encore) .
