Chevrolet Trax: Luggage Rack and Roof Trim
Chevrolet Trax (2013-2022) Workshop Manual / Accessories & Equipment / Luggage Rack and Roof Trim
SPECIFICATIONS
FASTENER TIGHTENING SPECIFICATIONS
Fastener Tightening Specifications
REPAIR INSTRUCTIONS
LUGGAGE CARRIER SIDE RAIL REPLACEMENT (TRAX)
.gif)

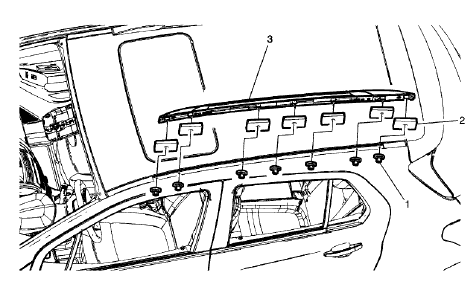

Fig. 1: Luggage Carrier Side Rail

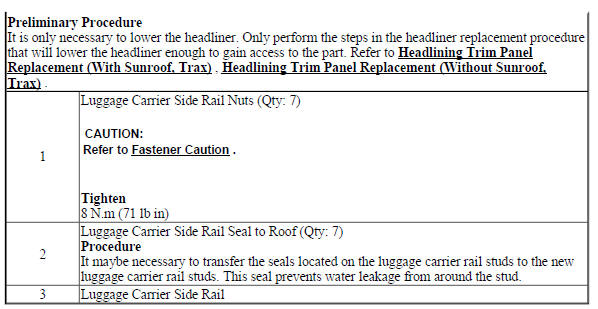

Luggage Carrier Side Rail Replacement (Trax)
.jpg)
