Instrument Panel Fuse Block

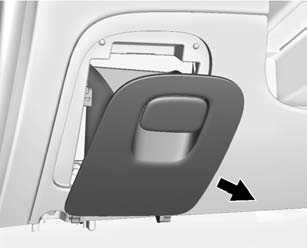

The instrument panel fuse block is on the underside of the driver side instrument panel. To access the fuses, remove the storage compartment. To remove the storage compartment, push in on both side and pull it out.

Instrument Panel Fuse Block

The vehicle may not be equipped with all of the fuses, relays, and features shown.

Mini Fuses    Usage

  1. Body Control Module 1
  2. Body Control Module 2
  3. Body Control Module 3
  4. Body Control Module 4
  5. Body Control Module 5
  6. Body Control Module 6
  7. Body Control Module 7
  8. Body Control Module 8
  9. Discrete Logic Ignition Switch
  10.  Sensing Diagnostic Module Battery
  11.  Data Link Connector
  12. Heater, Ventilation, and Air Conditioning MDL
  13. Liftgate Relay
  14. UPA Module
  15. Inside Rearview Mirror
  16. Not Used
  17. Driver Power Window Switch
  18. Rain Sensor
  19. Body Control Module Regulated Voltage Control
  20. Steering Wheel Switch Backlighting
  21.  A/C Accessory Power Outlet
  22. Cigar Lighter/DC Accessory Power Outlet
  23. Spare
  24.  Spare
  25. Spare
  26. Automatic Occupant Sensing Display
  27. IPC/Compass Module
  28. Headlamp Switch// DC Converter/Clutch Switch
  29. Spare
  30. Spare
  31. IPC Battery
  32. Radio/Chime
  33. Display
  34. OnStar (If Equipped)/VLBS

S/B Fuses   Usage

  1. PTC 1
  2. PTC 2
  3. Power Window Motor Front
  4. Power Window Motor Rear
  5. Logistic Mode Relay
  6. Spare
  7. Front Power Windows
  8. Rear Power Windows

Circuit Breaker    Usage

CB1 Spare

Midi Fuse   Usage

M01 PTC

Relays Usage

01 Accessory/Retained Accessory Power

02 Liftgate

03 Spare

04 Blower Relay

05 Logistic Mode
