Rear Compartment Fuse Block

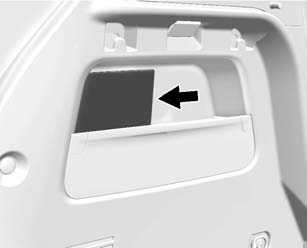

The rear compartment fuse block is behind a cover on the left side of the rear compartment. To access the fuses, remove the cover.

The vehicle may not be equipped with all of the fuses, relays, and features shown.

Rear Compartment Fuse Block

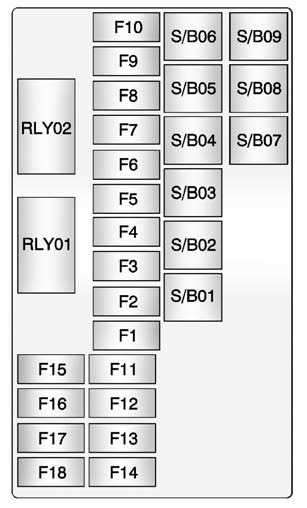

Mini Fuses  Usage

  1. Driver Seat Power Lumbar Switch
  2. Passenger Seat Power Lumbar Switch
  3. Amplifier
  4. Trailer Socket
  5. All-Wheel Drive Module
  6. Automatic Occupant Sensing Module
  7. Spare/LPG Module Battery
  8. Trailer Parking Lamps
  9. Spare
  10. Spare/Side Blind Zone Alert Module
  11. Trailer Module
  12. Nav Dock
  13. Heated Steering Wheel
  14. Trailer Socket
  15. EVP Switch
  16. Water In Fuel Sensor
  17. Inside Rearview Mirror/Regulated Voltage Control
  18. Spare/LPG Module Run/Crank

S/B Fuses Usage

  1.  Driver Power Seat Switch/Memory Module
  2. Passenger Power Seat Switch
  3. Trailer Module
  4. A/C-D/C Inverter
  5. Battery
  6. Headlamp Washer
  7. Spare
  8. Spare
  9. Spare

Relays   Usage

  1. Ignition Relay
  2. Run Relay
