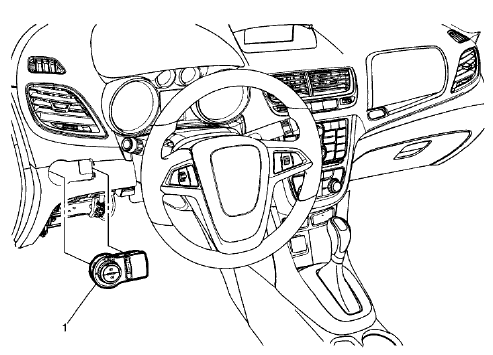

Fig. 5: Headlamp Switch
Fig. 5: Headlamp Switch

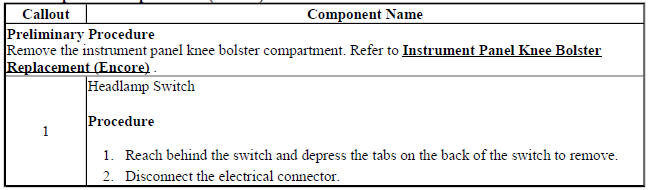

Headlamp Switch Replacement (Encore)

Headlamp Switch Replacement (Encore)

HEADLAMP SWITCH REPLACEMENT (TRAX)

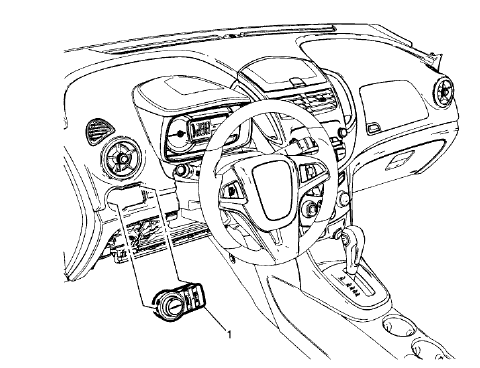

Fig. 6: Headlamp Switch
Fig. 6: Headlamp Switch

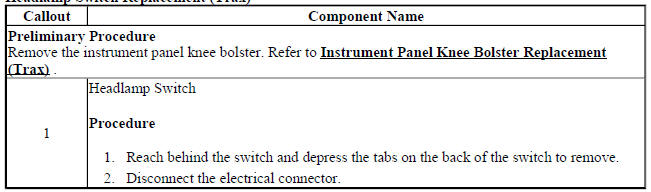

Headlamp Switch Replacement (Trax)

Headlamp Switch Replacement (Trax)

HAZARD WARNING SWITCH REPLACEMENT (TRAX)

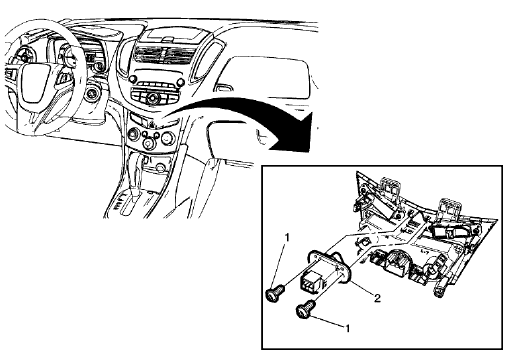

Fig. 7: Hazard Warning Switch
Fig. 7: Hazard Warning Switch

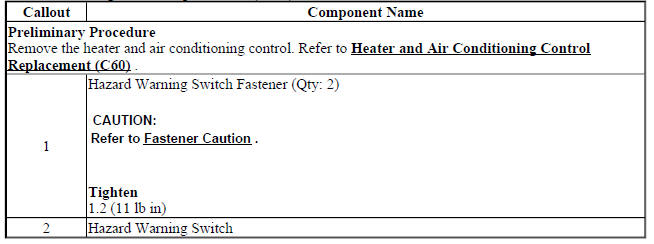

Hazard Warning Switch Replacement (Trax)

Hazard Warning Switch Replacement (Trax)

HAZARD WARNING AND ACCESSORY SWITCH REPLACEMENT (ENCORE)

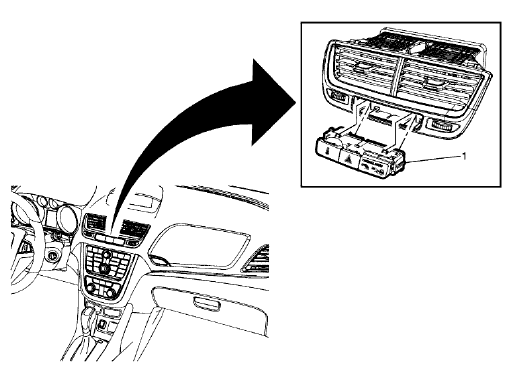

Fig. 8: Instrument Panel Airbag Arming Status Display
Fig. 8: Instrument Panel Airbag Arming Status Display

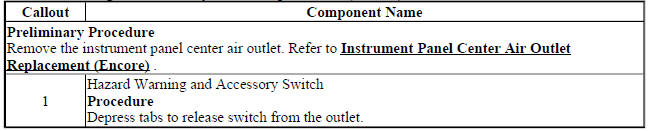

Hazard Warning and Accessory Switch Replacement (Encore)

Hazard Warning and Accessory Switch Replacement (Encore)

DOME LAMP BEZEL REPLACEMENT

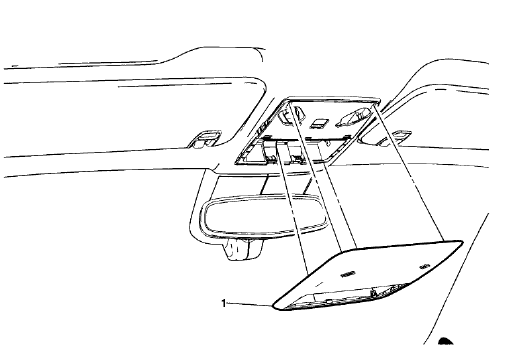

Fig. 9: Dome Lamp Bezel
Fig. 9: Dome Lamp Bezel

Dome Lamp Bezel Replacement

Dome Lamp Bezel Replacement
