Chevrolet Trax: Instrument Panel

Chevrolet Trax (2013-2022) Owner's Manual / In Brief / Instrument Panel

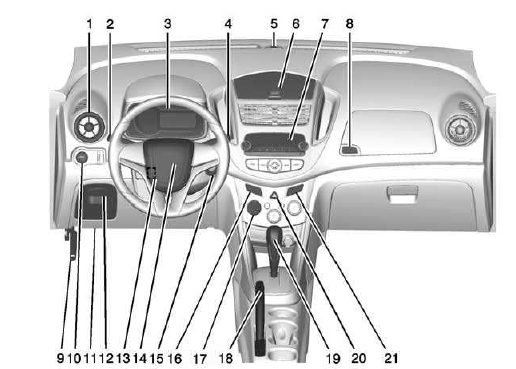

Instrument Panel

  1. Air Vents
  2. Turn Signal Lever. See Turn and Lane-Change Signals. Headlamp High/Low-Beam Changer
  3. Instrument Cluster
  4. Windshield Wiper/Washer. Rear Window Wiper/Washer
  5. Light Sensor. See Automatic Headlamp System
  6. Instrument Panel Storage
  7. Infotainment
  8. Instrument Panel Storage
  9. Hood Release. See Hood
  10. Exterior Lamp Controls. Instrument Panel Illumination Control. Front Fog Lamps
  11. Data Link Connector (DLC) (Out of View). See Malfunction Indicator Lamp
  12. Instrument Panel Storage
  13. Steering Wheel Adjustment
  14. Horn
  15. Ignition Positions
  16. Traction Control/Electronic Stabilty Control Button. See Traction Control/Electronic Stability Control
  17. Climate Control Systems
  18. Parking Brake
  19. Shift Lever. See Automatic Transmission   or Manual Transmission
  20. Hazard Warning Flashers
  21. Passenger Safety Belt Reminder Light. See Safety Belt Reminders
