Chevrolet Trax: Parking brake cable replacement

Chevrolet Trax (2013-2022) Workshop Manual / Brakes / Park Brake / Repair instructions / Parking brake cable replacement

Removal Procedure

WARNING: Refer to Brake Dust Warning .

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  3. Remove the brake shoes. Refer to Brake Shoe Replacement .

Fig. 14: Parking Brake Rear Cable And Cable Connector
Fig. 14: Parking Brake Rear Cable And Cable Connector

NOTE: Pull the parking brake rear cable forward to remove the cable from the parking brake cable connector.

  1. Disconnect the parking brake cable from the parking brake rear cable connector (1).

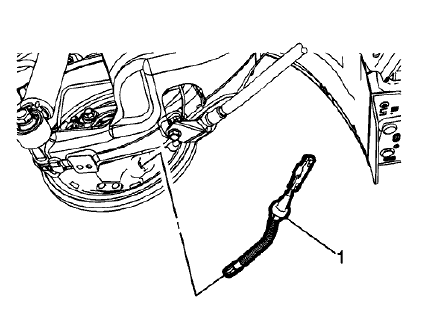

Fig. 15: Parking Brake Rear Cable
Fig. 15: Parking Brake Rear Cable

  1. Compress the parking brake rear cable locking tabs and remove the parking brake rear cable (1) from the rear brake backing plate.

Installation Procedure

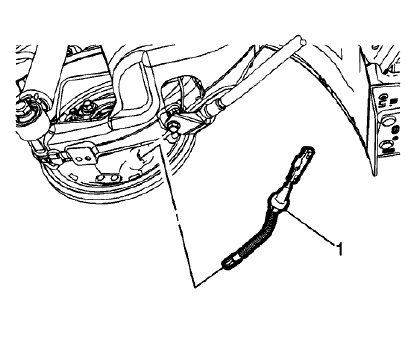

Fig. 16: Parking Brake Rear Cable
Fig. 16: Parking Brake Rear Cable

NOTE: Ensure the locking tabs on the parking brake rear cable are fully engaged to the rear brake backing plate.

  1. Install the parking brake rear cable (1) to the rear brake backing plate.
  2. Ensure the parking brake rear cable locking tabs are fully engaged in the rear brake backing plate.

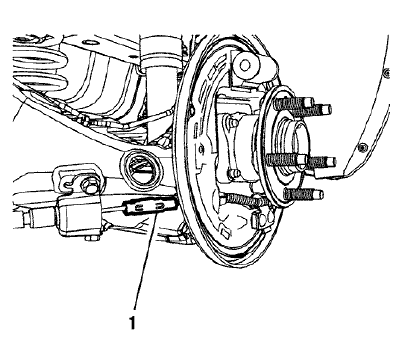

Fig. 17: Parking Brake Rear Cable And Cable Connector
Fig. 17: Parking Brake Rear Cable And Cable Connector

NOTE: Pull the parking brake rear cable forward to install the cable to the parking brake cable connector.

  1. Connect the parking brake cable to the parking brake rear cable connector (1).
  2. Install the brake shoes. Refer to Brake Shoe Replacement .
  3. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
