Chevrolet Trax: Where Are the Airbags? (U.S. and Canada)
.gif)

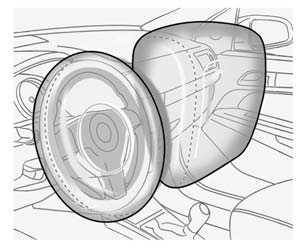

The driver frontal airbag is in the center of the steering wheel.
The front outboard passenger frontal airbag is in the passenger side instrument panel.
.gif)

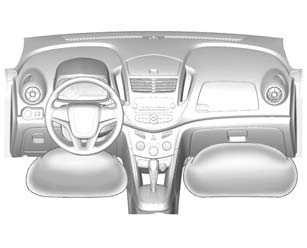

The driver knee airbag is below the steering column. The front outboard passenger knee airbag is below the glove box.
.gif)
Driver Side Shown, Passenger Side Similar
The seat-mounted side impact airbags for the driver and front outboard passenger are in the side of the seatbacks closest to the door.
The roof-rail airbags for the driver, right front passenger, and second row outboard passengers are in the ceiling above the side windows.
.gif)
Rear Seat Driver Side Shown, Passenger Side Similar
On vehicles with second row seat-mounted side impact airbags, they are in the sides of the rear seatback closest to the door.
Warning
If something is between an occupant and an airbag, the airbag might not inflate properly or it might force the object into that person causing severe injury or even death. The path of an inflating airbag must be kept clear. Do not put anything between an occupant and an airbag, and do not attach or put anything on the steering wheel hub or on or near any other airbag covering.
Do not use seat accessories that block the inflation path of a seat-mounted side impact airbag.
Never secure anything to the roof of a vehicle with roof-rail airbags by routing a rope or tie‐down through any door or window opening. If you do, the path of an inflating roof-rail airbag will be blocked.
