Chevrolet Trax: Seat Adjustment

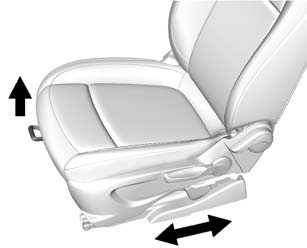

Manual Seats
.gif)
To adjust a manual seat:
- Pull the handle at the front of the seat.
- Slide the seat to the desired position and release the handle.
- Try to move the seat back and forth to be sure it is locked in place.

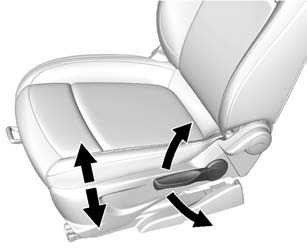

Height Adjustment
.gif)
If available, move the lever up or down to manually raise or lower the seat.
See Seat Adjustment
Power Seats
.gif)
To adjust the power driver seat, if available:
- Move the seat forward or rearward by sliding the control forward or rearward.
- Raise or lower the front part of the seat cushion by moving the front of the control up or down.
- Raise or lower the entire seat by moving the rear of the control up or down.
See Power Seat Adjustment

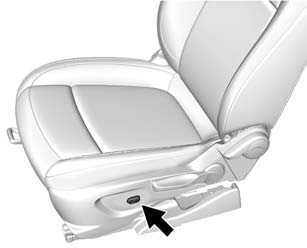

Lumbar Adjustment
.gif)
Manual Seat Shown, Power Seat Similar
If available, press the front or rear of the switch to increase or decrease lumbar support. Release the switch when the desired level of support is reached.
See Lumbar Adjustment

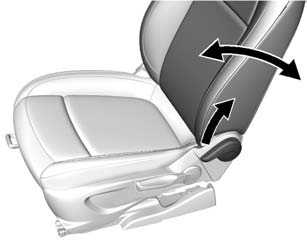

Reclining Seatbacks
.gif)
Manual Seat Shown, Power Seat Similar
To recline the seatback:
- Lift the lever.
If necessary, move the safety belt out of the way to access the lever.
- Move the seatback to the desired position, then release the lever to lock the seatback in place.
- Push and pull on the seatback to make sure it is locked.
To return the seatback to an upright position:
- Lift the lever fully without applying pressure to the seatback, and the seatback returns to the upright position.
- Push and pull on the seatback to make sure it is locked.
See Reclining Seatbacks
Second Row Seats
The rear seatbacks can be folded down to increase cargo space.
See Rear Seats
