Chevrolet Trax: Power steering pump replacement

Chevrolet Trax (2013-2022) Workshop Manual / Suspension & Steering / Power Steering / Repair instructions / Power steering pump replacement

Removal Procedure

  1. Place drain pans under the vehicle.
  2. Remove as much power steering fluid from the power steering fluid reservoir as possible.
  3. Remove the air cleaner assembly.
  4. Remove the power steering pump belt.

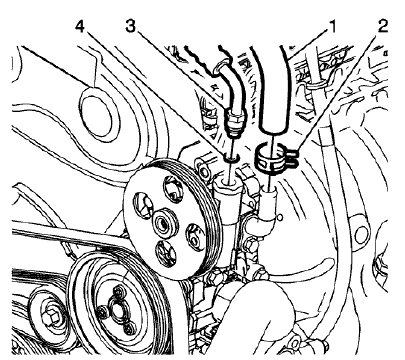

Fig. 10: Power Steering Fluid Reservoir Outlet Hose
Fig. 10: Power Steering Fluid Reservoir Outlet Hose

  1. Loosen the power steering fluid reservoir outlet hose clamp (1) and disconnect the power steering fluid reservoir outlet hose (2) from the power steering pump.
  2. Remove the power steering gear inlet hose (3) and seal (4) from the power steering pump. Discard the seal.
  3. Remove the air conditioning evaporator hose assembly. Refer to Air Conditioning Evaporator Hose Assembly Replacement (LUJ, LUV) , Air Conditioning Evaporator Hose Assembly Replacement (2H0) .

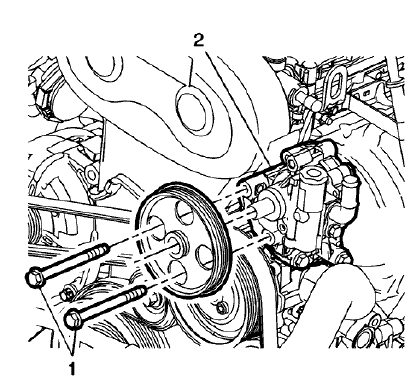

Fig. 11: Power Steering Pump And Bolts
Fig. 11: Power Steering Pump And Bolts

NOTE: The power steering pump pulley does not need to be removed on vehicle.

The pulley is shown off for clarity. Remove the power steering pump bolts through the holes in the pulley.

  1. Remove the power steering pump bolts (1) from the power steering pump (2) and remove the pump from the vehicle.
  2. Transfer any components as needed.

Installation Procedure

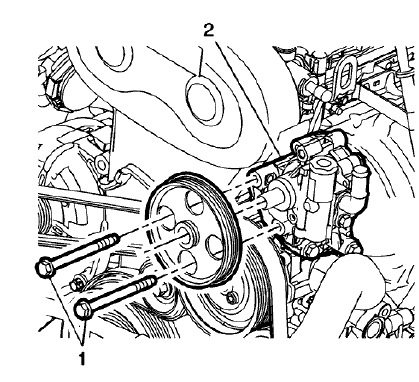

Fig. 12: Power Steering Pump And Bolts
Fig. 12: Power Steering Pump And Bolts

  1. Position the power steering pump (2) in the vehicle.

CAUTION: Refer to Fastener Caution .

  1. Install the power steering pump bolts (1) and tighten to 22 N.m (16 lb ft).
  2. Install the air conditioning evaporator hose assembly. Refer to Air Conditioning Evaporator Hose Assembly Replacement (LUJ, LUV) , Air Conditioning Evaporator Hose Assembly Replacement (2H0) .

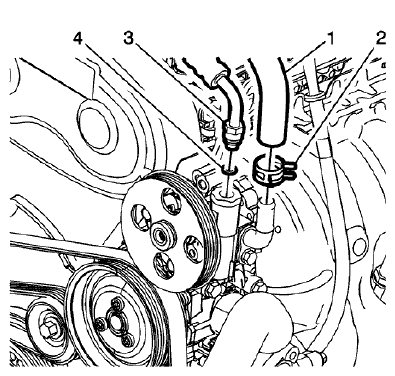

Fig. 13: Power Steering Fluid Reservoir Outlet Hose
Fig. 13: Power Steering Fluid Reservoir Outlet Hose

  1. Connect the power steering gear inlet hose (3) and NEW seal (4) to the power steering pump.

CAUTION: Refer to Component Fastener Tightening Caution .

  1. Tighten the power steering gear inlet hose (3) to 34 N.m (25 lb ft).
  2. Connect the power steering fluid reservoir outlet hose (2) to the power steering pump and secure with the power steering fluid reservoir outlet hose clamp (1).
  3. Clean any excess power steering fluid from the vehicle and remove the drain pans.
  4. Install the power steering pump belt.
  5. Install the air cleaner assembly.
  6. Fill and bleed the power steering system. Refer to Power Steering System Bleeding.
