Chevrolet Trax: Power steering pump bracket replacement

Chevrolet Trax (2013-2022) Workshop Manual / Suspension & Steering / Power Steering / Repair instructions / Power steering pump bracket replacement

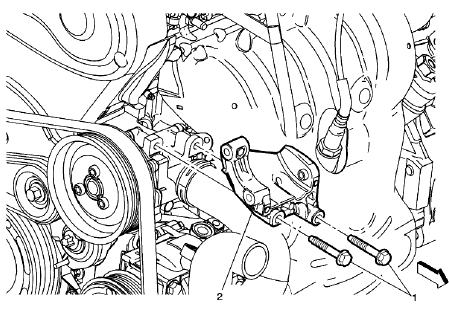

Fig. 14: Power Steering Pump Bracket
Fig. 14: Power Steering Pump Bracket

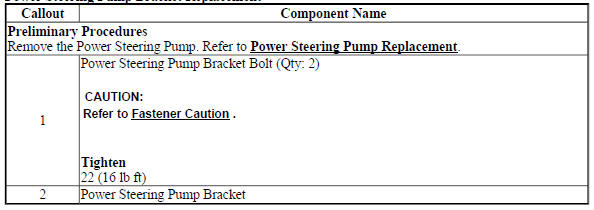

Power Steering Pump Bracket Replacement

Power Steering Pump Bracket Replacement

POWER STEERING PUMP REAR BRACE REPLACEMENT

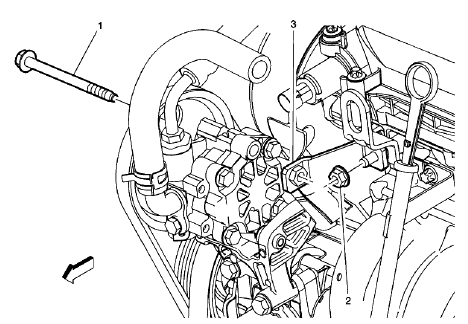

Fig. 15: Power Steering Pump Rear Brace
Fig. 15: Power Steering Pump Rear Brace

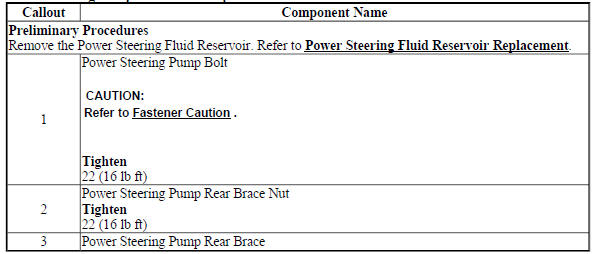

Power Steering Pump Rear Brace Replacement

Power Steering Pump Rear Brace Replacement

STEERING LINKAGE OUTER TIE ROD REPLACEMENT

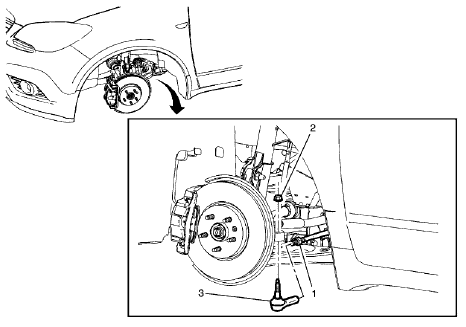

Fig. 16: Steering Linkage Outer Tie Rod
Fig. 16: Steering Linkage Outer Tie Rod

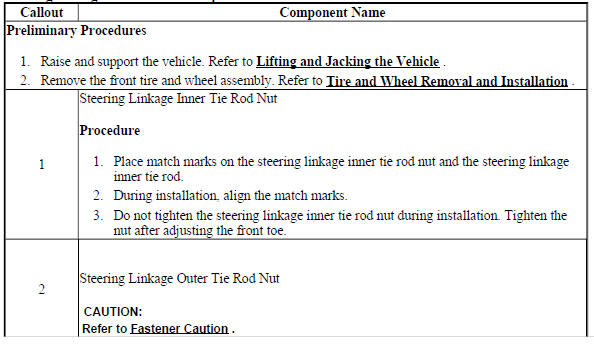

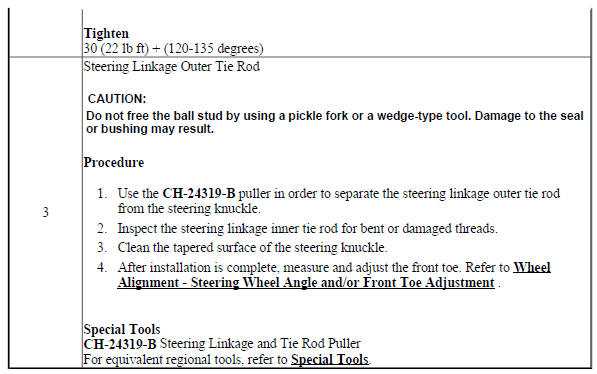

Steering Linkage Outer Tie Rod Replacement

Steering Linkage Outer Tie Rod Replacement

Steering Linkage Outer Tie Rod Replacement

STEERING GEAR BOOT REPLACEMENT

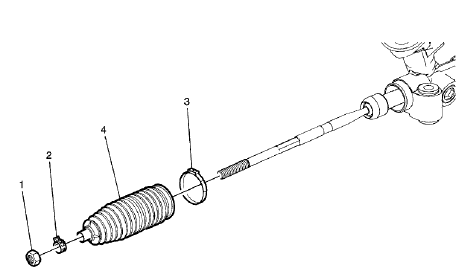

Fig. 17: Steering Gear Boot
Fig. 17: Steering Gear Boot

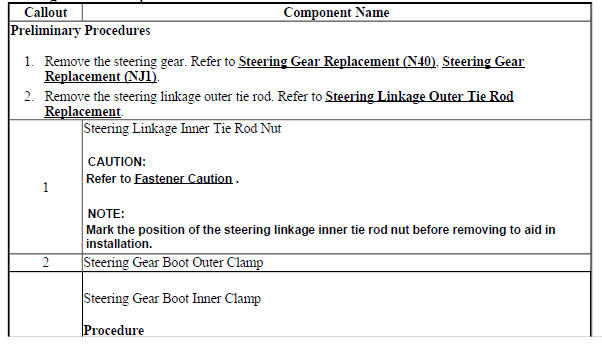

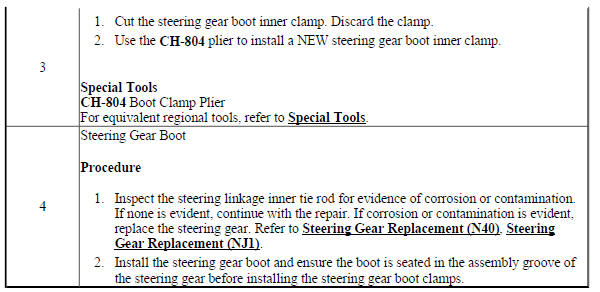

Steering Gear Boot Replacement

Steering Gear Boot Replacement

Steering Gear Boot Replacement

POWER STEERING FLUID COOLER REPLACEMENT

Removal Procedure

  1. Place drain pans under the vehicle.
  2. Remove as much power steering fluid from the power steering fluid reservoir as possible.
  3. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Trax) , Front Bumper Fascia Replacement (Encore) .

Fig. 18: Power Steering Gear Outlet Hose And Clamp
Fig. 18: Power Steering Gear Outlet Hose And Clamp

  1. Release the power steering gear outlet hose clamp (1) and disconnect the power steering gear outlet hose from the power steering fluid cooler (2).
  2. Remove the plastic push pin (3) from the power steering fluid cooler bracket.

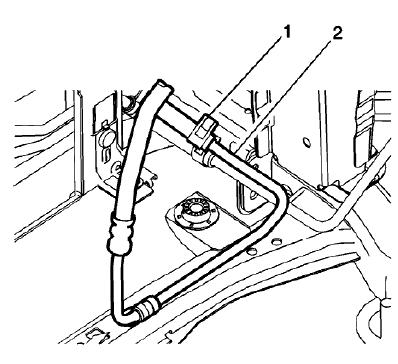

Fig. 19: P/S Fluid Reservoir Inlet Pipe
Fig. 19: P/S Fluid Reservoir Inlet Pipe

  1. Release the power steering fluid reservoir inlet pipe clamp (1) and disconnect the power steering fluid reservoir inlet pipe (2) from the power steering fluid cooler.

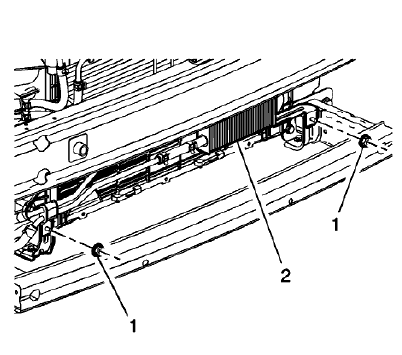

Fig. 20: Power Steering Fluid Cooler
Fig. 20: Power Steering Fluid Cooler

  1. Remove the power steering fluid cooler nuts (1).
  2. Remove the power steering fluid cooler (2) from the vehicle.

Installation Procedure

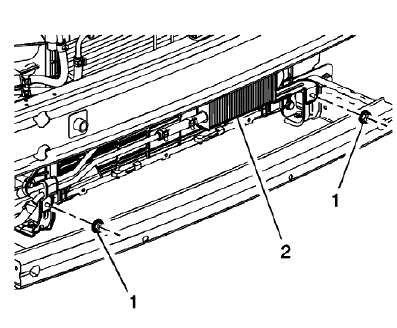

Fig. 21: Power Steering Fluid Cooler
Fig. 21: Power Steering Fluid Cooler

  1. Position the power steering fluid cooler (2) on the vehicle.

CAUTION: Refer to Fastener Caution .

  1. Install the power steering fluid cooler nuts (1) and tighten to 9 N.m (80 lb in).

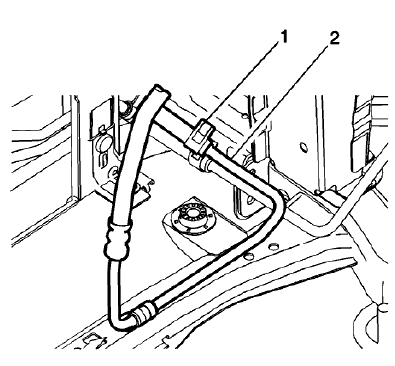

Fig. 22: P/S Fluid Reservoir Inlet Pipe
Fig. 22: P/S Fluid Reservoir Inlet Pipe

  1. Connect the power steering fluid reservoir inlet pipe (2) to the power steering fluid cooler and secure with the power steering fluid reservoir inlet pipe clamp (1).

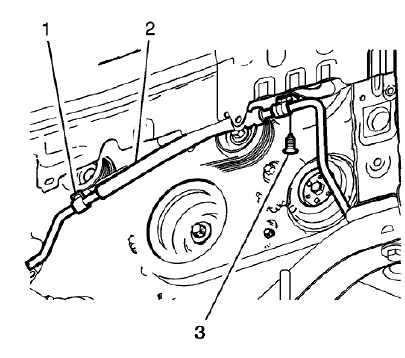

Fig. 23: Power Steering Gear Outlet Hose And Clamp
Fig. 23: Power Steering Gear Outlet Hose And Clamp

  1. Connect the power steering gear outlet hose to the power steering fluid cooler (2) and secure with the power steering gear outlet hose clamp (1).
  2. Secure the power steering fluid cooler bracket with the plastic push pin (3).
  3. Clean any excess power steering fluid from the vehicle and remove the drain pans.
  4. Install the front bumper fascia. Refer to Front Bumper Fascia Replacement (Trax) , Front Bumper Fascia Replacement (Encore) .
  5. Fill and bleed the power steering system. Refer to Power Steering System Bleeding.
