Chevrolet Trax: Parking brake lever replacement (disc brake)

Chevrolet Trax (2013-2022) Workshop Manual / Brakes / Park Brake / Repair instructions / Parking brake lever replacement (disc brake)

Removal Procedure

  1. Remove the front floor console. Refer to Front Floor Console Replacement (Encore) , Front Floor Console Replacement (Trax) .
  2. Ensure that the parking brake lever is in the fully released position.
  3. Disconnect the electrical connector from the parking brake indicator switch.

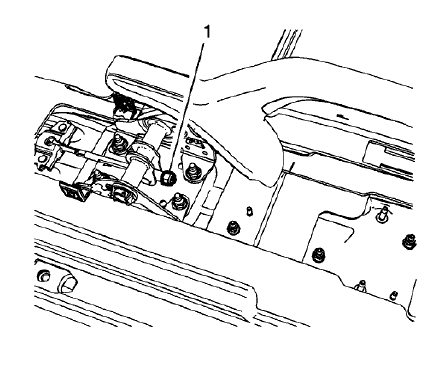

Fig. 2: Parking Brake Cable Adjusting Nut
Fig. 2: Parking Brake Cable Adjusting Nut

  1. Using ONLY HAND TOOLS, remove the adjusting nut (1) from the front cable threaded rod.

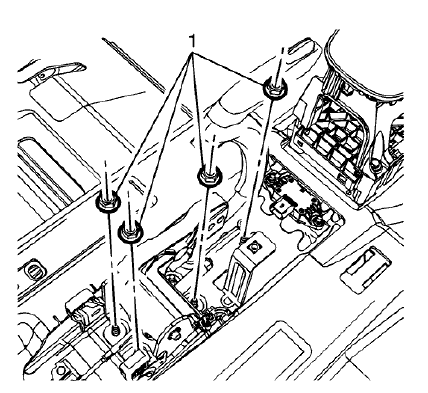

Fig. 3: Parking Brake Lever Mounting Nuts
Fig. 3: Parking Brake Lever Mounting Nuts

  1. Remove the parking brake lever mounting nuts (1).
  2. While removing the front cable threaded rod from the parking brake lever assembly, remove the parking brake lever assembly from the vehicle.

Installation Procedure

  1. While installing the front cable threaded rod to the parking brake lever assembly, install the parking brake lever assembly to the vehicle.

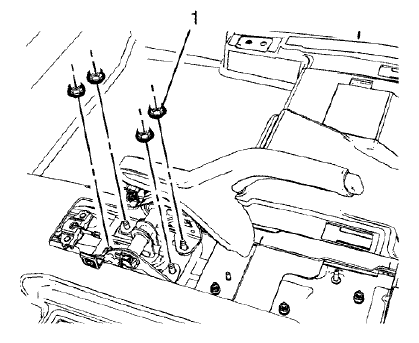

Fig. 4: Parking Brake Lever Mounting Nut
Fig. 4: Parking Brake Lever Mounting Nut

CAUTION: Refer to Fastener Caution .

  1. Install the parking brake lever mounting nuts (1) and tighten to 22 N.m (16 lb ft).
  2. Connect the electrical connector to the parking brake indicator switch.

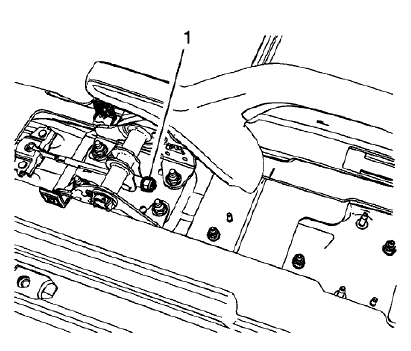

Fig. 5: Parking Brake Cable Adjusting Nut
Fig. 5: Parking Brake Cable Adjusting Nut

  1. Loosely install the adjusting nut (1) to front cable threaded rod.
  2. Adjust the parking brake cable tension. Refer to Parking Brake Adjustment (Disc Brake).
  3. Install the front floor console. Refer to Front Floor Console Replacement (Encore) , Front Floor Console Replacement (Trax) .
