Chevrolet Trax: Instrument Panel Storage
Chevrolet Trax (2013-2022) Owner's Manual / Storage / Storage Compartments / Instrument Panel Storage
Warning
Do not store heavy or sharp objects in storage compartments.
In a crash, these objects may cause the cover to open and could result in injury.
.gif)

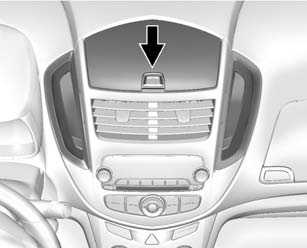

If equipped, pull the handle to open.
.gif)

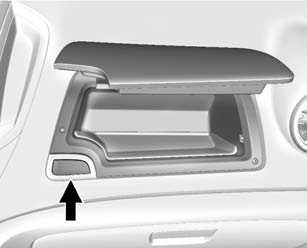

Slide the latch to open.
.gif)

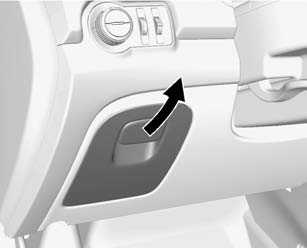

Press the button to open the storage above the glovebox.
