Cargo Management System
This vehicle has a cargo management system in the rear.
.gif)

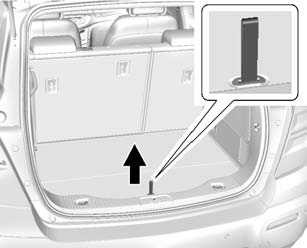

Pull the strap to lift.
.gif)

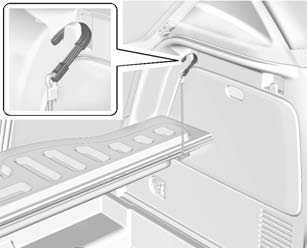

Fold the load floor. Place the hook from the load floor inside the hook on the side trim.
Convenience Net
.gif)

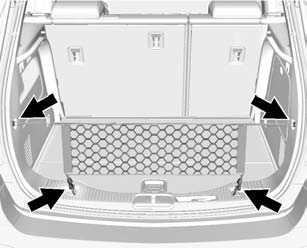

The vehicle may have a convenience net. Attach the net to the cargo tie-downs.
The net is used to store small loads and should not be used for heavy loads.
Warning Triangle
.gif)

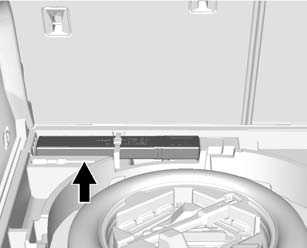

If equipped, the warning triangle is stowed in the rear storage compartment.
