Chevrolet Trax: Warning Lights, Gauges, and Indicators

Warning lights and gauges can signal that something is wrong before it becomes serious enough to cause an expensive repair or replacement. Paying attention to the warning lights and gauges could prevent injury.

Warning lights come on when there could be a problem with a vehicle function. Some warning lights come on briefly when the engine is started to indicate they are working.

Gauges can indicate when there could be a problem with a vehicle function. Often gauges and warning lights work together to indicate a problem with the vehicle.

When one of the warning lights comes on and stays on while driving, or when one of the gauges shows there may be a problem, check the section that explains what to do. Waiting to do repairs can be costly and even dangerous.

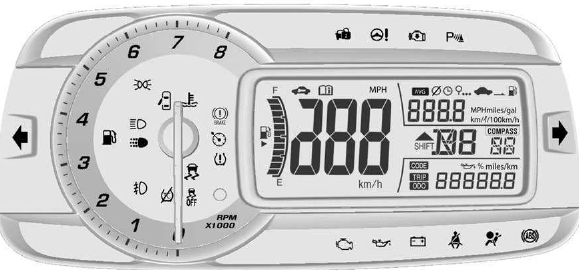

Instrument Cluster

English Shown, Metric Similar
English Shown, Metric Similar


The speedometer shows the vehicle's speed in either kilometers per hour (km/h) or miles per hour (mph).


The odometer shows how far the vehicle has been driven, in either kilometers or miles.

Trip Odometer

The trip odometer shows how far the vehicle has been driven since the trip odometer was last reset.

Press the trip odometer reset stem on the cluster to switch between the odometer and trip odometer.

To reset the trip odometer to zero, press and hold the trip odometer reset stem while the trip odometer is displayed. Be careful not to reset the engine oil life monitor accidentally.


The tachometer displays the engine speed in revolutions per minute (rpm).


If the engine is operated with the rpm's in the warning area at the high end of the tachometer, the vehicle could be damaged, and the damage would not be covered by the vehicle warranty. Do not operate the engine with the rpm's in the warning area.

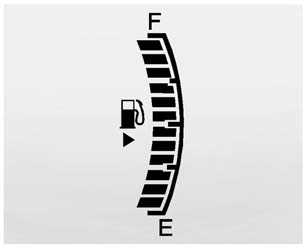

Fuel Gauge

Fuel Gauge

The fuel gauge indicates about how much fuel is left when the ignition is turned to ON/RUN.

When the tank nears empty, the low fuel warning light will come on.

There is still a little fuel left, but the vehicle's fuel tank should be filled soon. See Low Fuel Warning Light for more information.

An arrow on the fuel gauge indicates on which side of the vehicle the fuel door is located.

Here are four things that some owners ask about. None of these show a problem with the fuel gauge:

  • At the service station, the gas pump shuts off before the gauge reads full.
  • It takes a little more or less fuel to fill up than the gauge indicated. For example, the gauge may have indicated the tank was half full, but it actually took a little more or less than half the tank's capacity to fill the tank.
  • The indicator moves a little when turning a corner or speeding up.
  • The gauge goes back to empty when the ignition is turned off.


     Safety Belt Reminders

    Driver Safety Belt Reminder Light There is a driver safety belt reminder light on the instrument cluster. When the vehicle is started, this light flashes and a chime may come on to remind the driver t

     Passenger Airbag Status Indicator (U.S. and Canada)

    The vehicle has a passenger sensing system. See Passenger Sensing System (U.S. and Canada) for important safety information. The instrument panel has a passenger airbag status indicator. United Stat

     Malfunction Indicator Lamp

    A computer system called OBD II (On-Board Diagnostics-Second Generation) monitors the operation of the vehicle to ensure emissions are at acceptable levels, helping to maintain a clean environment. Th
