Chevrolet Trax: Secondary and Configurable Customer Controls

Chevrolet Trax (2013-2022) Workshop Manual / Accessories & Equipment / Secondary and Configurable Customer Controls

Schematic wiring diagrams

STEERING WHEEL SECONDARY/CONFIGURABLE CONTROL WIRING SCHEMATICS (ENCORE)

Steering Wheel Control System

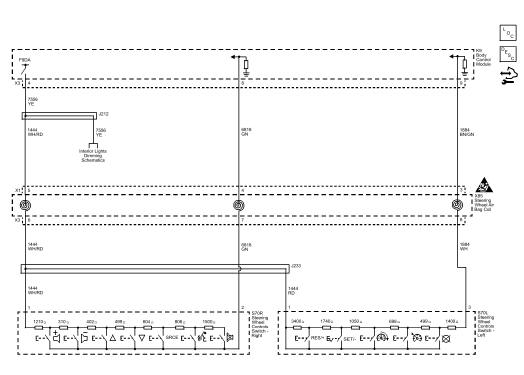

Fig. 1: Steering Wheel Control System
Fig. 1: Steering Wheel Control System

STEERING WHEEL SECONDARY/CONFIGURABLE CONTROL WIRING SCHEMATICS (TRAX)

Steering Wheel Control System

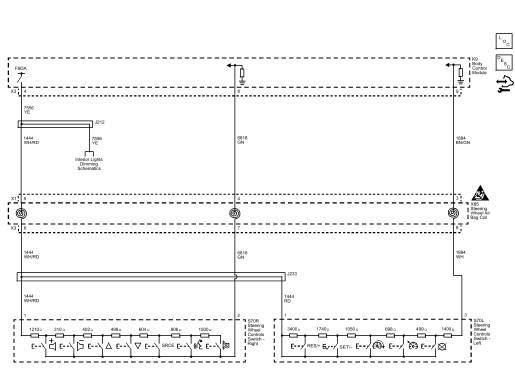

Fig. 2: Steering Wheel Control System
Fig. 2: Steering Wheel Control System
