Chevrolet Trax: Lower Anchor and Top Tether Anchor Locations
.gif)
.gif)

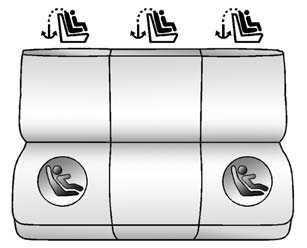

(Top Tether Anchor): Seating
positions with top tether anchors.
.gif)
(Lower Anchor): Seating
positions with two lower anchors.
.gif)
To assist in locating the lower
anchors, each seating position with
lower anchors has two labels, near
the crease between the seatback
and the seat cushion.
.gif)
To assist in locating the top
tether
anchors, the top tether anchor
symbol is on the trim near the
anchor.
.gif)

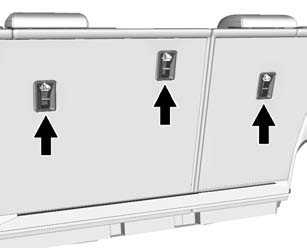

The top tether anchors are on the back of the rear seatbacks. Be sure to use an anchor on the same side of the vehicle as the seating position where the child restraint will be placed.
Do not secure a child restraint in a position without a top tether anchor if a national or local law requires that the top tether be attached, or if the instructions that come with the child restraint say that the top tether must be attached.
According to accident statistics, children and infants are safer when properly restrained in a child restraint system or infant restraint system secured in a rear seating position. See Where to Put the Restraint for additional information.
