Chevrolet Trax (2013-2022) Workshop Manual / Engine / Engine Controls and Fuel - 1.4L / Engine controls and fuel - 1.4l - Repair instructions / Fuel injector replacement

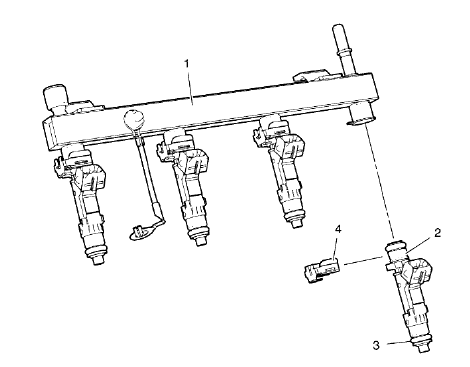

Fig. 75: Fuel Injectors And Rail
Fig. 75: Fuel Injectors And Rail

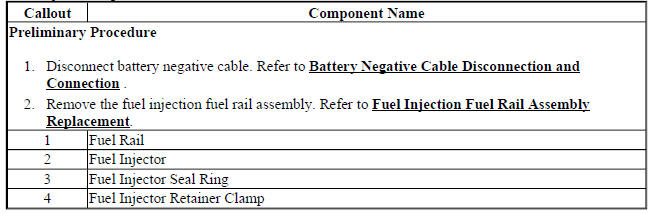

Fuel Injector Replacement

Fuel Injector Replacement

EVAPORATIVE EMISSION CANISTER VENT SOLENOID VALVE REPLACEMENT

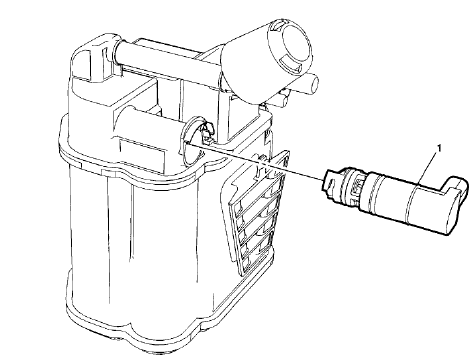

Fig. 76: Evaporative Emission Canister Vent Solenoid Valve
Fig. 76: Evaporative Emission Canister Vent Solenoid Valve

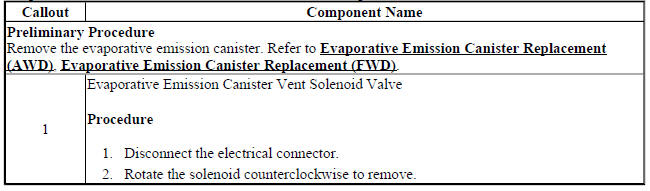

Evaporative Emission Canister Vent Solenoid Valve Replacement

Evaporative Emission Canister Vent Solenoid Valve Replacement

EVAPORATIVE EMISSION SYSTEM HOSE/PIPE REPLACEMENT (CANISTER TO PIPE AWD)

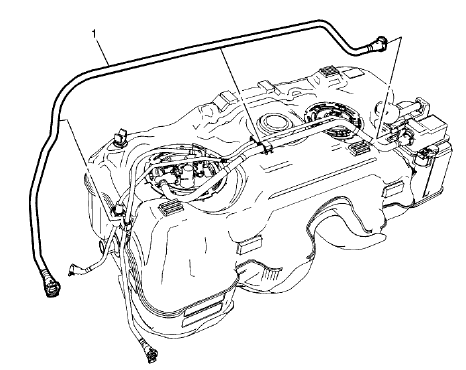

Fig. 77: Evaporative Emission System Hose/Pipe (canister To Pipe - AWD)
Fig. 77: Evaporative Emission System Hose/Pipe (canister To Pipe - AWD)

Evaporative Emission System Hose/Pipe Replacement (Canister to Pipe AWD)

Evaporative Emission System Hose/Pipe Replacement (Canister to Pipe AWD)

EVAPORATIVE EMISSION SYSTEM HOSE/PIPE REPLACEMENT (CANISTER TO PIPE FWD)

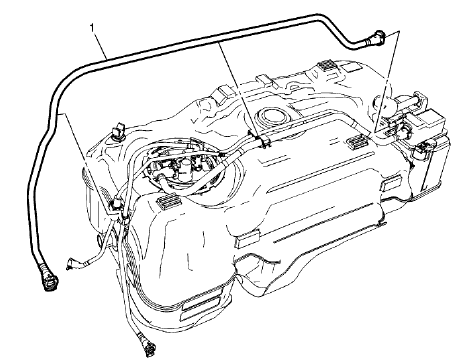

Fig. 78: Evaporative Emission System Hose/Pipe (canister To Pipe - FWD)
Fig. 78: Evaporative Emission System Hose/Pipe (canister To Pipe - FWD)

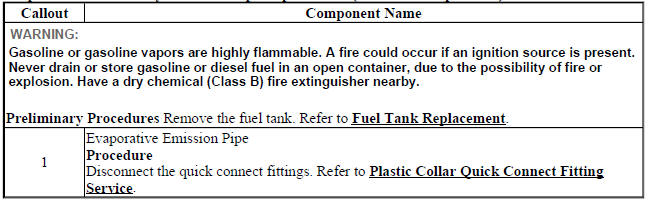

Evaporative Emission System Hose/Pipe Replacement (Canister to Pipe FWD)

Evaporative Emission System Hose/Pipe Replacement (Canister to Pipe FWD)

EVAPORATIVE EMISSION SYSTEM HOSE/PIPE REPLACEMENT (FUEL PUMP MODULE TO CANISTER AWD)

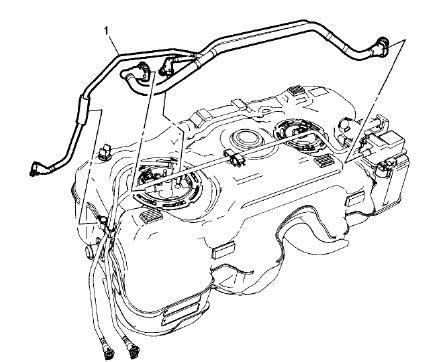

Fig. 79: Evaporative Emission System Hose/Pipe (Fuel Pump Module To Canister - AWD)
Fig. 79: Evaporative Emission System Hose/Pipe (Fuel Pump Module To Canister - AWD)

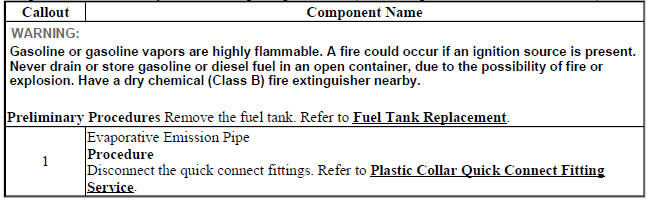

Evaporative Emission System Hose/Pipe Replacement (Fuel Pump Module to Canister AWD)

Evaporative Emission System Hose/Pipe Replacement (Fuel Pump Module to Canister AWD)

EVAPORATIVE EMISSION SYSTEM HOSE/PIPE REPLACEMENT (FUEL PUMP MODULE TO CANISTER FWD)

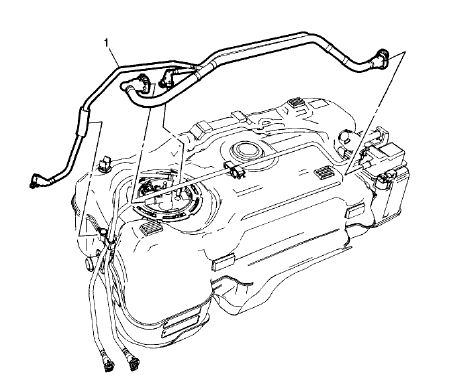

Fig. 80: Evaporative Emission System Hose/Pipe (Fuel Pump Module To Canister - FWD)
Fig. 80: Evaporative Emission System Hose/Pipe (Fuel Pump Module To Canister - FWD)

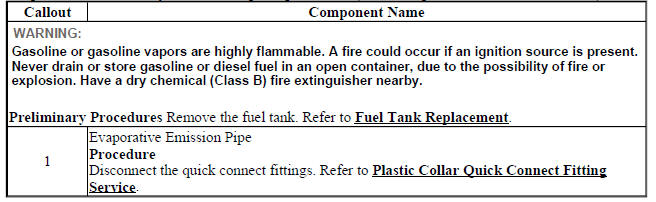

Evaporative Emission System Hose/Pipe Replacement (Fuel Pump Module to Canister FWD)

Evaporative Emission System Hose/Pipe Replacement (Fuel Pump Module to Canister FWD)

EVAPORATIVE EMISSION CANISTER REPLACEMENT (AWD)

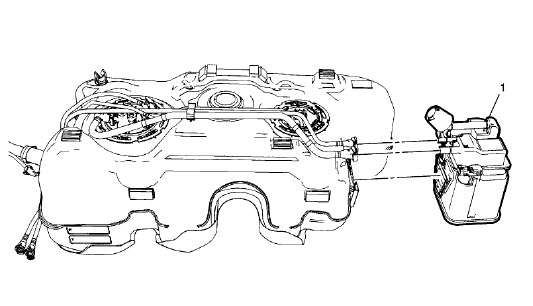

Fig. 81: Evaporative Emission Canister (AWD)
Fig. 81: Evaporative Emission Canister (AWD)

Evaporative Emission Canister Replacement (AWD)

Evaporative Emission Canister Replacement (AWD)

EVAPORATIVE EMISSION CANISTER REPLACEMENT (FWD)

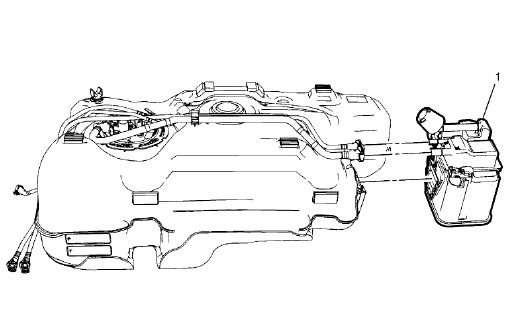

Fig. 82: Evaporative Emission Canister (FWD)
Fig. 82: Evaporative Emission Canister (FWD)

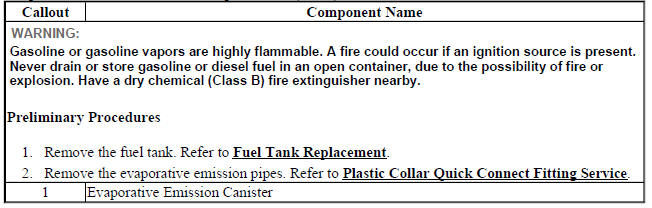

Evaporative Emission Canister Replacement (FWD)

Evaporative Emission Canister Replacement (FWD)

EVAPORATIVE EMISSION CANISTER PURGE SOLENOID VALVE REPLACEMENT

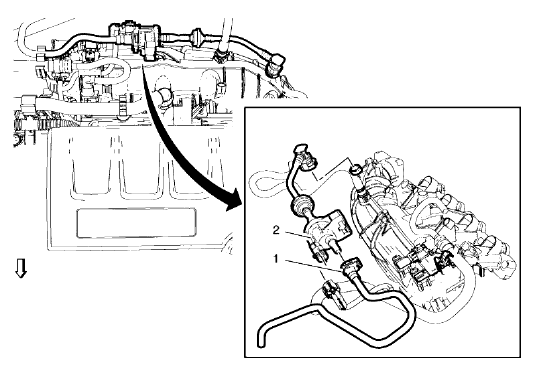

Fig. 83: Evaporative Emission Canister Purge Solenoid Valve
Fig. 83: Evaporative Emission Canister Purge Solenoid Valve

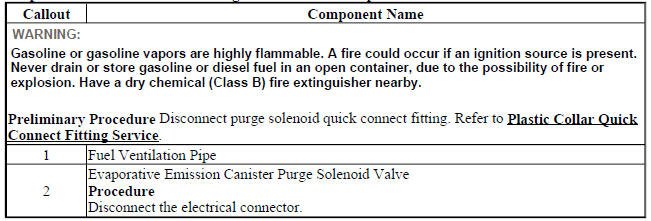

Evaporative Emission Canister Purge Solenoid Valve Replacement

Evaporative Emission Canister Purge Solenoid Valve Replacement
