Chevrolet Trax: Front end upper tie bar replacement

Chevrolet Trax (2013-2022) Workshop Manual / Accessories & Equipment / Bolted Exterior Body Panels and Closures / Bolted Exterior Body Panels and Closures - Repair instructions / Front end upper tie bar replacement

Fig. 3: Front End Upper Tie Bar
Fig. 3: Front End Upper Tie Bar

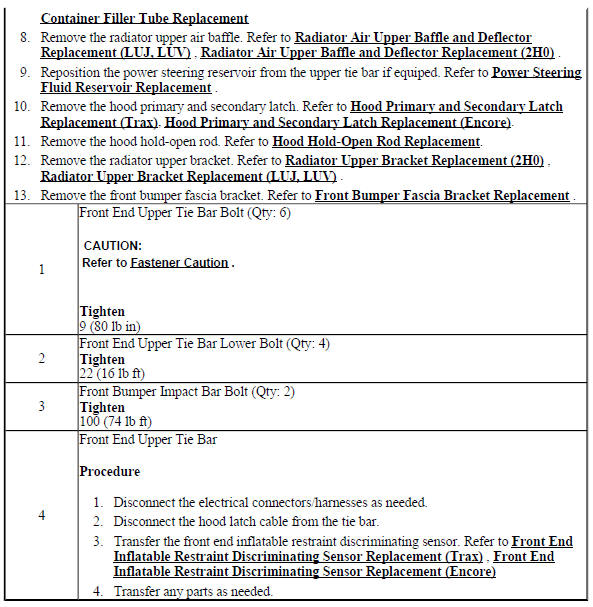

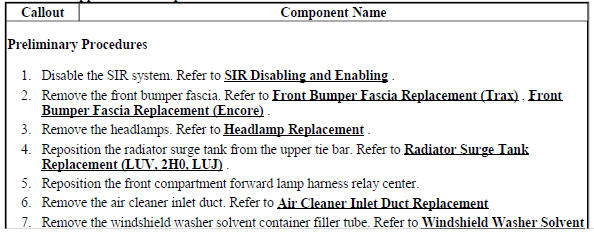

Front End Upper Tie Bar Replacement

Front End Upper Tie Bar Replacement

Front End Upper Tie Bar Replacement

HOOD PRIMARY LATCH RELEASE CABLE REPLACEMENT (TRAX)

Fig. 4: Hood Primary Latch Release Cable
Fig. 4: Hood Primary Latch Release Cable

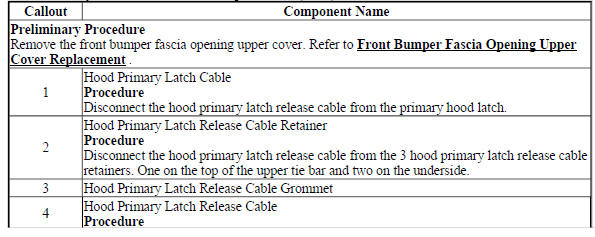

Hood Primary Latch Release Cable Replacement (Trax)

Hood Primary Latch Release Cable Replacement (Trax)

Hood Primary Latch Release Cable Replacement (Trax)

REAR SIDE DOOR CHECK REPLACEMENT

Fig. 5: Rear Side Door Check
Fig. 5: Rear Side Door Check

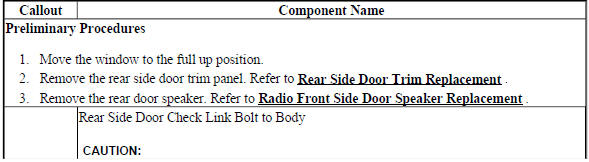

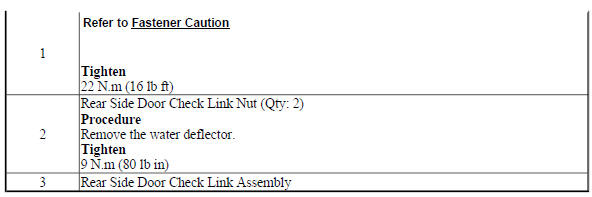

Rear Side Door Check Replacement

Rear Side Door Check Replacement

Rear Side Door Check Replacement

FRONT SIDE DOOR ADJUSTMENT

Fig. 6: Front Side Door Adjustment Points
Fig. 6: Front Side Door Adjustment Points

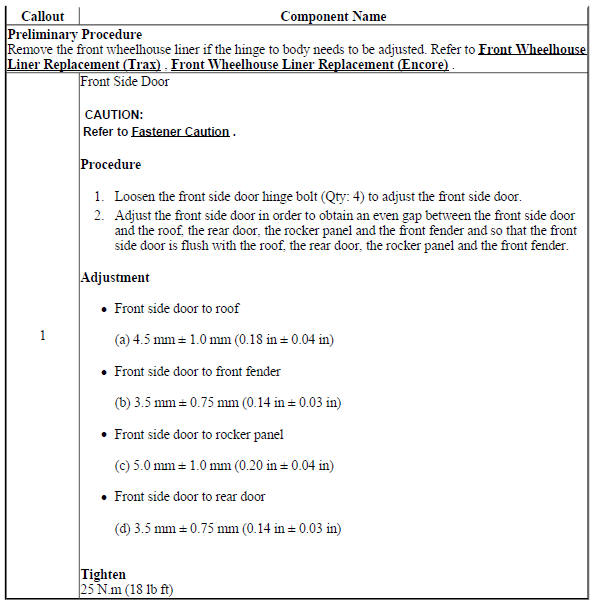

Front Side Door Adjustment

Front Side Door Adjustment

FRONT SIDE DOOR REPLACEMENT

Fig. 7: Identifying Front Side Door Hinge bolts
Fig. 7: Identifying Front Side Door Hinge bolts

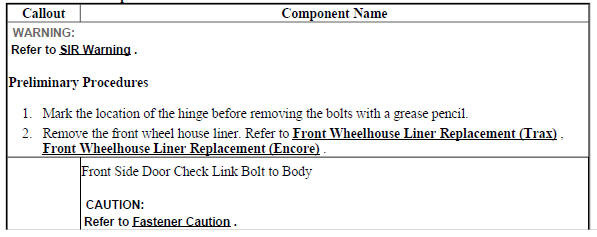

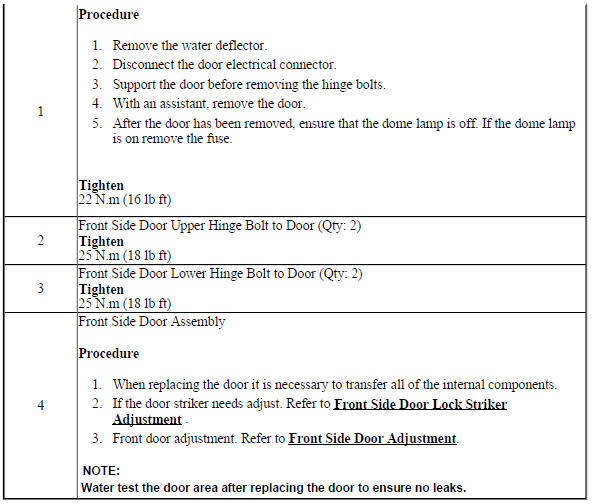

Front Side Door Replacement

Front Side Door Replacement

Front Side Door Replacement

REAR SIDE DOOR ADJUSTMENT

Fig. 8: Rear Side Door Adjustment Points
Fig. 8: Rear Side Door Adjustment Points

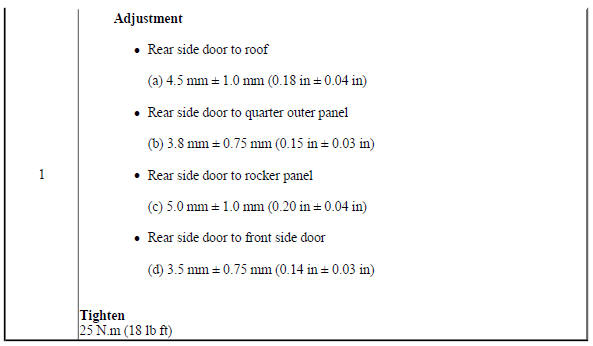

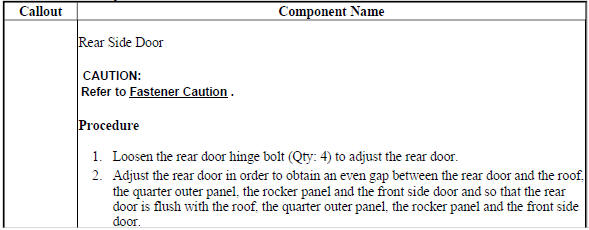

Rear Side Door Adjustment

Rear Side Door Adjustment

Rear Side Door Adjustment
