Chevrolet Trax: Driver or passenger seat back cover and pad replacement

Chevrolet Trax (2013-2022) Workshop Manual / Accessories & Equipment / Seat Hardware, Trim, and Upholstery / Seat Hardware, Trim, and Upholstery - Repair instructions / Driver or passenger seat back cover and pad replacement

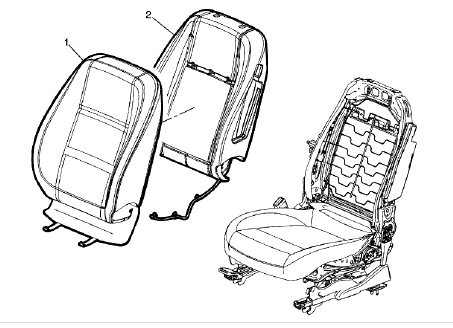

Fig. 21: Driver Or Passenger Seat Back Cover And Pad
Fig. 21: Driver Or Passenger Seat Back Cover And Pad

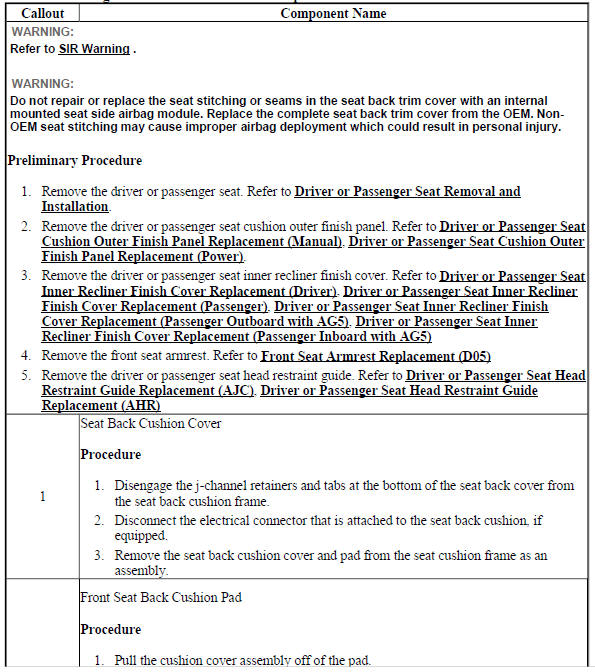

Driver or Passenger Seat Back Cover and Pad Replacement

Driver or Passenger Seat Back Cover and Pad Replacement

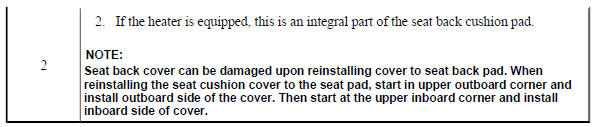

Driver or Passenger Seat Back Cover and Pad Replacement

DRIVER OR PASSENGER SEAT BACK CUSHION FRAME REPLACEMENT

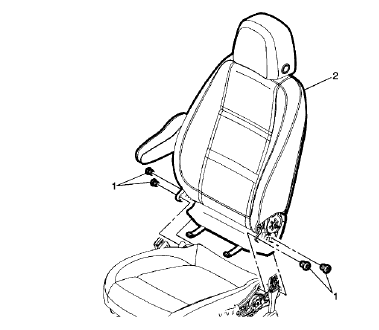

Fig. 22: Driver Or Passenger Seat Back Cushion Frame
Fig. 22: Driver Or Passenger Seat Back Cushion Frame

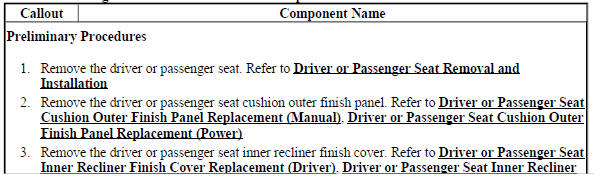

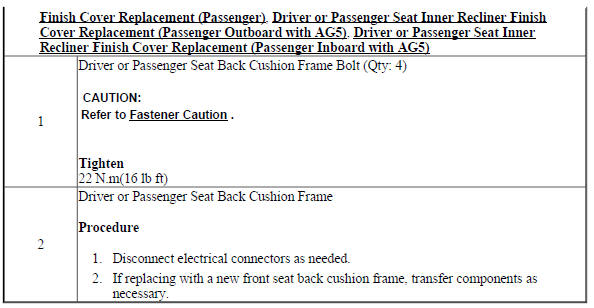

Driver or Passenger Seat Back Cushion Frame Replacement

Driver or Passenger Seat Back Cushion Frame Replacement

Driver or Passenger Seat Back Cushion Frame Replacement

FRONT SEAT BACK RECLINER HANDLE REPLACEMENT

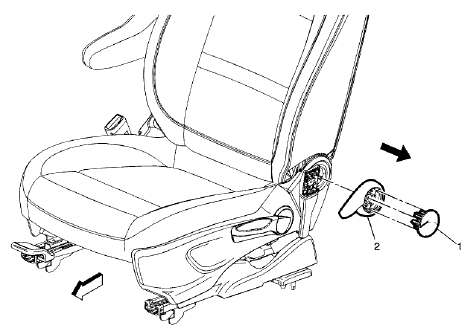

Fig. 23: Front Seat Back Recliner Handle
Fig. 23: Front Seat Back Recliner Handle

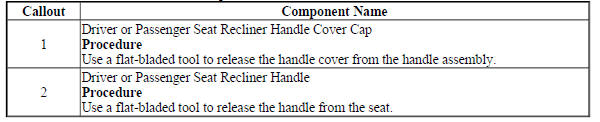

Front Seat Back Recliner Handle Replacement

Front Seat Back Recliner Handle Replacement

CHILD SEAT BRACKET ACCESS HOLE COVER REPLACEMENT

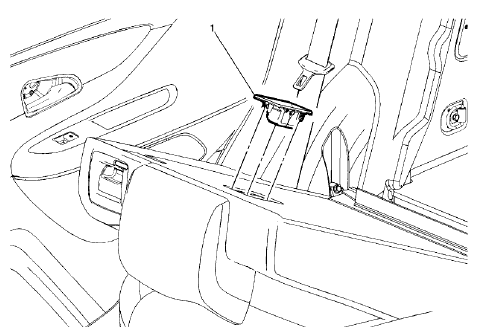

Fig. 24: Child Seat Bracket Access Hole Cover
Fig. 24: Child Seat Bracket Access Hole Cover

Child Seat Bracket Access Hole Cover Replacement

Child Seat Bracket Access Hole Cover Replacement

REAR SEAT ARMREST REPLACEMENT

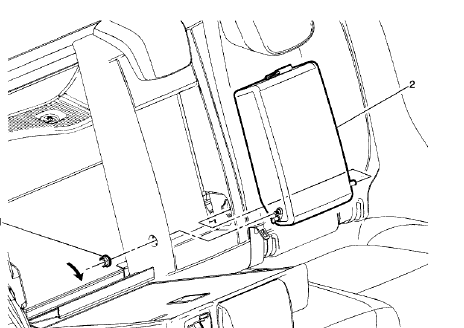

Fig. 25: Rear Seat Armrest
Fig. 25: Rear Seat Armrest

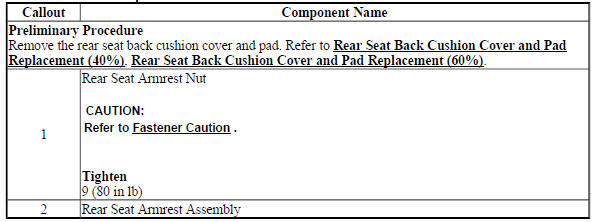

Rear Seat Armrest Replacement

Rear Seat Armrest Replacement

REAR SEAT HEAD RESTRAINT REPLACEMENT

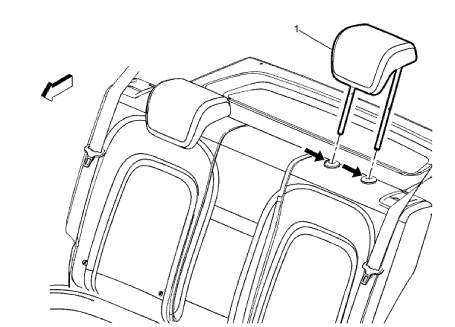

Fig. 26: Rear Seat Head Restraint
Fig. 26: Rear Seat Head Restraint

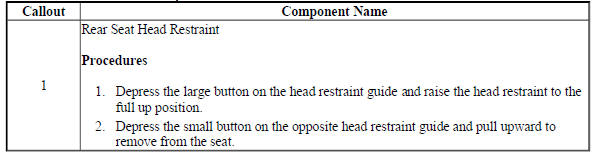

Rear Seat Head Restraint Replacement

Rear Seat Head Restraint Replacement

REAR SEAT HEAD RESTRAINT GUIDE REPLACEMENT

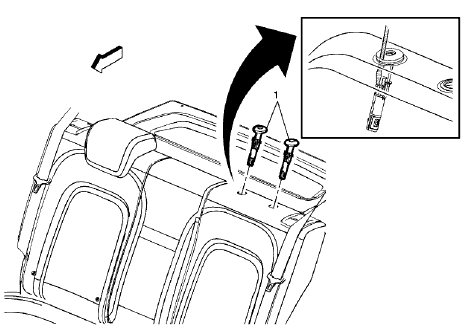

Fig. 27: Rear Seat Head Restraint Guide
Fig. 27: Rear Seat Head Restraint Guide

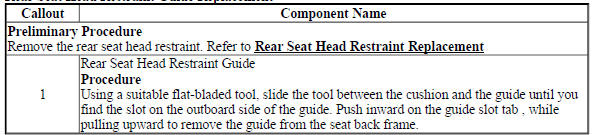

Rear Seat Head Restraint Guide Replacement

Rear Seat Head Restraint Guide Replacement

REAR SEAT BACK BOLSTER REPLACEMENT (AYF)

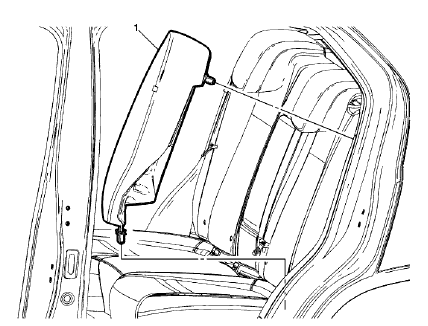

Fig. 28: Rear Seat Back Bolster
Fig. 28: Rear Seat Back Bolster

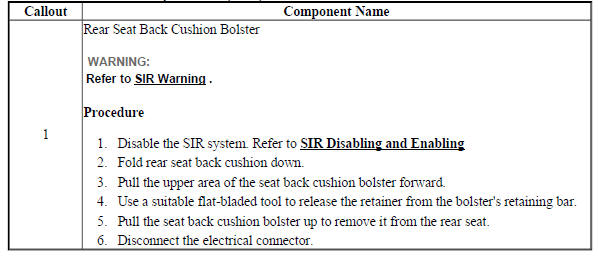

Rear Seat Back Bolster Replacement (AYF)

Rear Seat Back Bolster Replacement (AYF)

REAR SEAT BACK CUSHION PIVOT SUPPORT REPLACEMENT

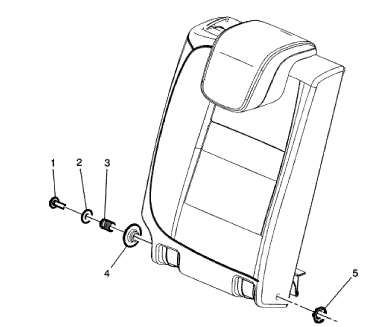

Fig. 29: Rear Seat Back Cushion Pivot Support
Fig. 29: Rear Seat Back Cushion Pivot Support

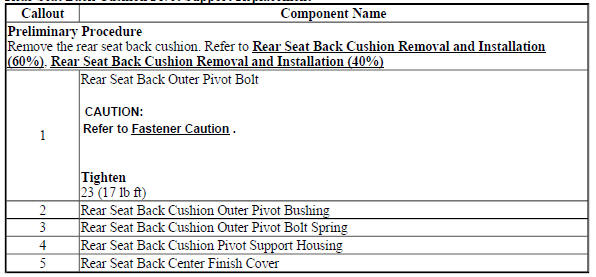

Rear Seat Back Cushion Pivot Support Replacement

Rear Seat Back Cushion Pivot Support Replacement

REAR SEAT CUSHION COVER AND PAD REPLACEMENT (60%)

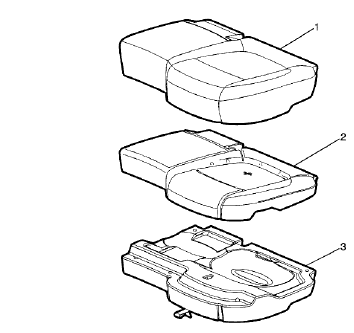

Fig. 30: Rear Seat Cushion Cover And Pad (60%)
Fig. 30: Rear Seat Cushion Cover And Pad (60%)

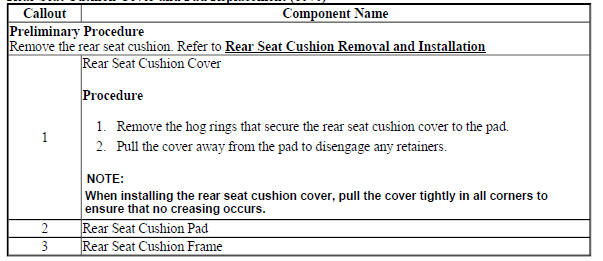

Rear Seat Cushion Cover and Pad Replacement (60%)

Rear Seat Cushion Cover and Pad Replacement (60%)

REAR SEAT CUSHION COVER AND PAD REPLACEMENT (40%)

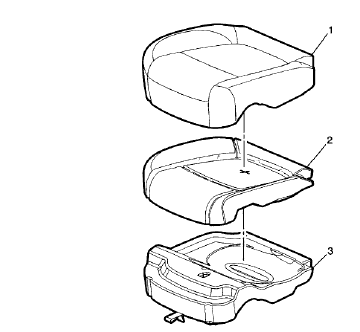

Fig. 31: Rear Seat Cushion Cover And Pad (40%)
Fig. 31: Rear Seat Cushion Cover And Pad (40%)

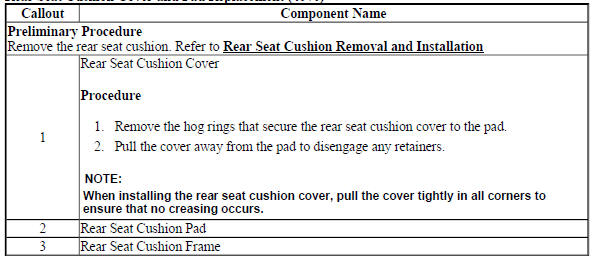

Rear Seat Cushion Cover and Pad Replacement (40%)

Rear Seat Cushion Cover and Pad Replacement (40%)

REAR SEAT CUSHION REMOVAL AND INSTALLATION

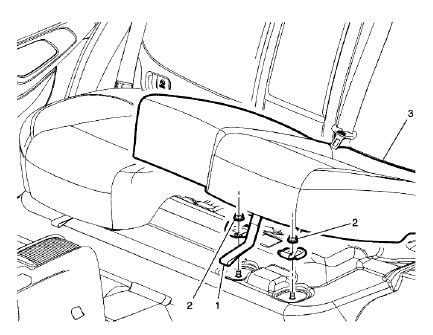

Fig. 32: Rear Seat Cushion
Fig. 32: Rear Seat Cushion

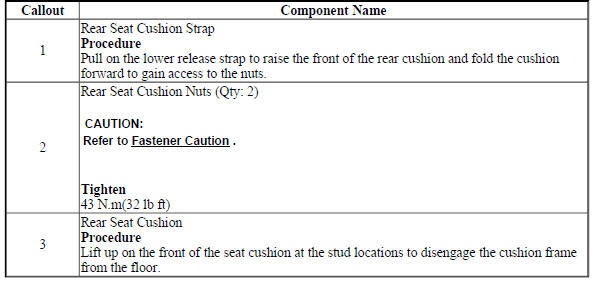

Rear Seat Cushion Removal and Installation

Rear Seat Cushion Removal and Installation

REAR SEAT LATCH REPLACEMENT

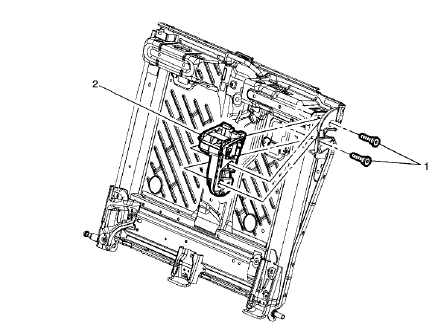

Fig. 33: Rear Seat Latch
Fig. 33: Rear Seat Latch

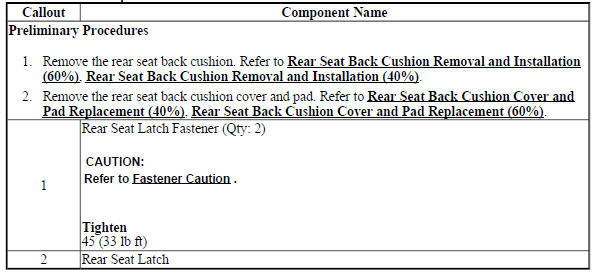

Rear Seat Latch Replacement

Rear Seat Latch Replacement

REAR SEAT BACK CUSHION REMOVAL AND INSTALLATION (60%)

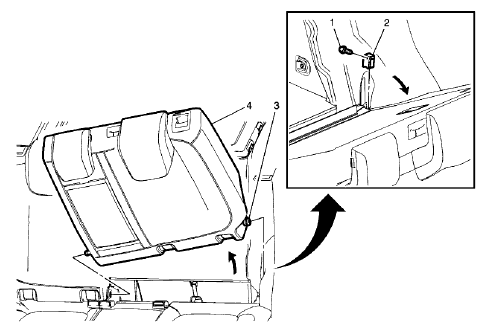

Fig. 34: Rear Seat Back Cushion (60%)
Fig. 34: Rear Seat Back Cushion (60%)

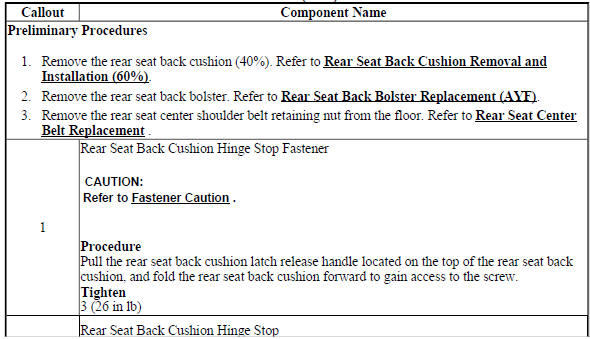

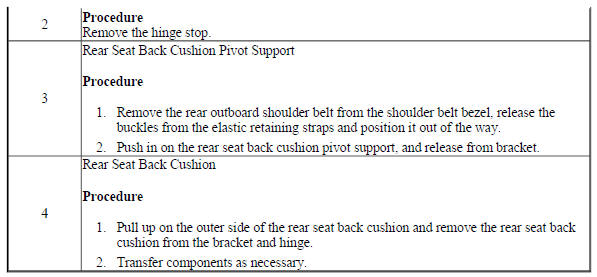

Rear Seat Back Cushion Removal and Installation (60%)

Rear Seat Back Cushion Removal and Installation (60%)

Rear Seat Back Cushion Removal and Installation (60%)

REAR SEAT BACK CUSHION REMOVAL AND INSTALLATION (40%)

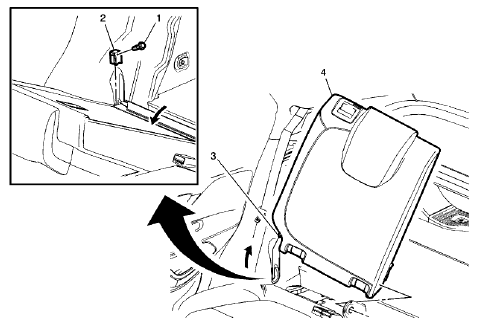

Fig. 35: Rear Seat Back Cushion (40%)
Fig. 35: Rear Seat Back Cushion (40%)

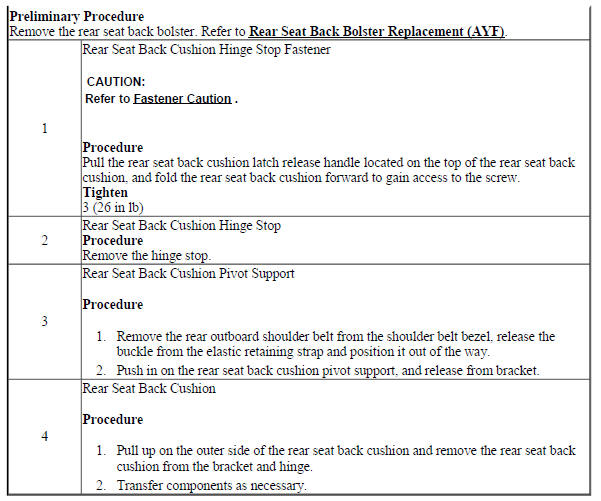

Rear Seat Back Cushion Removal and Installation (40%)

Rear Seat Back Cushion Removal and Installation (40%)

Rear Seat Back Cushion Removal and Installation (40%)

REAR SEAT BELT OPENING BEZEL REPLACEMENT

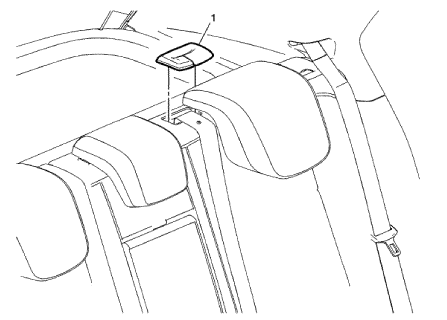

Fig. 36: Rear Seat Belt Opening Bezel
Fig. 36: Rear Seat Belt Opening Bezel

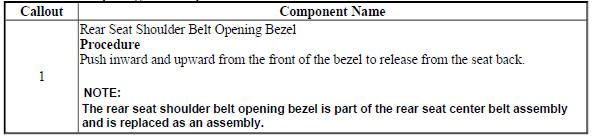

Rear Seat Belt Opening Bezel Replacement

Rear Seat Belt Opening Bezel Replacement
