Chevrolet Trax: Clutch actuator cylinder replacement (M20/M32)
Removal Procedure
- Remove the transmission. Refer to Transmission Replacement
.gif)

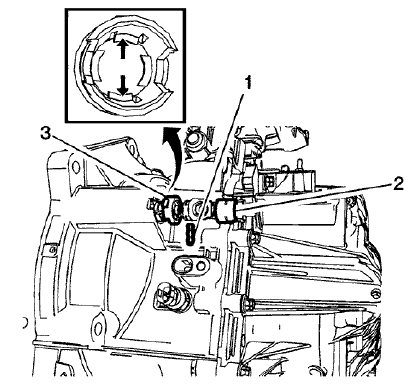

Fig. 70: Clutch Actuator Cylinder Pipe Connector Elbow, Clip And Fastening
Sleeve
- Remove the clutch actuator cylinder pipe connector elbow clip (1) from
the clutch actuator elbow.
- Remove the connector elbow (2) from the clutch actuator cylinder pipe
end.
NOTE: Release the fastening sleeve key (arrows) using a
screwdriver or
equivalent to remove the fastening sleeve.
- Remove the fastening sleeve (3) from the transmission housing and clutch
actuator cylinder pipe.
.gif)

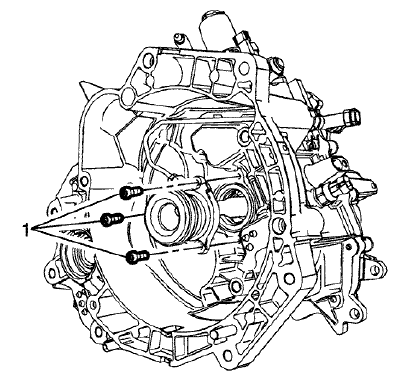

Fig. 71: Clutch Actuator Cylinder Bolts
- Remove the 3 clutch actuator cylinder bolts (1).
.gif)

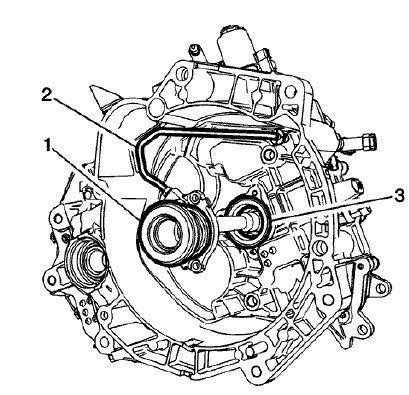

Fig. 72: Clutch Actuator Cylinder, Pipe And Seal
- Remove the clutch actuator cylinder (1) and the clutch actuator cylinder
pipe (2) at the same time.
NOTE: Discard the clutch actuator cylinder seal.
- Remove the seal (3).
Installation Procedure
- Clean the 3 clutch actuator cylinder threaded holes in the transmission
housing.
.gif)

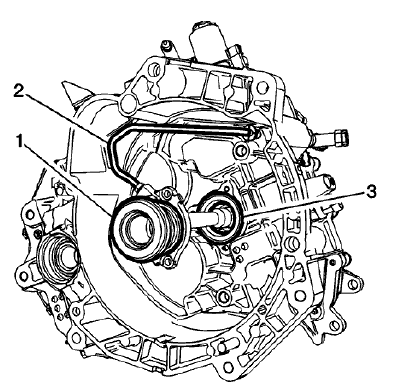

Fig. 73: Clutch Actuator Cylinder, Pipe And Seal
- Install a NEW clutch actuator cylinder seal (3).
- Install the clutch actuator cylinder (1) and clutch actuator cylinder
pipe (2).
.gif)

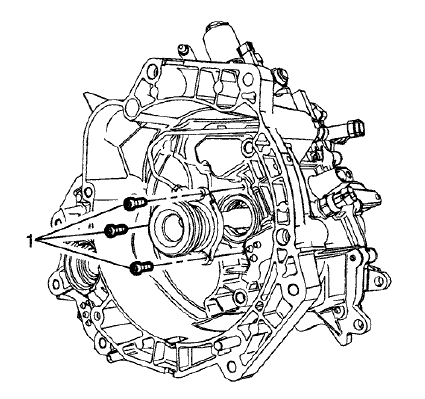

Fig. 74: Clutch Actuator Cylinder Bolts
CAUTION: Refer to Fastener Caution .
- Install the 3 clutch actuator cylinder bolts (1) and tighten to 6 (53 lb
in).
.gif)

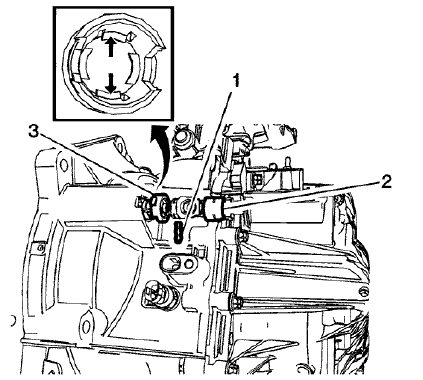

Fig. 75: Clutch Actuator Cylinder Pipe Connector Elbow, Clip And Fastening
Sleeve
- Install the fastening sleeve (3) to the transmission housing and clutch
actuator cylinder pipe.
- Install the clutch actuator cylinder pipe connector elbow (2) to the
clutch actuator cylinder pipe end.
- Install the connector elbow clip (1).
- Install the transmission. Refer to Transmission Replacement .
