Chevrolet Trax: Clutch

Chevrolet Trax (2013-2022) Workshop Manual / Transmission / Clutch

SPECIFICATIONS

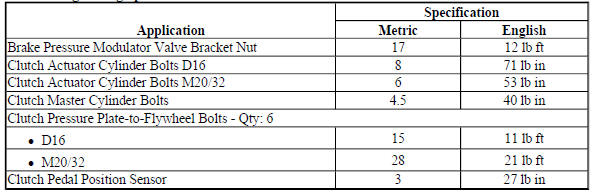

FASTENER TIGHTENING SPECIFICATIONS

Fastener Tightening Specifications

FASTENER TIGHTENING SPECIFICATIONS

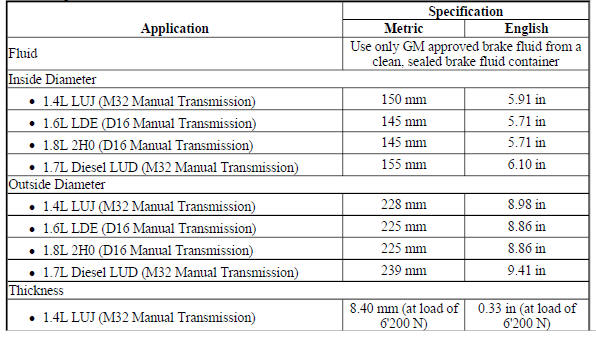

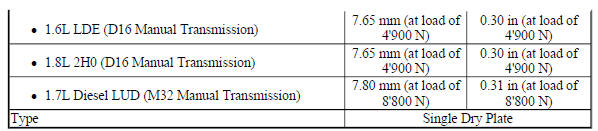

GENERAL SPECIFICATIONS

General Specifications

GENERAL SPECIFICATIONS

GENERAL SPECIFICATIONS

DIAGNOSTIC INFORMATION AND PROCEDURES

SYMPTOMS - CLUTCH

Symptom List

Refer to a symptom diagnostic procedure from the following list in order to diagnose the symptom.

  • Clutch Slipping
  • Clutch Grabbing
  • Clutch Rattle
  • Release Bearing Noisy with Clutch Engaged
  • Clutch Noisy
  • Clutch Pedal Hard to Push.

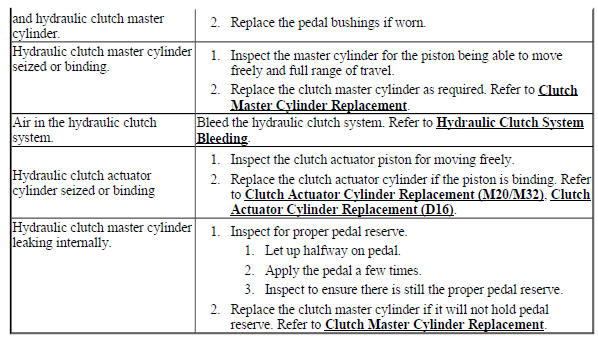

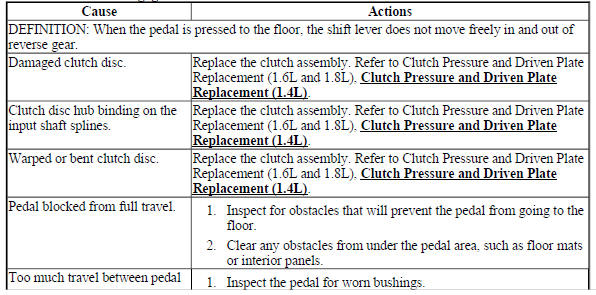

CLUTCH DOES NOT DISENGAGE

Clutch Does Not Disengage

CLUTCH DOES NOT DISENGAGE

CLUTCH DOES NOT DISENGAGE

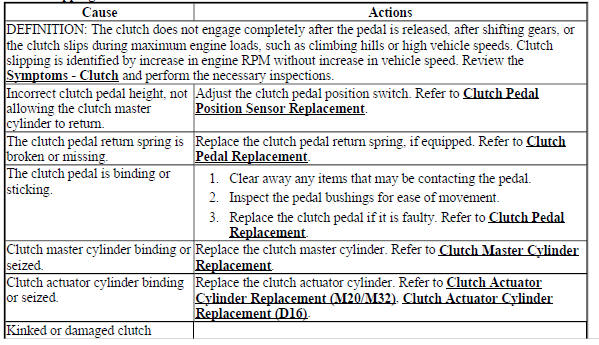

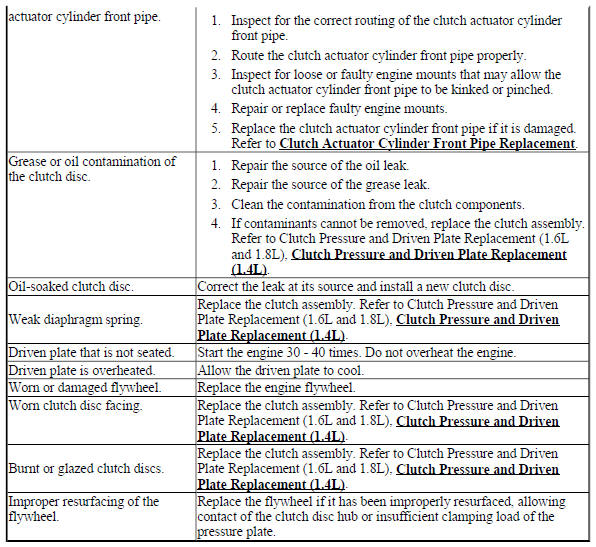

CLUTCH SLIPPING

Clutch Slipping

CLUTCH SLIPPING

CLUTCH SLIPPING

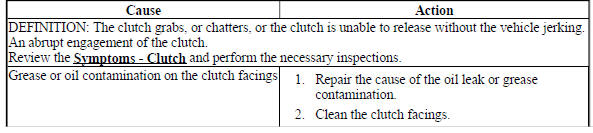

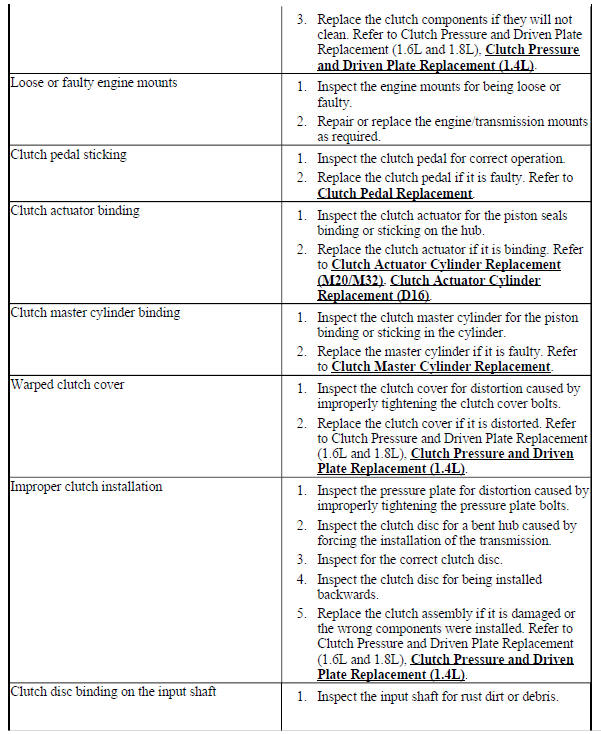

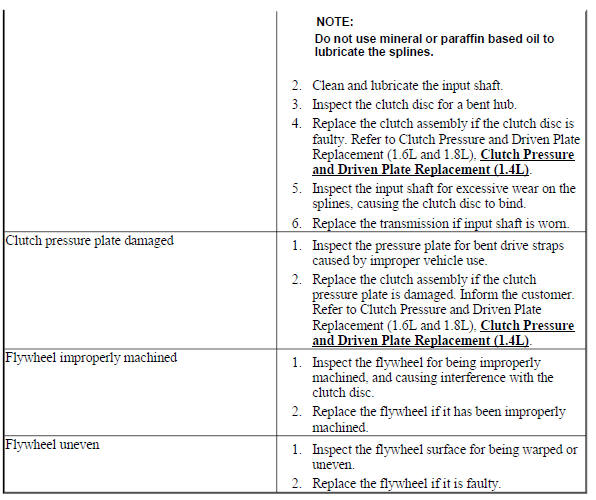

CLUTCH GRABBING

Clutch Grabbing

CLUTCH GRABBING

CLUTCH GRABBING

CLUTCH GRABBING

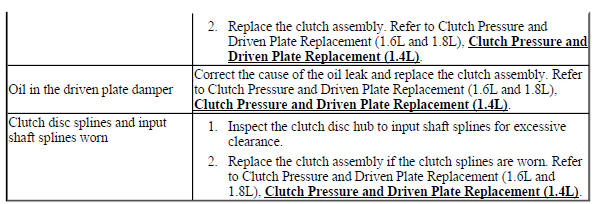

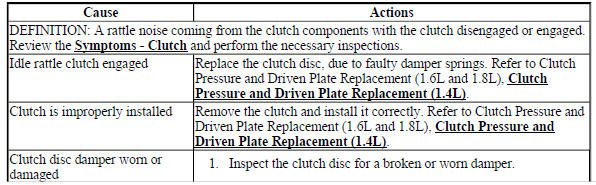

CLUTCH RATTLE

Clutch Rattle

CLUTCH RATTLE

CLUTCH RATTLE

RELEASE BEARING NOISY WITH CLUTCH ENGAGED

Release Bearing Noisy with Clutch Engaged

RELEASE BEARING NOISY WITH CLUTCH ENGAGED

CLUTCH NOISY

Clutch Noisy

CLUTCH NOISY

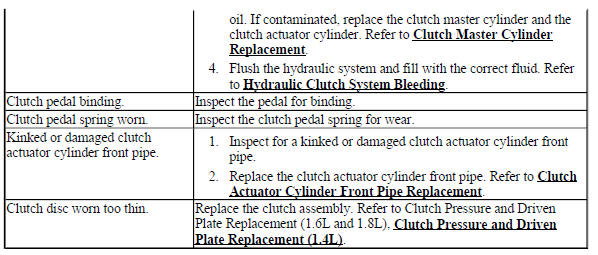

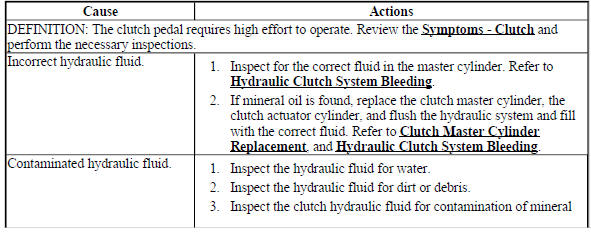

CLUTCH PEDAL HARD TO PUSH

Clutch Pedal Hard to Push

CLUTCH PEDAL HARD TO PUSH

CLUTCH PEDAL HARD TO PUSH
