Chevrolet Trax: Battery Replacement

Chevrolet Trax (2013-2022) Owner's Manual / Keys, Doors, and Windows / Keys and Locks / Remote Keyless Entry (RKE) System Operation / Battery Replacement

The battery is not rechargeable. To replace the battery:

Caution

When replacing the battery, do not touch any of the circuitry on the transmitter. Static from your body could damage the transmitter.

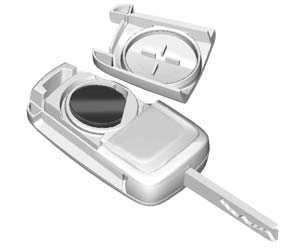

Battery Replacement

  1. Extend the key blade and open the battery cover on the back of the transmitter by prying with a finger.
  2. Remove the used battery by pushing on the battery and sliding it toward the key blade.
  3. Insert the new battery, positive side facing up. Push the battery down until it is held in place.Replace with a CR2032 or equivalent battery.
  4. Snap the battery cover back on to the transmitter.
